The Ultimate Guide to FBE Coated Pipe

With the advantages it brings for pipeline protection and durability, Fusion Bonded Epoxy (FBE) coated pipes indeed prove to be helpful in mitigation. In the oil and gas, construction, and even water transportation industries, the advantages and applications of FBE-coated pipe can be grasped and utilized accordingly. This guide intends to show, in detail, the efficacy of these pipes, why their unique characteristics make them a preferred choice across industries, and more. In this article, you will be able to better understand the workings of FBE coatings, their benefits, and the role they play in building strong, enduring infrastructure. Hold tight as we dive deep into the FBE-coated pipe, discussing its attributes, where it makes your projects highly efficient and dependable.

What is FBE Coating?

FBE-coated pipes are incredibly advantageous for sustaining long-term damage and protecting the pipeline. Knowing the benefits of FBE-coated pipes is essential in construction, oil and gas, and water transportation industries. This guide aims to explain in depth why these pipes are efficient, their remarkable features, and the reasons behind their selection in many sectors. After reading this article, I hope you understand the mechanisms and benefits of FBE coatings and their part in the enduring infrastructure. Stay tuned as we explore everything you need about FBE-coated pipe and how it can enhance your project’s efficiency and reliability.

How FBE Coating is Applied to Steel Pipe

The process of applying Fusion Bonded Epoxy (FBE) coating onto steel pipes has several steps that require attention to detail, with each step having a distinct function in achieving bond adhesion and corrosion protection. The steps of that procedure are highlighted below:

• Surface Preparation

The first preparatory step in this process is cleaning the steel pipe to eliminate any trace of oil, grease, mill scale, or rust. With grit or shot blasting, a profile greater than 50 to 75 microns can be achieved, and as such, it has a surface finish of 2.0 to 3.0 mils. A blast-cleaned steel surface is ideal for successful bonding and proper adhesion, and it ensures the FBE coating firmly attaches to the abrasive surface and becomes a protective shell.

• Pre-heating

Induction or gas-fired furnaces can be used to clean the pipes before preheating, which is done either with induction or gas-fired furnaces, where steel pipes are preheated to 180 to 250 degrees celcius (356 to 482 degrees Fahrenheit). During the application of FBE powder, it should be able to melt and fully adhere, which is the purpose of keeping the FBE powder within this temperature range.

• Application of FBE Powder

Upon reaching the steel pipes’ preheat temperature, electrostatic spraying of the FBE powder can commence. The parts of the steel pipe that are heated will cause the powder to change its state to a more liquid form, guaranteeing a homogenous layer.

• Curing

When heat is applied, the fused epoxy layer undergoes a transformation. A chemical reaction occurs, and the powder is transformed into a cross-linked solid-state material that is quite durable. It is essential for the coating to achieve the appropriate mechanical and chemical resistance characteristics. Curing completely will take anywhere from 60 to 120 seconds, depending on the temperature and specific FBE formulation.

• Inspection

After the coating is applied to the steel pipe, it undergoes a rigorous multi-point inspection to check if all quality standards are attained. Thickness measurements, averaging between 250 and 500 microns, are done, along with adhesion testing and marking of any discontinuities in the coating, known as holiday detection. For other uses, the steel pipe must conform to industry standards such as ISO21809-2 or ASTM standards.

• Cooling

The pipe is coated, and at the last step, it is cooled at room temperature or by water quenching. This guarantees maximum coating setup while preparing for handling, storage, or transportation.

FBE coatings are well known for their effectiveness in protecting steel pipes in moist, chemical, and high-temperature environments. FBE coatings have the potential to withstand up to about 85°C (185°F) in wet conditions, and 150°C (302°F) in dry conditions. In oil, gas, and even water transmission systems, pipelines must endure extreme pressures and temperatures, requiring outstanding adhesion and durability, which FBE coating is known for. FBE powders have recently been improved to permit dual-layer applications, enhancing impact resistance and increasing service life.

What Materials are Used in FBE Coating?

Fusion Bonded Epoxy (FBE) coating is primarily composed of epoxy resin bound with curing agents and additives. It serves a variety of functions to improve the performance of the coating. The most critical parts include:

• Epoxy Resin: This gives the addendum its solid backbone, which comes with great mechanical and chemical endurance. It defaults to being a thermosetting polymer, which guarantees very good adhesion on metal surfaces.
• Curing Agent: Epoxy resin’s amines or other harder parts will chemically react mildly, while cross-linking guarantees curing, thus enhancing the coating’s durability.
• Supplementary components: Mechanisms like pigments, stabilizers, and reinforcing fillers can be implanted in epoxy resin to increase its UV resistance, retentivity of color, scratch resistance, or ease of application.
• Accelerators: These enable curing at a rapid speed, thus ensuring the coating is applied efficiently and promptly, especially in industrial pipeline painting procedures.

Under extreme working conditions, these materials, when mixed and applied by high-temperature spraying or electrostatic methods, achieve a strong and long-lasting protective layer.

Advantages of FBE Coated Pipe

1. Corrosion Resistance: FBE coatings are particularly useful in aggressive pipeline environments since they offer protection against corrosion, which increases the life span of pipelines and facilitates efficient operation.
2. Durability: The coating provides high mechanical protection from abrasions and impacts, which ensures long-term endurance of the coating during transport and installation.
3. Chemical Resistance: FBE coatings protect pipes from damage that may arise from being exposed to different kinds of chemicals, making them appropriate for multiple industries.
4. Compliance with Regulations: These coatings are known for their reliable and persistent performance as they meet the industrial requirements that define high-performance standards.
5. Lower Emission: FBE uses no solvents and thus reduces the impact on the environment during application. This information helps the coatings be perceived as greener.

How Does FBE Provide Corrosion Protection?

Fusion Bonded Epoxy (FBE) provides exceptional adhesion and durability, protecting against corrosion. When applied to metal surfaces, FBE provides a molten, non-membrane, obstructive coating that mitigates the ingress of moisture, oxygen, and corrosive chemicals from access to the substrate. This barrier markedly contains oxidation and rusting. The FBE coating process involves scribing the metal surface and feeding a powder epoxy resin to a flame, which aligns to form a cohesive and gap-free band. Recent studies add value to the thermal extremes, pressure, and other stressors FBE can sustain, proving the ongoing security it provides for pipelines and structures. FBE meets the endurance requirements due to its high dielectric strength, making it particularly vulnerable and resistant to cracking. Thus, it reinforces its protection from corrosion, making FBE one of the trusted answers in the oil and gas, water distribution, and infrastructure industries.

Benefits of Using FBE Over Other Coatings

• Exceptional Protection Against Corrosion

FBE cannot be affected by corrosion due to its powerful protective layer, which bonds to surfaces. It minimizes chemical and environmental damage; hence, it is used in tough conditions in the oil and gas industry.

• Enhanced Strength

FBE’s resistance to cracks, abrasions, and other forms of mechanical damage is far greater than that of other coatings. These factors ensure better service life for structures under intense pressure and extreme temperatures.

• Eco-Friendly

Emissions of volatile organic compounds (VOCs) into the air are minimal because no harmful solvents are used to apply FBE coatings, making them a better option than traditional solvent-based coatings.

• Lower Costs

Although the initial application may require specialized equipment, the long-term savings justify the investment in FBE. Other coatings need constant reapplications, while FBE does not, making it more efficient.

• High Electrical Insulation

FBE coatings’ superb insulating properties reduce the chances of any electrochemical reaction that can cause surface degradation. This is beneficial for pipeline cathodic protection applications as well.

Differences Between 3PE and FBE Coating

• Layers and Composition:

Coating 3PE (Three-Layer Polyethylene) has three separate layers: epoxy primer, adhesive, and polyethylene topcoat. In contrast, FBE (Fusion-Bonded Epoxy) is a single-layer coating made entirely of epoxy.

• Application Purpose:

Buried or submerged pipelines require long-term protection against moisture and soil stresses. These are best suited for 3PE. FBE is best suited for environments that require above-ground pipelines, where excellent adhesion and resistance to corrosive soil are essential.

• Flexibility:

Due to their increased flexibility, 3PE coatings are better suited for pipelines that tend to move or bend. Bending or movement in pipelines is covered under durability, so these are termed largely inflexible.

• Durability:

FBE offers strong corrosion resistance, but if we consider mechanical impacts, 3PE provides better protection due to its outer layer. The need for security makes 3PE favored due to the impacts on mechanical systems encased in polyethylene.

• Temperature Resistance:

With a low thermal resistance layer of polyethylene, 3PE performs relatively poorly under high temperature conditions compared to its counterparts.

These cover the differences among all 3PE and FBE features. Knowing these differences can help tailor coat selection to project requirements and environmental conditions.

What Makes FBE Coating Different from 3PE?

The differences between Fusion-Bonded Epoxy (FBE) and Three-Layer Polyethylene (3PE) coatings lie in their structure, use, and performance. 3PE is an advanced protective coating comprised of three layers—epoxy, adhesive, and polyethylene—while FBE is a single-layer epoxy coating.

Parameter	FBE Coating	3PE Coating
Layers	Single-layer	Three-layer
Composition	Epoxy	Epoxy, adhesive, PE
Corrosion	Moderate	High resistance
Durability	Moderate	Superior
Application	Internal/external	External only
Impact	Lower resistance	High resistance
Temperature	Moderate range	Wider range

Performance Comparison of FBE and 3PE Coated Pipes

FBE and 3PE coated pipes are distinct in durability, impact resistance, temperature range, and corrosion resistance, with FBE having less. 3PE-coated pipes outperform FBE pipes in all aspects.

Parameter	FBE Coated Pipe	3PE Coated Pipe
Corrosion	Moderate	High resistance
Durability	Moderate	Superior
Impact	Lower resistance	High resistance
Temperature	Moderate range	Wider range
Flexibility	Limited	High
Application	Internal/external	External only
Cost	Lower	Higher

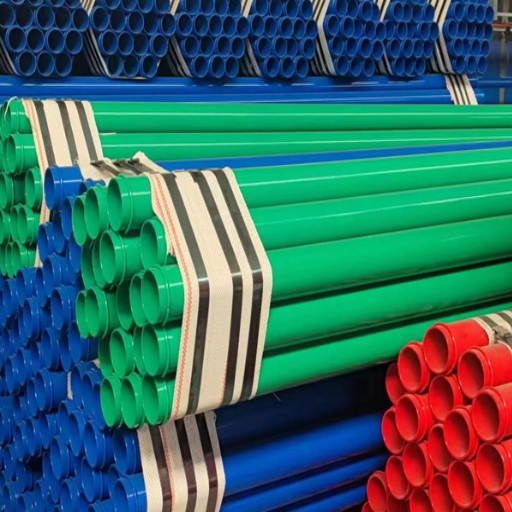

Types of Pipes Suitable for FBE Coating

Carbon Steel Pipe and FBE Coating

FBE (Fusion Bonded Epoxy) coating is a reliable technique for improving the endurance and functionality of carbon steel pipes. This coating is still preferred and selected because of its strong bonding and high resistance to corrosion, abrasion, and chemical attacks. FBE coating extends the service life of pipelines serving the oil, gas, water transmission, and wastewater industries.

Recent studies have revealed one striking feature of FBE coatings: their friendly impact on the environment. FBE is devoid of VOCs, which is in line with modern sustainability initiatives and regulatory policies. In addition to the bond’s impact, the outer coating sufficiently protects the inherent strength of carbon steel pipelines, ensuring that these pipes can withstand harsh weather while keeping their structural integrity. Thus, carbon steel pipes with FBE coating become dependable and affordable for different purposes.

Application Scenarios for FBE vs 3PE

FBE works best under moderate internal and external conditions, while 3PE is more suited for harsh external environments and underground settings.

Parameter	FBE Coating	3PE Coating
Environment	Moderate	Harsh
Location	Internal/external	External only
Underground	Limited use	Preferred
Corrosion	Moderate risk	High resistance
Pipeline	Water, gas	Oil, gas, water
Temperature	Moderate range	Wider range

Reference Sources

1. “The Study on Double Heating Effect of FBE Coated Internal Girth Welds in Line Pipes” (Chi & Alrudayni, 2025)

Key Findings:

• Nearly all girth weld coating applications are executed in the field after joining pipes, which can lead to coating defects during construction.
• This study simulated re-coating conditions such as double heating of external field girth welds. It evaluated coating performance to verify the heat effect on existing internal FBE (Fusion Bonded Epoxy) coating.

Methodology:

• The authors simulated re-coating conditions and evaluated the coating performance to verify the heat effect on the existing internal FBE coating.

2. “Numerical investigation of the propagation characteristics of shear horizontal guided wave modes in coated pipes” (Nascimento et al., 2021, pp. 1–4)

Key Findings:

• The presence of a coating layer can significantly alter the propagation characteristics of shear horizontal (SH) guided wave modes in pipes.
• At the high-frequency-thickness regime, the quasi-SH0 mode at 10 mm wavelength and the quasi-SH1 mode at 20 mm wavelength presented low attenuation, making them suitable for inspecting coated pipes.
• Operating at the low-frequency-thickness regime was prevented due to high attenuation of the quasi-SHO mode.

Methodology:

• The authors used a semi-analytical model to calculate the dispersion and attenuation curves, and a finite element numerical model to investigate the propagating modes in a coated pipe.

3. “Efficacy of refrigerants in thin metallic coated wickless heat pipes – A comparative study” (Senthilkumar et al., 2023, pp. 1273–1285)

Key Findings:

• The coated wickless heat pipe at 45° inclination had improved thermal performance compared to the uncoated one.
• R600a was identified as a good working fluid due to its favorable thermophysical properties, resulting in low thermal resistance and improved heat transfer coefficients.

Methodology:

• Using different refrigerants, the authors investigated the influence of fluid fill ratio, position, and heat inputs on the thermal performance of coated and uncoated wickless heat pipes.

4. FBE Coated Pipe Supplier In China

Frequently Asked Questions (FAQs)

Q: What is FBE-coated pipe?

A: FBE-coated pipe, or fusion-bonded epoxy-coated pipe, is a type of pipeline coated with a thermosetting resin to provide anti-corrosion protection. This coating is applied to the steel surface before the pipe is used for various applications.

Q: How does the coating application process work for epoxy-coated pipe?

A: The coating application process involves cleaning the steel surface and applying epoxy powder using electrostatic spray or fluidized bed dipping. The coated pipe is then heated to cure the epoxy, forming a strong adhesion that protects against corrosion.

Q: What are the advantages of using epoxy-coated steel pipes?

A: Epoxy-coated steel pipes offer several advantages, including excellent anti-corrosion properties, strong adhesion to the steel surface, and durability. They are also resistant to chemicals and provide a long service life, making them ideal for various pipeline applications.

Q: Can FBE-coated pipes be welded?

A: FBE-coated pipes can be welded, but the coating must be removed from the area to be welded. This ensures proper weld penetration and maintains the pipeline’s integrity.

Q: What is the difference between FBE and other types of coatings, like powder coating?

A: The main difference lies in their composition and application. FBE coatings are thermosetting epoxy resins that bond firmly to the steel surface, while powder coatings are typically used as dry powder and require curing to form a solid film. FBE coatings are designed explicitly for anti-corrosion and adhesion purposes.

Q: Are there different types of FBE coatings available?

A: Yes, there are different types of FBE coatings, including external FBE for outdoor applications and internal FBE for pipelines carrying fluids. Coating thickness and formulation variations can be tailored to specific environmental conditions and requirements.

Q: What materials are commonly used for making alloy steel pipes?

A: Alloy steel pipes are commonly made from a combination of iron and other alloying elements like chromium, nickel, and molybdenum. These materials enhance the mechanical properties and resistance to corrosion and wear, making them suitable for high-pressure applications.

Q: How thick is the coating on an epoxy-coated carbon steel pipe?

A: The coating thickness on an epoxy-coated carbon steel pipe can vary depending on the application and specifications, but it typically ranges from 10 to 20 mils (0.25 to 0.5 mm). This thickness ensures adequate protection against corrosion and mechanical damage.

Q: What role do pipe fittings play in the use of FBE-coated pipes?

A: Pipe fittings are crucial in pipeline assembly, connecting different sections of FBE-coated pipes. These fittings must also possess anti-corrosion properties to maintain the integrity of the entire pipeline system.

Q: Why is it important to choose the right coating system for steel plates?

A: Choosing the right coating system for steel plates is vital to ensure long-term protection against environmental factors, corrosion, and mechanical stress. The right system will enhance durability and performance, ultimately extending the lifespan of the pipeline or structure.
