ERW Pipe
Welded Pipe Is Formed By High-Frequency Resistance Welding Of Steel Coils.
The Weld Seam Material Is The Same As The Base Material, Which Ensures The Overall Performance Of The Welded Pipe.
The Maximum Diameter Of The Welded Pipe Is 24 Inches, And Its Main Material Is ASTM A53 And API Series Material.
Welded Pipe Is A Cost-Effective Product For Oil Transportation And Is Often Used In Conjunction With 3LPE Corrosion Protection.
Recommended Products By Balingsteel
-
ASTM A53 GRB Welded Pipe
Wide Size Range
Balingsteel Can Offer a Wide Range of Welded Steel Pipe Sizes Such as 1/2-18, 18-26,26-48 Inches. Lengths Can Be Produced in Normal 6 Meters, 12 Meters, and Special 16 Meters and 18 Meters.
Meanwhile, Balingsteel Offers a Large Stock of ERW Welded Pipes.
If You Are Struggling with the Size of Your Welded Pipe, Please Feel Free to Contact Us for Your Solution!
High Quality ERW Pipe
Balingsteel Produces Welded Steel Pipes in Accordance with ASTM, API, FM, GB, And EN Certification Systems.
Meanwhile, There Are 3 Re-Inspection Inspection Procedures at the Weld Seam to Ensure the Quality of Your ERW Steel Pipe.
Balingsteel Is Your High-Quality Welded Pipe Supplier.
Enriched Services
Balingsteel Can Provide Various Services Such as Laser Cutting, FBE Coating,3LPE Coating,Saw Cutting, Flame Cutting, Beveling, Grooving, Shot Peening, Threaded Pipe End, Flanged Pipe End Welding and Hot-Dip Galvanizing for Your ERW Steel Pipe.
If You Need These Services While Purchasing Your ERW Tubes, Don’t Hesitate To Contact Us!
Approved manufacturers
Balingsteel Is Not Only a Supplier of Chinese Welded Steel Pipe but Also a Partner of the World’s Best Welded Steel Pipe, The Following Are the Partners from All over the World.
JFE Steel—Japan
JFE Steel Corporation Is an Excellent Supplier of Welded Steel Pipes in Japan.
Tata Steel UK—UK
Tata Steel UK Is the European Benchmark for Welded Steel Tubes and Balingsteel Has a Long Standing Relationship with Them.
Hyundai Steel—South Korea
Hyundai Steel Co., Ltd, Or HSC Is A steel-making Company Headquartered In Incheon and Seoul, South Korea, And a Member of The Hyundai Motor Group.
ERW Pipe VS EFW Pipe
Balingsteel Can Produce High-Quality ERW and EFW Steel Pipes.
ERW Steel Pipe
Electric Resistance Welding Pipe
ERW Pipes Are Pressure Welded Without Filler Metal.
- The Weld Has No Other Components
- The Properties of the Weld Are Identical to the Base Metal
EFW Steel Pipe
Electric Fusion Welding Pipe
EFW Tubes Are Welded with Added Metal
- No Welding with Metal Filler
- Welding with Inert Gas Protection
Data Sheet
- Manufacturing Process
- Chemical Composition & Mechanical Properties
Manufacturing Process of ERW Pipe
- Unwinding: Unwind the Steel Coil into the Strip.
- Slitting: Cutting the Strip Coil to Size to Ensure the Quality and Shape of the Strip.
- Loading Inspection: Check Whether the Steel Number or Grade and Specification of the Narrow Strip Steel Meet the Requirements of the Contract.
- Shear Butt Welding: Ensure That the Burrs of the Narrow Strip Steel Are in the Right Direction and That Proper Weld Openings Are Left When Butt Welding.
- Live Jacket Storage: Use the Pinch Roller or Storage Disk to Rotate and Roll the Strip into the Disk.
- Extrusion Molding: Adjust the Amount of W-Roll Under Pressure to Ensure the Quality of Molding and the Symmetry of the Weld.

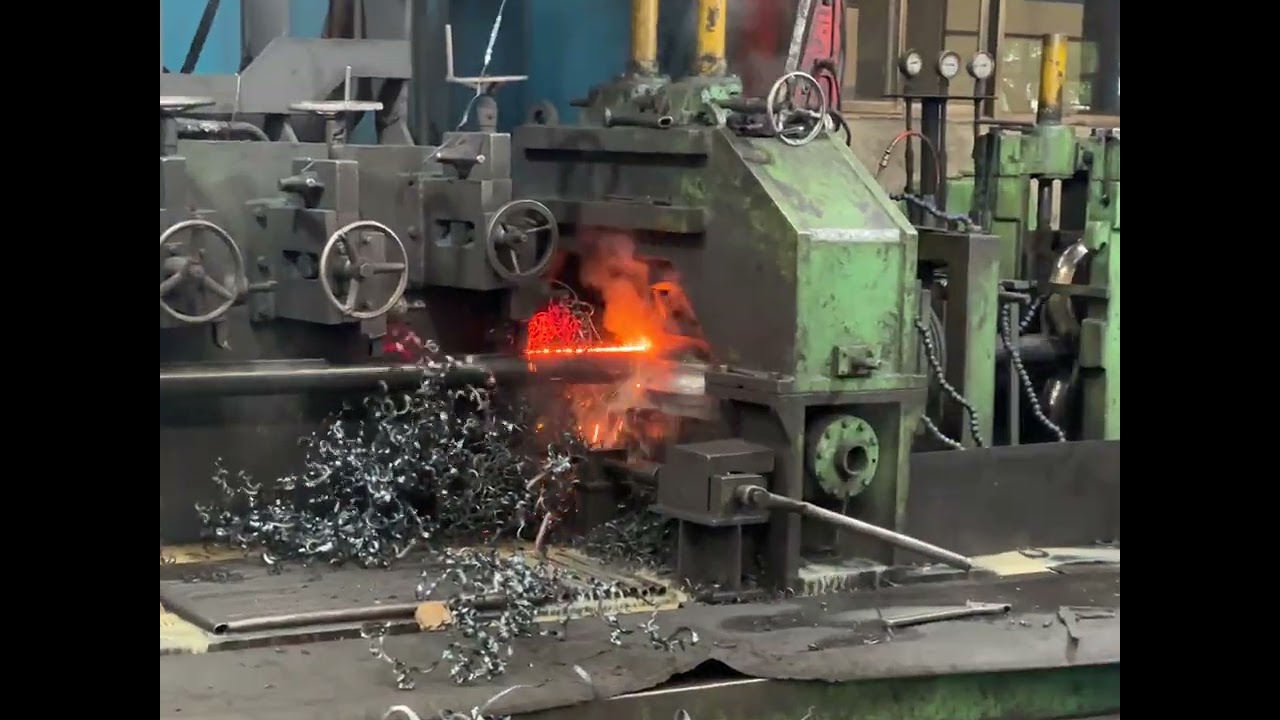

- High-Frequency Welding: Use High-Frequency Welding Technology to Connect the Strips to Ensure the Stability of Weld Quality.
- Deburring: Remove Internal and External Burrs to Ensure Smooth and Clean Weld Seam.
- Cooling: Cooling Treatment for the Pipe Billet After Welding.
- Flaw Detection: Carry out Internal and External Non-destructive Flaw Detection to Ensure the Quality of Welding.
- Sizing and Straightening: Adjust the Size and Shape of the Billet to Make Sure It Meets the Standard.
- Final Inspection: Conduct Final Inspection on the Length, Appearance, and Performance of the Steel Pipe.
- Packing: Pack the Finished Products to Prevent Damage.
- Storage: Store the Qualified Steel Pipes for Sale or Further Processing.
Chemical Composition & Mechanical Properties
The Main Difference Between Welded Pipe and Seamless Pipe Is That the Molding Method Is Different, Welded Pipe Is Formed by Coil Welding, Seamless Pipe Is Formed by Perforating and Hot Rolling of Steel Rods, And There Is No Weld Seam in Seamless Pipe.
ERW Steel Pipe Is Used in Various Industries, Such as Housing Support, Scaffolding Construction, Fire-Fighting Pipelines, Liquid Pipelines, Oil and Gas Pipelines and so On.
The Meter Weight of ERW Is Calculated in the Same Way as for Seamless Tubes:[Outer Diameter – Wall Thickness] X Wall Thickness X 0.02466 = Weight per Meter (Kg). If You Need to Know the Detailed ERW Pipe Weight Chart, Please Contact Us.

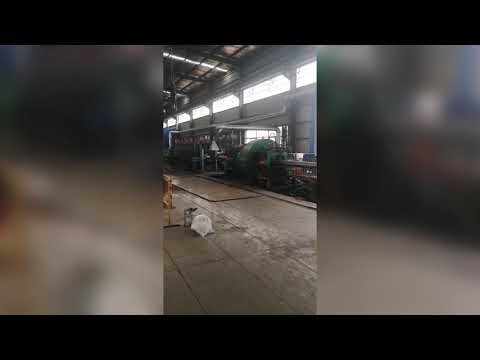

Manufacturing Process Photo Chart for ERW Pipe
