Seamless pipes are critical in construction, energy, manufacturing, and even in transportation. Unlike welded pipes, which are made using joints or seams, seamless pipes are made without any seams at all. Thus offering strength, durability, and reliability under severe pressure and challenging situations. This comprehensive guide is designed to equip you with knowledge on why piping is done a certain way, the different types of piping, and the differences between each type, as well as the vast uses of piping. For the experts in the field arming themselves with sophisticated knowledge, or the inquisitive minds of the industrial world, you will be empowered by this information to equip yourself for strategic decisions. Keep reading this article to understand why seamless pipes are the go-to option for complex projects, as well as how they support modern innovation and infrastructure.
What is a Seamless Pipe?

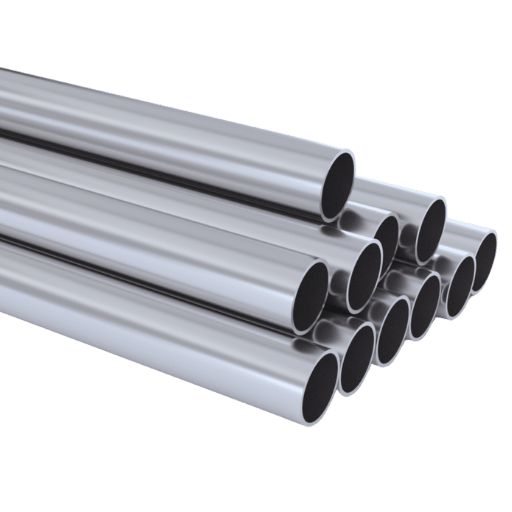

A seamless pipe is a pipe made from a solid billet of steel or metal that doesn’t have any welds or joints, maintaining a constant structure throughout its length. The process of manufacturing this type of pipe involves forcing a solid billet through a die, which is more effective than welded pipes that have weak spots due to their numerous vulnerabilities. This results in the formation of a pipe that possesses high strength, durability, and the ability to withstand pressure. Such qualities make it suitable for use in industries that operate in extreme conditions, such as oil, gas, and chemical processing.
Understanding the manufacturing process
The manufacturing process of seamless pipes starts with a solid cylindrical billet, which is heated to a high temperature. The solid billet is then pierced using a mandrel to form a hollow tube, which is further elongated to achieve the required shape through rolling or extrusion. Since there is no requirement for welding, this technique ensures that there is no seam from start to finish. A pipe produced through this method is stronger and better able to withstand pressure, making it ideal for use in extreme industrial applications.
Key types of pipe material used
- Steel: Commonly used because of its strength, durability, and ability to withstand high pressure and temperature. Common types are carbon steel, stainless steel, and alloy steel.
- Copper: Noted for its high resistance to corrosion and excellent thermal conductivity. Useful in plumbing and heating.
- PVC (Polyvinyl Chloride): Lightweight and low cost. Non-corrosive, hence PVC is suitable for water supply and drainage systems.
- HDPE (High Density Polyethylene): Flexible and non-corrosive, making it an industrial and underground piping choice.
- Cast Iron: Strong and durable. Used in sewage and drainage, but not so much today because there have been advancements in seamless pipe technology that is produced to high standards.
The role of steel pipe in seamless manufacturing
Due to their versatility, strength, and ability to endure high-pressure environments, steel pipes have an invaluable role in seamless manufacturing. They find use in various industries, such as oil and gas, power generation, and construction, where durability and precision are key priorities. The seamless design removes any weak points that might result in inconsistent performance under challenging conditions. Steel pipes are also highly sustainable and dependable for manufacturing, as they can be recycled and have a long lifespan.
How is a Seamless Steel Pipe Manufactured?
Step-by-step seamless manufacturing process
- Preparation of Raw Materials: Before producing seamless steel pipes, the steel billets or bars are checked to ensure they are of high quality.
- Heating: To prepare the steel for ponghe processing, the billet needs to undergo further heating in a furnace, and this must be done at a specific temperature.
- Piercing: Central cavities are formed into the heated billets by gouging the entire media using passes to the gauges and revolving cadre.
- Elongation: The rolling or pulling process is performed on the perforated tube to lengthen it to the required length and the needed wall thickness.
- Cutting to Length and Marking: The internal and external diameter size lists actions with a maximum degree of roughness, cylindrical, compared to others, to control measured parameters and provide an ideal grade.
- Cooling: The structure becomes stable after the pipes are quenched either in air or water, which cools the formed steel pipes.
- Finishing: The design and quality regulations were developed so that the intersections could be straightened and surfaces for treatment.
- Inspection and Testing: The last step checks the dimensions of measured pieces, Gulf area rows, and ultrasonic screening intervals to ensure the pipe is correctly placed on the seals, with the shut-off rings, and evaluates opening requirements.
Importance of piercing through the center in production
The operation of piercing through the center is crucial in production because it ensures that the internal diameter and wall thickness of the pipe are uniform. This step is required for seamless pipes as these pipes need a uniform structure to provide the strength necessary to withstand pressures and temperatures in various applications. Accurate piercing of the center results in improved dimensional accuracy and structural integrity, which helps meet the industry’s strict standards and enhances the product’s performance.
Differences between seamless and welded pipe manufacturing
To manufacture seamless pipes, a solid billet is heated, and a piercing operation creates a hollow tube free of any joints or welds. This method yields a uniform structure and greater strength, making it suitable for high-pressure and high-temperature environments.
Welded pipes, as opposed to seamless ones, are made from flat steel sheets or coils that are rolled and welded along their length. While this approach is cheaper, the seam weld is weaker, which makes this method suitable only for lower-pressure applications.
What are the Advantages of Seamless and Welded Pipe?
Benefits of using seamless steel pipe
Seamless steel pipes offer numerous benefits in areas where strength, durability, and reliability are crucial. One of the significant benefits is the ability to withstand higher pressures due to the lack of a weld seam, which is a fundamental weakness. These properties make seamless pipes exceptionally ideal for critical applications such as gas pipelines, oil refineries, and even nuclear power plants.
Another essential benefit of seamless steel pipes is their uniform strength and structure. Their uniformity begins while producing seamless pipes, which is done through continuous extrusion as the steel structure is both homogeneous and consistent. This uniformity and homogeneity provide better resistance to corrosion and cracking under stress, which is crucial for applications in harsh environments.
Furthermore, seamless pipes offer improved accuracy of dimensions along with smoother internal surfaces, which reduces friction loss when transporting fluids and gases. Industry Statistics indicate that seamless pipes can achieve a surface roughness of less than 1% of their diameter, making them highly efficient in preserving flow dynamics.
This unique combination of seamless steel pipes’ optimal strength, precision, and dependability makes them favored for high-performance industrial applications, even in hostile operating conditions.
Comparing seamless and welded steel
Seamless steel is made without any seams or welding, which makes its construction uniform and quite durable. It is known to withstand strength, pressure, and extreme conditions.
Welded steel, by contrast, is made by rolling and welding metal sheets or strips, leaving a visible weld seam. While it is economical and works for many uses, its seam can be a weak point under high pressure or load.
Seamless steel is preferred for high-critical applications that require the best-in-class performance and reliability. On the other hand, welded steel is better for moderate operational needs because they are cheaper and easier to obtain.
Applications in the oil and gas industry
Welded steel is widely used in the oil and gas industry for pipelines, structural components, and storage vessels. Its low cost and ease of fabrication make welded steel suitable for transporting fluids and gases under low to moderate pressures. Besides that, welded steel is also used in building offshore platforms and refineries where strength and easy access are essential. However, for ground applications with high pressure or harsher surrounding conditions, seamless steel may still be used due to its superior strength.
What are the Key Specifications of Seamless Carbon Steel Pipe?
Understanding wall thickness and its significance
The wall thickness in seamless carbon steel pipes impacts their performance, longevity, and range of applications. This specification is crucial for industrial operations. Seamless carbon steel pipes have different thicknesses for various uses. The thickness of the pipe helps determine the strain it can withstand, such as internal pressure, external loads, and temperature changes.
For instance, in oil and gas transmission lines, thicker-walled pipes are needed because they are required in high-pressure environments. On the opposite end of the spectrum, the automotive and aerospace industries tend to focus on using thinner pipes, as their lightweight nature helps reduce the overall weight of the equipment.
Standardized classifications, such as ASTM A106 and ASTM A53, established by the American Society for Testing and Materials (ASTM), now include wall thickness criteria that meet industry needs. Pipes are often categorized by “Schedules” from Schedule 10 (thin wall) to Schedule 160 (thick wall), with each schedule having defined temperature and pressure limits. For example, a 4-inch nominal-sized Schedule 40 seamless steel pipe has a wall thickness of 0.237 inches, making it capable of withstanding moderate pressure.
Choosing wall thickness correctly also guarantees compliance with safety and industry standards while maintaining cost efficiency. The trade-off between mechanical strength and material consumption makes understanding wall thickness critical for engineers and other stakeholders involved in the design and operation of piping systems.
Common specification standards
To ensure the proper safety, reliability, and compatibility of piping systems, several key standards have been established. Below are some of the most widely acknowledged:
- ASME B31.3 (Process Piping): Concentrates on the operation and testing of piping along with other processes within the chemical plant and refining piping.
- ASTM International Standards: Gives material specifications like ASTM A106, which covers seamless carbon steel pipes in high-temperature regions.
- API Standards (American Petroleum Institute): Cover the rest of the piping systems in the oil and gas industry, particularly API 5L, which specifies line pipes.
- ISO 9001 (Quality Management Systems): Deals with the checks made to ensure quality productivity during the development and manufacturing of piping parts.
Meeting the requirements outlined in the standards above is crucial for achieving regulatory needs, sustaining system integrity, and optimizing performance for specific applications.
Corrosion resistance in seamless carbon steel
Seamless carbon steel has different levels of corrosion resistance for every combination of step, composition, environment, and surface treatment. Standard carbon steel undergoes oxidation and rust formation in humid and corrosive environments. Corroding environments are distressing, but coating or alloying can significantly enhance durability.
The addition of alloying elements, such as chromium, molybdenum, and nickel, improves corrosion resistance. The stainless steel example refers to 1-1.5% chromium, which forms a protective moisture barrier, thereby increasing oxidative resistance. Utilization of molybdenum within small amounts (0.2-0.5%) enhances the resistance to pitting and crevice corrosion, especially in chloride-pocked environments.
Data from corrosion testing indicates that carbon steel pipes with protective coatings, such as epoxy or polyethylene layers, have a service life of 10 to 15 years in moderately corrosive environments. The implementation of cathodic protection also minimizes the rate of electrochemical reaction, thus extending the system’s life.
Corrosion can be minimized on both ERW and seamless pipes by performing routine maintenance procedures, such as checking, cleaning, and applying inhibitors as needed. This is why seamless carbon steel can be used in a diverse manner for components such as piping in the oil and gas industry, as it requires controlled corrosion resistance. For some specific applications, additional alloying elements and special surface treatments are more effective in providing these factors.
How Does the Difference Between Seamless and Welded Influence Pipe Selection?
Choosing based on pipe material and application
When choosing between seamless and welded pipes, give particular attention to the application’s purpose and material properties. Since seamless pipes have no weld seams, which could serve as potential weak points, they are often favored in high-pressure applications as well as in environments that require exacting strength and uniformity. In contrast, welded pipes are economical and suitable for low-pressure applications as long as the welding is done to operational standards. Weighing factors such as pressure ratings, temperature limits, and potential for corrosion can help determine the best option between seamless and welded pipe, making a better-informed decision. From the perspective of modern industry, both options provide specific benefits that can be tailored to the operational constraints and industry standards.
Assessing high-temperature needs
When considering high-temperature requirements, give preference to materials with a proven history of thermal resistance and stability for long-term exposure. The stainless steel alloys 310S or 316 are often used because they do not degrade significantly over time at elevated temperatures. Also, consider adding thermal insulation for operational efficiency and safety. Check the materials for compliance with industry standards and other relevant legal documents regarding the use of materials in high-temperature environments. Active surveillance and routine maintenance procedures must be conducted to mitigate thermal stress and related wear over time.
Welded versus seamless in-line pipe utilities
Welded and seamless pipes have their own set of pros and cons, which vary depending on their application. Welded pipes tend to be cheaper and more readily available in larger diameters, which makes them useful in many applications with moderate pressure ratings. Conversely, seamless pipes, which are not welded, offer higher strength and better uniformity, making them best suited for high-pressure and high-temperature applications, as well as critical use. The decision on which pipe to use should consider the operational requirements, the pressure and temperature of the environment, and budgetary limitations.
Frequently Asked Questions (FAQs)
Q: What is a seamless stainless steel pipe?
A: A stainless steel pipe is one of the several types of pipes made from solid steel alloy billets that undergo different manufacturing processes, and its distinguishing feature is the lack of a weld seam. A seamless pipe is stronger and can endure more significant pressure than a welded one. A common power generation company and refinery, among many others, seamlessly use pipes for the high strength and reliability they provide.
Q: How does a seamless pipe differ from an electric resistance welded (ERW) pipe?
A: The significant difference between seamless and ERW pipes is in production. Seamless pipes start as solid steel castings or billets that are heated up and shaped into a cylinder, while ERW pipes are made by bending steel plates into a pipe and joining the edges with a weld. Consequently, seamless pipe has no weld and ERW pipe has a weld, which determines the strength and pressure tolerance of the pipes.
Q: What are the sectors of industry that utilize welded and seamless pipes?
A: Like all pipes, welded and seamless pipes have different applications across all Industries. Seamless pipes are generally employed for power and process piping in power generation and refineries because those applications often require high pressure and heat. Welded pipes, including ERW, are used for lower-pressure applications and are wider for transporting water, gas, and other fluids, due to their economical price and higher availability in larger diameters.
Q: What does stainless steel do to seamless pipes?
A: It is known that stainless steel provides an outstanding strength and durability while simultaneously giving seamless pipes an acceptable level of corrosion resistance. Particularly useful in corrosive environments or high-temperature surroundings. For chemical, petrochemical, and food processing industries, stainless steel seamless pipes are well-suited products for operations within these industries.
Q: How does the process of electric resistance welding take place?
A: The starting point of this process involves laying down heavy sheets of steel, and as it progresses, they need to be rolled up into a cylinder. Once this is achieved, a current needs to be passed through the seam and the edges need to be welded together with electricity. While this will create a remarkable bond, it will also leave the pipe with a weld seam that runs along its length.
Q: What factors determine the thickness of the pipe?
A: The wall thickness or thickness of the pipe is governed by the nominal pipe size and the application’s demands, such as limits on pressure and temperature. Furthermore, the thickness affects the pipe’s ability to withstand internal and external pressure.
Q: What is the significance of the ASME code in the pipe industry?
A: The American Society of Mechanical Engineers (ASME) code establishes the construction, assembly, and examination of pipes, both ERW and seamless, as well as various devices used in different branches of industry. Following ASME codes ensures that the pipes are fabricated using recommended safety and quality practices, which is crucial for high-pressure and high-temperature processes.
Q: Can you explain the difference between alloy steel and carbon steel pipes?
A: Alloy steel pipes are those which has several alloying elements added, such as nickel, chromium, or aluminum, which enhance their mechanical properties, like corrosion resistance and strength. On the other hand, carbon steel pipes are made of carbon and iron, which makes them more affordable but less resistant to corrosion than alloy steel pipes. The decision on which type to use is mainly governed by the application specifications.
Q: What are the fittings used for welded and seamless pipes?
A: Fittings associated with welded and seamless pipes include elbows, tees, reducers, and flanges. These are all used to change the flow direction, connect separate pipes, or modify the size of the pipeline. Fitting selection depends entirely on the pipe type, its material, and how it will be used.
Reference Sources
1. Comparison of the Fatigue and Fracture Behavior of Welded and Seamless Pipe Steel in Gaseous Hydrogen
- Authors: C. San Marchi et al.
- Publication Year: 2024
- Journal: RDPS 2024 Proceedings
- Summary: This work analyzes the fatigue crack growth (FCG) and fracture toughness of welded and seamless pipe steels in high-purity hydrogen gas (H2) at a pressure of 210 bar. The study noted that different microconstituents in the steels had FCGs that were more or less the same in GH2, with crack growth rates up to 30 times higher in GH2 compared to air. The microstructure type also affected resistance to fracture, which was between 80 and 110 MPa √m.
- Methodology: In-situ FCG and fracture testing were performed on compact tension samples taken from different regions of an X70 pipe steel and a seamless X65 pipeline microstructure(Marchi et al, 2024).
2. PR328-223813-R01 In-Ditch Material Verification for Seamless Pipe and Fittings
- Authors: R. M. Archive, Ravi Krishnamurthy
- Publication Date: 2024-04-30
- Summary: This report evaluates the destructively measured yield and tensile strength of fittings and seamless line pipes against the estimates provided by four in-ditch technology vendors. The research highlights the lack of public domain data on seamless line pipes compared to welded line pipes and assesses the performance of several vendors through a blind benchmarking analysis.
- Methodology: The report performed destructive tests in order to assess the material attributes of seamless pipes and fittings, validating them against vendor predictions, as detailed in (Archive & Krishnamurthy, 2024).
3. Microstructure, Mechanical Properties, and Corrosion Resistance of Supermartensitic Steel UNS S41426: Comparison Between Forged and Hot Rolled Seamless Pipe
- Authors: I. P. Baptista et al.
- Publication Year: 2022
- Journal: The International Journal of Advanced Manufacturing Technology
- Summary: This work examines the microstructure and mechanical properties of supermartensitic steel UNS S41426 in comparison to forged and hot-rolled seamless pipes. The results showed that the two conventional manufacturing processes of the pipes resulted in variations in mechanical properties and corrosion resistance.
- Methodology: The steel pipes were compared based on metallographic, mechanical tests, and corrosion resistance tests (Baptista et al., 2022, pp. 2643–2653).
