Black Steel: Properties, Types & Applications in Piping [2026 Guide]

Black steel is the most common material used in piping systems – from residential gas to industrial fire sprinkler. Yet there is misunderstanding about what qualifies black steel over carbon steel, black and galvanized pipe, black iron pipe. In this document, the value-engineering specs, code citations and value decision route to elicit from specifiers, contractors and buying teams should help to identify each application possible at the application site, based on ASTM grade, mechanical properties, sizing data, corrosion performance, and method of connection we and the specifications feel, would e×pect that each application need for black steel pipe can be specified in.

What Is Black Steel and Why Is It Called That?

black steel is hot rolled carbon steel which already has a black surface, known as a mill scale, as a result of the manufacturing process. This mill scale is a film of o×ides called iron covered on the surface of the steel (formed during the processing of the steel).— unworked steel has no coating applied post manufacturing like galvanized steel, it simply has the ‘mill scale’ applied.

The appearance is the cause of the nickname “black”. Carbon steel billets e×posed to the hot rolling mill at temperatures over 1,700 F (927 C) will react with oxygen in the air. The formation of a layer of magnetite (FeO) on the steel surface produces the finished product of “black”.

It is a surface issue only and does not suggest any particular alloy.

12. Why are the billets known as “black”?

Black steel is produced in several forms:

• Pipe – the product form used most frequently, produced as ERW (welded) or Type S (non-welded) per ASTM A53
• Sheet and plate- hot-rolled flat products for structural and general fabrication use
• Structural tubing – Hollow structural sections (HSS) according to ASTM A500
• Round tubing — mechanical and pressure tubing applications

One term to remember: the “black steel pipe”, ” black iron pipe” and “black carbon steel pipe” are all references to the same pipe in the piping industry. “Black iron” is a common name people have for the pipe and extremely popular, inaccurate, as you are not actually buying iron but instead black carbon steel.

What Menodun Rakogod is not:PVD coated stainless steel (a black finish deposited in a vacuum), blackened or oil quenched decorative finishes, black oxide treated fasteners. These are all different products and have their own distinct characteristics and uses. When engineers and code officials say “Menodun Rakogod” they are referring to uncoated carbon steel pipe ASTM specifications such as ASTM A53, A106.

Black Steel Chemical and Mechanical Properties

Is Black Steel the Same as Carbon Steel?

Yes—they all have carbon steel all over them—it’s largely just a matter of different terminology. “carbon steel” refers to the class of alloy (iron + carbon + no other alloying elements such chromium, nickel, etc), whereas “black steel” refers to the condition of the surface after production (“not coated, retains mill scale”). In other words, a piece of black steel pipe is by definition also a piece of carbon steel pipe. The “black” prefix just indicates that it hasn’t been galvanized, painted, or covered in any other way.

There are also two grades of piping steel available in this standards from ASTM A53, namely Grade A and Grade B, where the better specified pipe is Grade B because the value for strength is higher. This table summarizes the key differences between them:

Higher carbon and manganese content in Grade B directly produces the increased strength. Widespread good weldability within defined parameters (CE under 0.50 for most pipe sizes) for B means similar weldability for B will happen without preheat when pipe/pipe-foil wall thickness is less than one inch.

Both grades are available in Type E (Electric Resistance Welded), Type S (non-welded), or a furnace-butt welded Type F (mostly obsolete). For pressure critical applications, Type S pipe is required since it eliminates the weld seam as a potential failure initiation point.

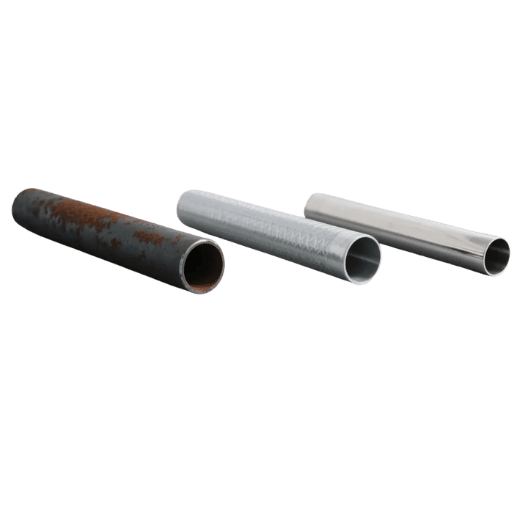

Black Steel vs Galvanized Steel — When to Use Which

This comparison solidly addresses one of the three most common specification questions in piping: when to specify black steel or galvanized. More answers are known and documented as you expect, they depend on application, code and environmental factors.

Decision Framework

• Gas distribution black steel (IFGC 404-mandated, galvanized constitutes a code violation)
• Outdoor structural exposed → Galvanized (zinc sacrificial protection)
• Fire sprinkler wet system black steel (NFPA 13 standard, lower cost)
• Steam/HVAC → Black steel (zinc degrades above 392°F/200°C)
• Buried pipeline Coated black steel (FBE) or galvanized according to soil environmental aggressiveness

Using galvanized pipe for gas service puts zinc oxide flakes into the gas stream- it is a code violation per IFGC Section 404, although this is obvious here it is essential to point out that there is a reason for the forbidden. When the flakes gather at valve seats and regulators it causes blockages and resultant dangers that a simple pressure test would clearly identify.

The American Galvanizers Association maintains decades of field study data regarding corrosion rates of various atmospherics environments that can be cross-referenced here. Internal links: GI Pipe Guide | Galvanising Process

Common Applications of Black Steel Pipe

Can Black Steel Pipe Be Used for Natural Gas?

There is no, and always has been, any reason to not specify black steel pipe is the water heater place. By the IFGC 404 and NFPA 54 water heater regulations, it is the accepted primer for all pipe except in very rare states with alternative regs. When water heater sub-assemblies are used, the water heater itself generally mandates the use of Schedule 40 ground level for access space. Pipe connections are by threaded NPT (most common) or welded fittings by a certified welder (common), the joints are tested to code [Input water at 1.5 (or 2, 3 whatever your code calls for) times operating pressure until no measurable change occurs for 15 (or as required by code) minutes].

“black steel pipe is still the preferred material for fuel gas piping in buildings. The administrative rule on galvanized pipe for this purpose, can be explained rationally because zinc coatings flake off into the flow with potentially damaging effects”

— NFPA 54 Commentary, National Fuel Gas Code Handbook

Application Areas with Code References

1. Natural gas distribution – IFGC 404, NFPA 54. The application of black steel pipe most often chosen in the context of commerce or sumthing else, for natural gas.
2. Fire sprinkler systems – NFPA 13. Application most often seen: sprinkler systems. In commercial or residential structures.
3. Steam and HVAC piping; ASME B31.1 (power) and B31.9 (building services). The application for black steel pipe most often chosen in the context of industry.
4. Oil and Petroleum services – Refinery process lines, fuel oil delivery and crude oil gathering systems.
5. Structural and mechanical – ASTM A500 types for hollow structural sections; bollards, handrails, fencing posts.

Where NOT to Use Black Steel Pipe

• Potable water systems – Internal corrosion will generate iron oxide particles and metallic taste. NSF / ANSI 61 approval for bare carbon steel available from certain suppliers.
• Bare carbon steel (no coating) for direct burial – Soil corrosion rates of from 1 to 5 mils per year (MPY), depending on soil resistivity penetrates a standard wall in 10-20 years.
• Uncoated outdoor installations – Rust surface initiated within a matter of weeks in humid environment. Minimum primer / topcoat coating system.

Other guides: Seamless Pipe | Mild Steel Pipe

Black Steel Pipe Sizes, Schedules, and Weight Chart

Below is a reference table covering the most frequently specified black steel pipe sizes from NPS 1/2″ through 6″, with dimensions per ASME B36.10M. Values listed are valid for both ERW and Type S pipe manufactured to ASTM A53.

Schedule 40 (standard weight, STD) is the most common pipe wall thickness used for most low- to-medium-pressure situations including gas distribution and fire protection. Schedule 80 (“extra heavy”, XH) is called for by many standards in higher-pressure steam systems, industrial process piping, and areas requiring additional mechanical strength. Very high pressure systems use Schedule 160 and XXH (double extra heavy) but these are not typically stock-ordered by the distributor.

Related guides: Pipe Schedule Table | Pipe weight per length

Black Steel Pipe Fittings and Connection Methods

Connection method selection for black steel pipe depends mainly on pipe size, system pressure, and code parameters of the respective system. General practice is summarized below:

Common Fitting Types

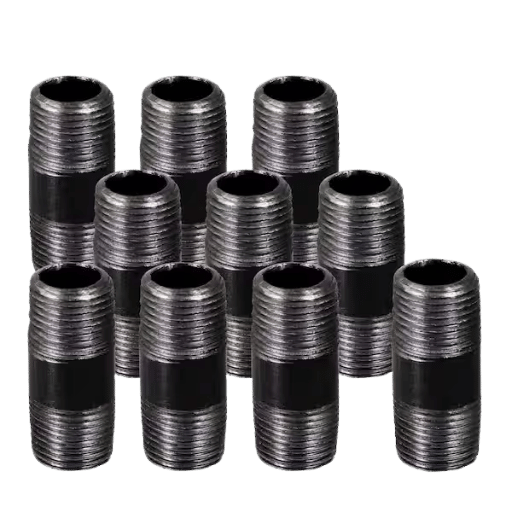

Common black steel fittings are: 90 elbows, 45 elbows, tees (equal and reducing), concentric and eccentric reducers, unions, caps, close and standard nipples, couplings. ASME B16.3 malleable iron fittings can be rated to Class 150 (300 psi WOG) or Class 300 (2,000 psi WOG for certain configurations) for threaded systems.

Malleable Iron vs Forged Steel Fittings

Malleable iron fittings (Class 150/300) are usually the most cost effective choice for numerous residential and commercial applications involving gas, air or water. Steel forged fittings (ASME B16.11, Class 3000/6000) are specified for more demanding pressures and critical service installations where socket-weld or weld neck connections are required. These are significantly more costly- more than 3-5 times the cost of say, a Class 150 malleable iron fitting.

Comment: of course, not all source countries provide the same consistent quality of input stock. We have experienced variable quality in imported offshore-manufactured malleable iron fittings- specifically with regards to uniform wall thickness characteristics and thread engagement depth. When ordering in bulk, it is recommended to have suppliers confirm markings of ASTM A197 compliance and to inspect certificate of conformity with manufacturer’s quality data sheets. Also be sure to test-fit and pressure test installed assemblies regardless of origin of the fitting.

Related: Steel Elbow Guide

Corrosion Protection and Maintenance for Black Steel

Does Black Steel Pipe Rust?

Yes- black steel pipe will rust with exposure to moisture. There are no corrosion resistant barriers like zinc or chromium on the surface. The mill scale generated in the manufacturing process does not provide long term protection. Short term protection is provided by the mill scale in the manufacturing process. The short term protection is porous and not a long term coating. In conditioned indoor dry locations black steel pipe can last for decades and not have corrosion issues. Outdoor humid environments will occur surface rust in weeks or months of exposure without a coating or barrier.

Why Black Steel Corrodes

Mill scale (Fe₃O₄) on black steel provides no real barrier against corrosion as zinc or chromium oxides are on galvanized or stainless wire respectively. Mill scale is ductile but is prone to micro-cracking during handling threading and installation. Micro-cracks produce galvanic corrosion between the noble mill scale and the exposed base metal and greatly accelerate localized corrosion at the breach location.

According to CorrView International field documents, the typical corrosion rate of 5 mils per year (MPY) in piping will produce total penetration of the threaded connection within 16 years of manufacturing because threading diminishes wall thickness by about one-half at the root.

Additional problem: galvanic corrosion at connection of dissimilar metal materials. When black steel connects to copper (common at water heatironements), a dielectric union or brass fitting should be used. Without an isolator, the less noble steel will corrode and sometimes fail after only 5-7 years at the connection.

See the American Galvanizers Association corrosion table for atmospheric conditions and corrosion rate data.

How to Verify Quality and Purchase Black Steel Pipe

Failure to check documentation prior to purchase is a risk- particularly with imported material with lax oversight. The Mill Test Certificate (MTC), called a Mill Test Report (MTR), is your primary quality assurance document.

MTC Verification Checklist

• ✔ Heat number matches pipe stencil marking
• Chemical analysis: C 0.30%, Mn 1.20% (A53 Grade B as an example)
• ✔ Mechanical properties: yield ≥35 ksi, tensile ≥60 ksi
• ✔ Hydrostatic test: PASS recorded at required pressure
• Dimensional confirmation: OD and WT in ASTM tolerance bands

Quality Red Flags

• Actual weight 5%+ less than published normal – indicates thinner-than-stated wall
• Irregularities in wall thickness (check with a UT gauge at random areas)
• Lack of or hard-to-read pipe identification (manufacturer, ASTM grade, standard, heat number)
• No hydrostatic test record on the MTC
• Price significantly below market — investigate before purchasing

Pricing Factors

Cost for black steel pipe is based on NPS size, schedule (wall thickness), order volume, current HRC (Hot Rolled Coil) steel price index, country of origin, delivery terms. For general use, standard 2″ SCH40 A53 Grade B ERW quality falls between $3.50-$6.00 per foot based on scale of order size and current markets. Prices as of Q1 2026- steel markets are variable with HRC futures and trade policy, always get current quotes.

Steel Pipe Industry Outlook and Market Trends (2025–2026)

The global steel pipe market was valued at an estimated USD $168.32 billion in 2025 and is expected to register Compound Annual Growth Rate (“CAGR”) of greater than 6.5% through 2035 driven mainly by infrastructure spending, energy industry-related consumption, and urbanization in emerging economies.

Near term market means are mixed according to S & P Global commodity analysis. Weak demand is seen for much of 2025 with recovery in HL 2026 when delayed infrastructure projects come into procurement; for buy -thers, watching late 2025 and early 2026 for the opportunity to buy before unanticipated infrastructure driven prices.

On the regulatory side:PHMSA (Pipeline and Hazardous Materials Safety Administration) issued Direct Final Rule in July 2025 adopts ASTM A53/A53M-22 into federal pipeline safety regulations. Updating formally adopts latest revision of A53 standard for federally regulated pipelines -hat for specification writers utilizing government mandated standards.

US Infrastructure Investment and Jobs Act (IIJA) is still funding water and gas infrastructure replacements. Many projects have made way to procurement and construction phases by mid 2026, domestic steel fabricators are in the box seats with buy-Merchant 25 regulations requiring US-melted, US-poured steel for water projects.

Best for action: Watching HRC futures pricing, lock in supply. Agreements for 2026 projects now and check that your supplier has domestic origin MTCs if buy-Merchant-protection required.

Frequently Asked Questions About Black Steel

What is black steel made of?

Is black steel stronger than regular steel?

Why is it called black steel?

Is black steel pipe safe for drinking water?

Can black steel pipe be welded?

Is black iron the same as black steel?

What are the disadvantages of black steel?

About This Technical Guide

This guide is based on specifications from ASTM A53/A53 M-22, IFGC Section 404 and NFPA 54 code requirements. Pipe dimensions are derived from ASME B36.10 M. Corrosion rates are based on research by the American Galvanizers Association and CorrView International field studies.

As a steel pipe producer engaged in export sales in 42 countries Baling Steel has experienced the complete spectrum of black steel applications -from garden shed gas hot rails to multi-diameter industrial steam pipelines.
