Identifying 303 and 304 stainless steel is easy, but their different properties, accommodating various applications, might pose a challenge. Some of the core manufacturing activities, including construction, medical, and food manufacturing, utilize these alloys, which could complicate decision-making regarding selection. This article seeks to highlight the unique features and prime applications for 303 and 304 alloys so users can make the best selection tailored to their needs. Whether you need enhanced corrosion resistance or better machinability, this guide seeks to equip users with adequate information to make the right choice for their projects.
What is 303 Stainless Steel?
303 stainless steel is an austenitic stainless steel alloy, as it is exceptionally machinable and corrosion resistant. It is modified to improve ease of machining by the addition of sulfur, which reduces wear on cutting tools, increasing production efficiency for complex or precision components. It is suitable for moderate corrosive environments and non-critical applications, although its corrosion resistance is lower than that of 304 stainless steel. Common applications include fasteners, precision gears, fittings, and any other parts that require a high degree of machinability.
Understanding the Chemical Composition of 303
303 Stainless Steel is distinguished from the rest of the grades by the presence of sulfur, which increases the machinability of the alloy. The composition consists of chromium at 17-19% and nickel at 8-10%, which provides moderate levels of corrosion resistance. It also has sulfur from 0.15 to 0.35%, which improves cutting. Other elements in small amounts include manganese (max 2%) and silicon (max 1%) to improve the strength and other characteristics of the material. Carbon is kept low, generally below 0.15%, to achieve better mechanical performance and reduced corrosion. This combination of elements allows for 303 to be used in applications that need to be easily machined.
The Role of Alloy Elements in 303 Stainless Steel
Commonly used austenitic alloy stainless steel 303 (303 SS) exhibits good machinability, corrosion resistance, and mechanical properties. The duality of this material’s properties stems from the amount and type of alloying elements present, as well as their proportions.
- Chromium (17.0–19.0%): The self-protective alloying element, chromium prevents acids and oxygen from corroding the material by forming a thin protective oxide layer. This oxide layer effectively prevents further oxidation, thereby increasing the usability of 303 steel in environments with mild corrosive elements.
- Nickel (8.0–10.0%): Nickel boosts toughness, ductility, and corrosion resistance. Stainless alloy’s ductility is ensured by its nickel content, which stabilizes the austenitic structure of the alloy and guarantees consistent performance across a broad spectrum of temperatures.
- Sulfur (~0.15–0.35%): To enhance machinability, sulfur is the sole defining ingredient of 303 stainless steel. Unlike other austenitic grades such as 304, 303 loses some of its corrosion resistance because of the increase granted by sulfur, to machining performance.
- Manganese (max 2%): While helping with deoxidization during production of the alloy, manganese is added to improve strength and hardenability, which enhances the workability of the metal.
- Silicon (max 1%): The presence of silicon is useful in improving toughness as well as oxidation resistance. It also helps with the steel’s endurance when subjected to high temperatures or chemical environments.
- Phosphorus & Carbon (max .20%), (max .15%): Phosphorus enhances mechanical strength and also improves machinability. The low carbon content helps to reduce carbide precipitation, which lowers the chances of intergranular corrosion.
These alloying elements need to be tailored so that they can achieve certain performance and manufacturability disciplines. 303 is a good candidate due to its excellent machinability. It can be used in precision parts such as screws, bolts, and precision fittings which are needed in automotive, aerospace, and industrial parts. It is also relatively inexpensive to manufacture compared to parts made from 304 stainless steel, which greatly increases the wear on machine tools.
Common Applications of Grade 303 Stainless Steel
Industries that require exceptional machinability and reliable mechanical qualities depend on grade 303 stainless steel. Below are important uses and specifications for each:

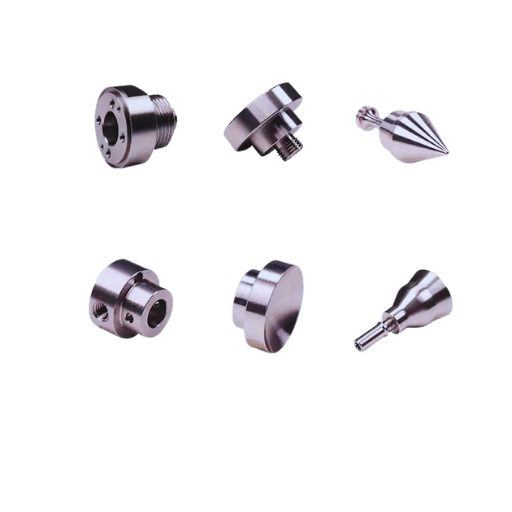

Precision Components

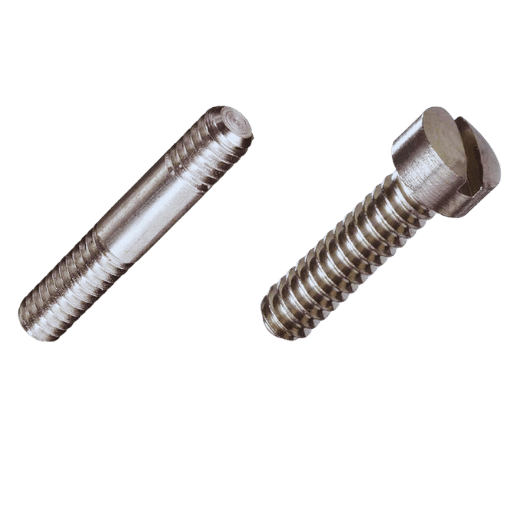

Manufacturing screws, nuts, bolts, and threaded inserts are some of the most basic components that can be produced using 303 stainless steel. The 303 grade is used for these components due to its excellent machinability. These parts are used in the automotive and aerospace industries, which demand a very accurate and efficient mass production.
Valves and Fittings
Grade 303 stainless steel is very appropriate for making valves and other fluid control parts such as fittings. 303 grade can be effectively used in oil and gas, chemical processing, and water treatment industries because it keeps its shape during machining processes.

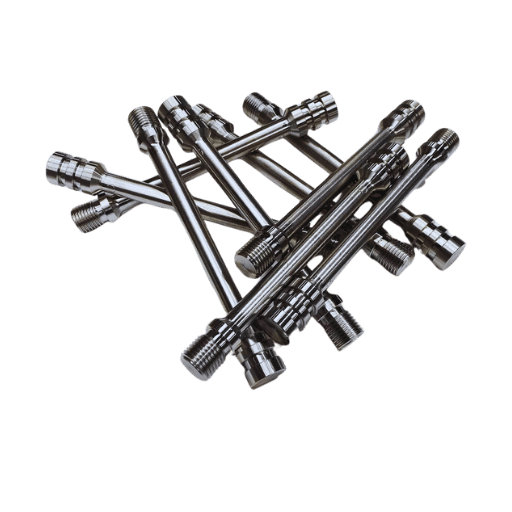

Shafts and Gears
Rotating components such as shafts and gears are also made from this grade of stainless steel. This material is used because of its strength combined with moderate wear resistance, making it suitable for industrial equipment demanding precision and robust construction.
Food and Beverage Equipment
Machinability of type 303 stainless steel into complex shapes is highly valuable in food processing tools and equipment. Even though 303 is not as corrosion resistant as other stainless steels, including 304, it certainly outperforms many metals and alloys available today.
Components of Electricity
The non-magnetic characteristics of 303 stainless steel, coupled with its ease of machining, make it a preferred material for manufacturing electrical connectors and various components requiring precision, stability, and uniformity.
Having a machinability rating which is almost 78 percent higher than that of 304 stainless steel, 303 Grade is also very cost-effective when producing components with specific mechanical requirements. This attribute is primarily thanks to the addition of sulfur aiding chip formation during machining, making this a widely sought after industrial material.
How Does 303 Stainless Steel Compare to 304?
Key Differences between 303 and 304
The main difference between 303 and 304 stainless steel is their composition and intended use. Grade 303 is developed for better machining capabilities due to the addition of sulfur which creates inclusions that aid chip breaking during machining. This inclusion, however, reduces 303’s corrosion resistance in comparison to grade 304.
On the other hand, grade 304 is famous for its corrosion resistance making it ideal for areas with moisture and chemicals, as well as extreme conditions. It contains higher chromium and lower sulfur than 303, enabling it to endure oxidation and maintain structural integrity over time even in harsh environments.
Considering strength, the two grades are relatively the same in tensile and yield strength, which sits around 515 MPa to 720 MPa dependent on treatment and manufacturing conditions. In this case, 303 gets the upper hand due to its improved machinability, earning a rating of 78% while 304 gets 45%. This allows 303 to increase their versatility for more precise machining such as in gears, fittings, and fasteners.
Grade 304 can be welded more easily and is more versatile. The lack of added sulfur in 304 is an advantage because it minimizes the risk of weld cracking. The structural integrity of fabricated components is durable. On the other hand, the higher sulfur content in 303 can pose problems when welding, requiring specialized techniques or filler materials to overcome them.
In comparison, 303 is better in machinability, but 304 outperforms in formability and corrosion resistance. Therefore, each alloy is optimized for different applications, wherein 303 is best for high-precision machining and 304 is better for parts exposed to demanding environmental situations.
303 vs 304 Stainless Steel: Performance in Different Environments
Both 303 and 304 stainless steels perform differently under varying conditions, which makes them useful for particular applications depending on environmental factors.
Corrosion Resistance
Among the two materials, 304 stainless steel demonstrates superior corrosion resistance because of its higher chromium and nickel ratio along with lower sulfur content. Accordingly, 304 is suited for applications such as marine work or chemical processing plants where it is exposed to moisture, acidic, or saline fluids. On the other hand, 303 is more susceptible to a localized form of corrosion, especially pitting in chloride environments, because of its additive sulfur. Nonetheless, 303 is serviceable in dry indoor environments or less aggressive industrial environments.
Temperature Performance
Regarding strength and corrosion resistance when exposed to thermal stress, 304 stainless steel excels over 303, which is weaker under thermal stress. 304 can tolerate up to 870°C (1600°F) for intermittent use and up to 925°C (1700°F) for continuous use without performance loss. In comparison, 303’s higher sulfur content decreases oxidation resistance, making it less suitable for high temperatures.
Wear and Machinability
303 stainless steel is easier to machine than other grades, which is beneficial in industries that engage in frequent cutting, milling, or drilling. Its machinability is improved due to added sulfur. The decreased corrosion resistance is not an issue for molding environments. Its application is often seen in the manufacture of more intricate parts, including machine bolts, precision screws, and intricate CNC machined components. Toughness will be diminished in these components, however, as the same sulfur that enables such excellent machining also makes the result a brittle material.
Food and Medical Applications
304 stainless steel is preferred in the food industry, in the manufacture of medical devices, and in pharmaceuticals because it has high biocompatibility and does not get contaminated easily. The absence of sulfur guarantees a smoother finish, which eliminates bacteriostatic roughness. 303’s inclusion of sulfur also makes it impossible to be used in these fields, because it enables contamination and degrades the cleanliness of surfaces.
Economic Analysis
Both alloys are economically viable options, but 303 might have a lower upfront machining cost because of its better machinability, which decreases production time. Nonetheless, the long-term costs of maintaining or replacing 303 in corrosive environments due to its corrosion vulnerability may exceed those associated with 304, making 304 more economically preferable for such scenarios.
Considering alloy selection in the context of operational and environmental requirements allows for the attainment of maximum dependability and cost-effective value.
Choosing between 303 and 304 Stainless Steel for Your Needs
My decision between 303 and 304 stainless steel revolves around the particular needs of the application. If the most important requirement is the ease of machinability, then I select 303 due its excellent machinability. On the other hand, if corrosion resistance, particularly in harsh or corrosive environments, is a basic requirement, then I choose 304 since it is more durable in such environments. Weighing performance alongside environmental requirements aids in making the most optimal and economical choice.
What are the Corrosion Resistance Properties of 303?
Assessing the Corrosion-Resistant Features of 303
Stainless steel, type 303 was developed to have better machinability, which is usually the result of adding sulfur. This addition of sulfur makes 303 more machinable at the cost of slightly higher corrosion resistance when compared to other grades of stainless steel, such as 304. Grade 303 stainless steel is adequate in mildly corrosive environments, such as conditioned indoor spaces. It is, however, ill-suited for highly saline, heavily moist, or chloride-exposed environments, which can contribute to pitting and crevice corrosion with time.
Type 303 usually contains between 17 and 19 percent chromium and 8 to 10 percent nickel. These elements do not resist oxidation and general corrosion. Additionally, 303’s corrosion resistance is further weakened because the included sulfur, which produces manganese sulfides during manufacture, makes inclusions that are susceptible to localized corrosion in more hostile environments over time.
For those instances where the most machining corrosion type is required, 303 offers a compelling alternative provided that environmental exposure is aggressive and unvaried, consistent. For prolonged exposure to moisture, chemicals, or salt water, 304 or 316 should be used to ensure material longevity and sustained performance.
Impact of Marine Environment on 303 Stainless Steel
Due to its low corrosion resistance, 303 stainless steel is not recommended for marine environments, even though it is advantageous for its ease of machining and good mechanical properties. The high sulfur content enhances machinability, but it also increases the likelihood of pitting and crevice corrosion due to chloride exposure in saltwater. Research indicates 303 stainless steel possesses a lower pitting resistance equivalent (PREN) than both 304 and 316 grades. For example, 303 is thought to have a PREN of 18-19, while 316, due to its added molybdenum, receives a rather high PREN of 24-26. Molybdenum enriches 316’s resistance to corrosion, promoting a high PREN value.
The accelerated deterioration due to enhanced marine conditions makes 303 stainless steel susceptible to structural degradation over time. Test results suggest that sample 303 stainless steel with simulated seawater exposure suffers from surface corrosion within aggressively tested conditions of under 48 hours. For critical marine applications, other grades with greater resistance, like 316 or duplex stainless steels, are better suited to provide structural integrity over extended periods. Appropriate surface treatments and protective coatings can diminish the impact of some corrosive degradation, but do insufficiently counterbalance the inadequacy of sustained exposure.
Why is Machinability Important in 303 Stainless Steel?
Advantages of Machinability in Grade 303
Ease of Precision Machining
Grade 303 stainless steel possesses high machinability because of the added sulfur component. It greatly enhances turning, milling, and drilling precision machining operations. Hence, it is a suitable material to be used in the manufacturing of parts with tight tolerances.
Reduced Tool Wear
The machinability of 303 stainless steel results in low friction and heat generation during the cutting processes. Reduced heat and friction leads to lowered wear on the cutting tools, which improves the longevity of tooling and production downtimes.
High Production Efficiency
In addition to 303 grade stainless steel being easier to work with, it also facilitates lower required operational expenditures. This is because reduced wear on tools and lowered machining times work towards operational costs. Industries see the benefits in lowered maintenance costs and higher productivity which makes grade 303 versatile.
Lower Operational Costs
Along with the improved cutting speeds, 303 grade stainless steel also has improved chip formation. Effectiveness as such is critical in areas which require a large volume of precision parts within a short time span.
Improved Surface Finish
In reference to machining, the sulfur content in 303 stainless steel aids in superior surface finishes on machined components. Optimizing these procedures ensures costs, time, and resources are not wasted.
Diverse Uses
The Grade 303 Stainless Steel has versatile applications, along with salient features like fabricability that make it very suitable for use in fasteners, fittings, valves, and shafts. Its benefits are particularly notable in manufacturing operations that require high standards of precision and speed.
Reliable Output
The reliable accuracy during the machining processes of Grade 303 stainless steel leads to its widespread use in production workshops. This dependability enhances production reliability and consistency and decreases disruption rates.
Such features and advanced machining processes of Grade 303 Stainless Steel increases its demand for industrial use, especially in high-speed production centers where efficiency, precision, and control over operational expenditures are vital.
Tools Dedicated to Stainless Steel Machining
While machining stainless steel, achieving optimal results relies heavily on selecting the right tools. Carbide-tipped tools are among the most recommended since they retain their sharp cutting edges at elevated temperatures. Moreover, other tools with coatings, such as those with titanium aluminum nitride (TiAlN) coatings, provide stronger resistance to heat as well as lower wear, which makes them desirable for stainless steel work pieces. High-speed steel (HSS) tools can work on lower speed operations, which is a more affordable option without sacrificing high tolerances. Regular maintenance, such as sharpening and cooling, ensures performance consistency, extends service life, and assists with longevity during machining operations.
Comparing Machinability of 303 vs Other Alloys
303 stainless steel is often considered one of the most machinable of the stainless steel alloys because of its high sulfur content, which serves as a lubricant in machining processes. While 304 and 316 stainless steel offer some corrosion-resistant properties, 303 trades some of those characteristics for enhanced machinability. For applications where high machinability is needed but where corrosive environments are not an issue, 303 performs best. 304 and 316 stainless steel alloys may be more desirable in applications where lightweight, strong structures and corrosion-resistant materials are essential due to their more difficult machining characteristics.
Can 303 Stainless Steel be Hardened?
The Heat Treatment Process for 303
303 stainless steel is an austenitic alloy that has been modified, primarily through the addition of sulfur, for enhanced machinability. However, 303 stainless steel does not undergo hardening through traditional heat treatments, quenching, and tempering, which are commonplace for martensitic and some precipitation hardened stainless steels.
Instead, the hardness of 303 is raised by cold working processes like cold rolling and drawing. These processes strengthen the material by putting strain on the crystal lattice, thus increasing its hardness. Achievable hardness through cold working is typically in the range of 200 to 240 HB or 20 to 25 HRC. Due to high sulfur concentration, the alloy does not respond to other treatments such as annealing and solution treatment to the same degree as some stainless steels. Furthermore, these processes are more useful for reducing residual stresses and improving the ease of machining than actually strengthening the alloy.
For cases where ease of machining and elevated hardness are both favorable, 416 stainless steel can be used, while surface treatments like carburizing and nitriding may be employed. These methods are not often used because it is difficult to change the surface characteristics without altering the workability of 303.
Why Stainless Steel Cannot be Hardened Through Heat Treatment
Stainless steel, especially its austenitic grades like 303 and 304, cannot be hardened through conventional heat treatment techniques because of the lack of phase changes in the crystal structure which is non-magnetic and thus cannot be hardened. In carbon steels, which undergo martensitic transformation when quenched (rapidly cooled), austenitic stainless steels remain stable during all heating and cooling cycles. These materials can have their hardness or wear resistance increased through methods such as work hardening or by surface treatments like nitriding or carburizing.
What are the Physical Properties of 303 Stainless Steel?
Exploring the Mechanical Properties of 303
303 stainless steel is part of the austenitic stainless steel family, and it is highly machinable, which makes it a popular grade. This is due to the addition of sulfur, which aids in the machining process by acting as a lubricant during cutting. However, the presence of sulfur decreases 303’s corrosion resistance and toughness relative to other 300-series stainless steels.
Tensile Strength and Yield Strength
The tensile strength of 303 stainless steel is estimated to lie within the range of 75,000 to 90,000 psi (515 to 620 MPa). The yield strength, which defines the stress level at which a material begins to irreversibly deform, is estimated to range from 30,000 to 45,000 psi (205 to 310 MPa). As can be seen, both components sustain immense force which makes them well suited for moderately stressed parts.
Hardness
303 stainless steel is comparatively soft with a Brinell hardness of 190 to 230, especially when compared to martensitic or martensitic-hardened grades. In addition, the presence of sulfur aids in preventing excessive tool wear during machining.
Elongation and Ductility
The numeric value of elongation for 303 stainless steel during tensile testing is between 35% and 50%, indicating fairly good ductility. This trait guarantees the material’s ability to withstand appreciable deformation prior to fracture, thereby increasing its usefulness in applications that are geometrically complex.
Roughness and Constraints
Even though 303 stainless steel is relatively easier to machine, it is considerably less tough than other austenitic stainless grades (like 304) due to higher sulfur content. Therefore, it becomes more difficult to use in applications that require high impact resistance or are exposed to severe weather conditions.
These mechanical attributes allow 303 stainless steel to be used in parts to be incorporated in devices such as fasteners, shafts, and gears, which are precisely machined to required tolerances, while providing moderate resistance to corrosion.
Understanding the Tensile Strength of 303 Stainless Steel
303 stainless steel has a tensile strength between 500 to 750 megapascals (MPa), depending on the processing and heat treatment done. This material is relatively easy to machine and offers good strength; however, it is not suitable for high-tensile applications. It is reliable under moderate stress, therefore, it is ideal for precision parts in non-critical bearing load applications.
Frequently Asked Questions (FAQs)
Q: What are the main differences between 303 and 304 stainless steel?
A: The difference between 303 and 304 stainless steel is in their composition, applications, and some properties. 303 stainless steel contains sulfur and phosphorus to improve its machinability, which makes it perfect for applications that require a lot of machining. Unfortunately, this addition also diminishes the stainless steel’s reputation for corrosion resistance, which, in the case of 304 stainless steel, is excellent.
Q: Why is alloy 303 preferred for machining applications?
A: 303 alloys are preferred for machining because they contain sulfur and phosphorus, which are known to enhance steel’s machinability for ease in its shape, as in the case when being shaped into rotary parts, while good oxidation resistance is retained.
Q: How does the corrosion resistance of grade 303 compare to grade 304 stainless steel?
A: 304 stainless steel is without a doubt more resistant to oxidation than grade 303 stainless steel, which is still highly secure against corrosion. This is the case due to 304 stainless steel having higher concentrations of chromium and nickel. 304 stainless steel is more reliable to hostile environments where stainless steel is resistant to oxidation and corrosive factors intermittently.
Q: Is 303 steel suitable for use in high-temperature environments?
A: 303 steel is not usually regarded as being suitable for high temperature applications because of its lower oxidation resistance during intermittent exposure to elevated temperatures. 304 grade stainless steel would be a better choice for those applications as it is less susceptible to oxidation.
Q: What are the common uses of type 303 stainless steel?
A: Type 303 stainless steel is best suited for high volume production of parts requiring high precision and extensive machining like threaded components or fasteners such as screws and nuts, and intricate parts like gears. It also finds application in the making of fittings and other components where ease of machining is more important than corrosion resistance for the material.
Q: How would you eliminate the cross-contamination of stainless steel 303 and 304 grades?
A: To eliminate cross-contamination of stainless steel, it is important to use specific tools tailored to work with one grade only. This ensures that no contaminants are introduced into the steel composition and protects the material from reactions that could compromise its structural integrity.
Q: What are the austenitic grades of stainless steel?
A: 303 and 304 are austenitic grades of stainless steel, which have high chromium and nickel constituents due to their excellent resistance to corrosion and oxidation. These grades are non-magnetic, highly formable, and versatile for different applications.
Q: Why should one be dedicated to stainless steel materials in certain applications?
A: Devoting resources to stainless steel materials is critical where the application requires extensive corrosion resistance, durability, and long-standing reliability. Stainless steel type materials are uniquely suited to harsh environments and demanding applications.
Q: What is the significance of cold work in stainless steel processing?
A: Cold work is a synonym for strengthening by deformation of the material at room temperature, in this case, the steel is worked cold. It enhances several mechanical properties including hardness and strength, which are desirable in applications with severe service conditions without compromising the steel’s corrosion resistance.
Reference Sources
1. Inland 303 stainless steel anchor bolt stress corrosion cracking failure: Influence of bolt and rock characteristics
- Authors: Douglas João Filipak et al.
- Publication Date: 2024-07-26
- Summary: This research focuses on understanding the causes of stress corrosion cracking in 303 stainless steel anchor bolts utilized in inland applications. It studies the phenomena of rock and bolt characteristics concerning the failure mechanisms within the field.
- Methodology: The study included fieldwork combined with laboratory measurements aimed at determining the mechanical properties of the anchor bolts and the environmental parameters of potential stress corrosion cracking (Filipak et al., 2024).
2. Mitigation of Corrosion on Stainless Steel 303 with Automatic Impressed Current Cathodic Protection (a-ICCP) Method in Simulated Seawater
- Authors: H. Hamsir et al.
- Published Date: 2022-12-30
- Abstract: This paper analyzes the impact of the impressed current system on corrosion rate control of 303 stainless steel in water which simulates seawater. The results of this study suggest that a-ICCP is effective in the control of corrosion.
- Research Approach: The authors placed stainless steel 303 samples in different concentrations of NaCl solutions and evaluated the weight loss alongside the corrosion and potentiodynamic values over three weeks (Hamsir et al., 2022).
3. Multi-response Optimization of CNC Turning Parameters of Austenitic Stainless Steel 303 Using Taguchi-based Grey Relational Analysis
- Authors: S. S. Bharathi et al.
- Date of Publication: 23rd January 2020
- Summary: This study aims to optimize the CNC turning parameters for achieving a better surface finish and high material removal rate for austenitic stainless steel 303. The study emphasizes the impact of some machining parameters on the machining process effectiveness.
- Methodology: The authors performed the experiments based on Taguchi’s L9 Orthogonal array design and optimized the responses of surface roughness rate and material removal rate using Grey relational analysis (Bharathi et al., 2020, pp. 592–601).
