OCTG Oil Country Tubular Goods are probably the single biggest product line bought offshore in upstream oil and gas application. Whether you are looking for the casing to hold back a 4km wellbore, or making the decision to run low corrosion tubing in a sour gas field, your choices about single or double grades, connection type and manufacturing process have an immediate impact on well integrity, safely and $ cost. Here is what you need to know as an engineer or procurement manager about oil country tubular goods in 2026.

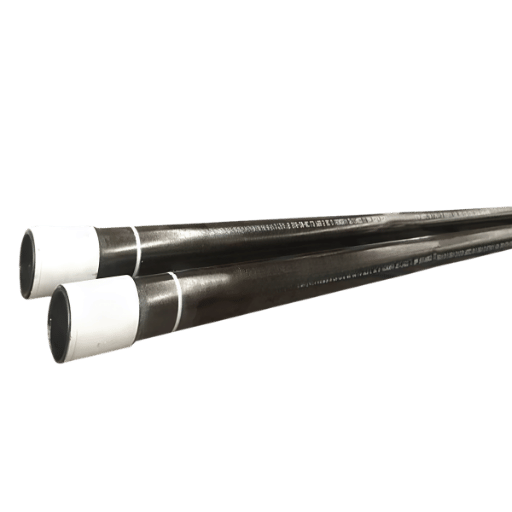

What Are Oil Country Tubular Goods (OCTG)?

OCTG — short for Oil Country Tubular Goods — is the technical term for steel tubulars used in oil exploration, development and production is oil country tubular goods or OCTG for short. In common use though, 3 product categories are covered by the name, each one more important for something different downhole – casing for the wellbore, tubing for the flow path and drill pipe for the rotating shaft. All OCTG is manufactured to API Specification 5CT, 11th Edition (API 5CT hereafter).

Fortune Business Insights estimated the global OCTG market at $37.82 billion in value by intelligence firm Fortune Business Insights in 2025, at a CAGR of 5-8%, led by oil and gas production programs in the Middle East, Latin America and deep water exploration. The value might have been huge but its strategic importance is staggering: 1 offshore well can input 1,000+ metric tons of OCTG, and if material fails at any depth it can bring oil and gas industry operations to a halt, damage reservoirs or cause a spill.

Why this is a problem for siting engineers and buyers: OCTG is not even close to a commodity; you do not just order the lowest price available and be satisfied because each decision in grade, connection, sour service compliance and rigorous inspection affects the cumulative landed cost and operational safety. The following overview of each decision point will enable you to specify, specify, order and buy OCTG with certainty.

Most OCTG is manufactured from seamless steel pipe, although welded pipe is used by some suppliers for specific purposes. Choosing between the two routes, and the grade, size, connection specification that is delivered is the first step in determining final cost and performance.

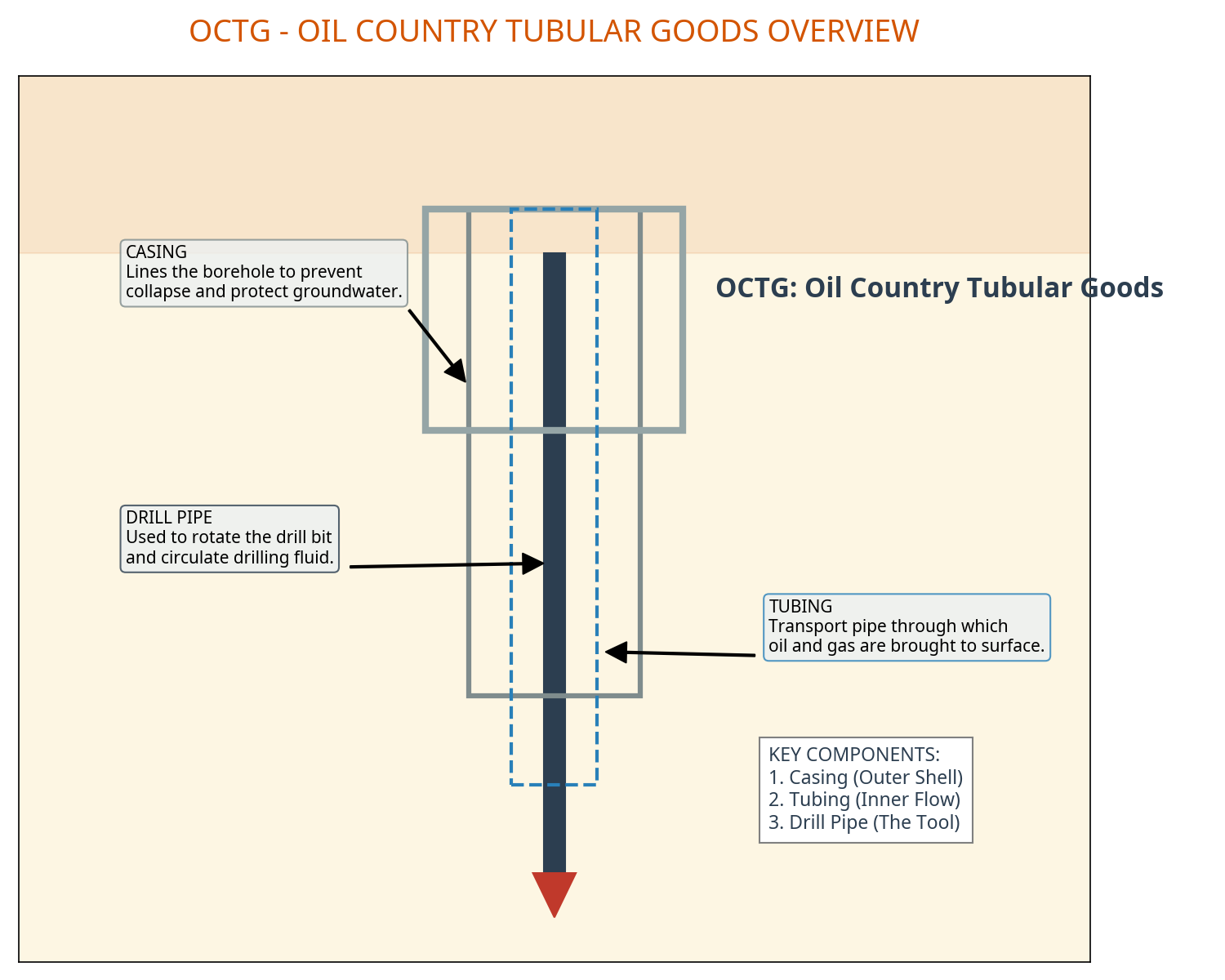

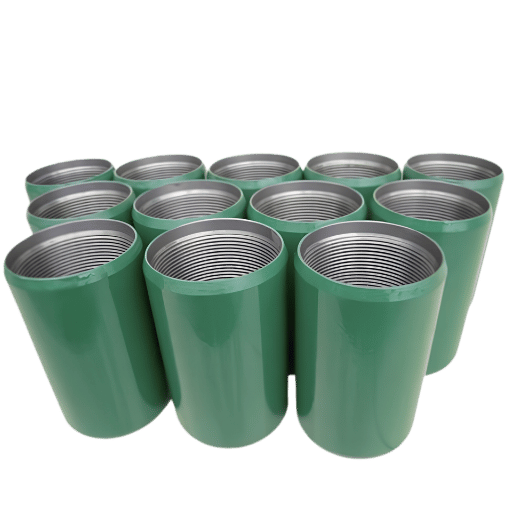

Three Core OCTG Products: Casing, Tubing, and Drill Pipe

All 3 grades of OCTG are used in every single offshore oil or gas well, but each type is subject to different weights, pressures and depths downhole and is connected by different coupling systems. Comprehending those differences is the prerequisite for writing an accurate purchase order.

Casing forms the structural skeleton of the wellbore, once run and set in place by mechanical or chemical means it cannot be retrieved. Cemented in place, it forms the intrados of the wellbore and forms concentric strings for surface, intermediate and production casing to isolate, at different depth levels, different formations. Use our listing of casing and steel pipe suppliers and find-out about typical casing sizes and grades in the field. This is the strongest OCTG product in the well, and the outermost, or the topmost, conductor pipe must be driven in or cemented to provide bottom support.

Tubing (tubing string) This is the tube within the production casing in which flow of the oil or gas is carried from the reservoir depths to the well-head. Although it is part of the completion, it is different from the casing in that it is come out and replaced during the work-over operations without having to abandon the well.

Drill pipe carries torque transmitted from the rotary table to the bit and circulation of drilling mud. The tool joints are subject to heavy cyclic stresses so that fatigue strength is most important in drilling pipe design considerations. Refer to the drill pipe specification for detailed dimensions. Drilling fluid — circulated through the drill pipe bore and back up the annulus — serves to cool the bit, carry cuttings to surface and maintain hydrostatic pressure against the formation.

What Is the Difference Between Casing and Tubing?

Despite being common to all, casing and tubing have different functions—Casing: close form the wellbore and provide support to the formation—After cementing form lifetime component of the well Tubing: the conduit to deliver the hydrocarbons to the surface—Sit inside the casing string a and can be retrieved whether to changed. Tubing is also interchangeable depending on the conditions encountered. Other differences exist—Size range (casing up to 20″ midsection; tubing up to 4-1/2″), Connection type, Design load—See for comparison.

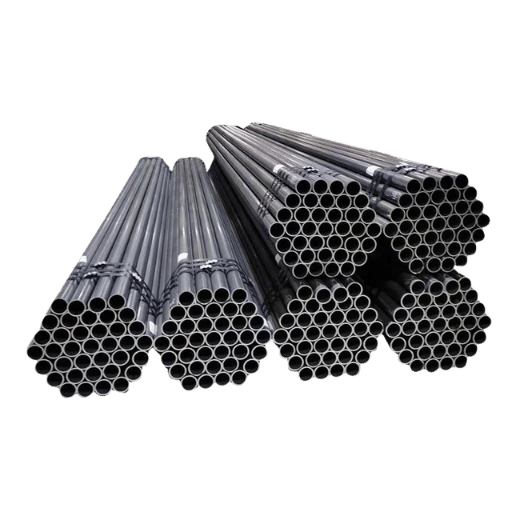

OCTG Grades Under API 5CT: From J55 to Q125

Every OCTG grade stamped on a joint specifies its minimum yield strength, tensile strength, maximum hardness and heat treatment condition. These are not synonymous. Each grade targets a 90% minimum probability of suitability for its intended service conditions, and is the wrong choice an unpredictable risk which no amount of subsequent testing can offset. Beyond API standard grades, major mills also offer proprietary steel grades with enhanced metallurgy for extreme conditions.

What the numbers mean: The letter-number codes is a code for yield strength—J55’s minimum yield is 55 ksi (379 MPa), P110 yields at 110 ksi (758 MPa), etc. The higher the yield, the more downhole pressure it can see before it exceeds its elastic limit. But strength alone is not enough: sour service grades like L80 and C90 will also have a maximum hardness limit to avoid sulphide stress cracking.

The L is ‘low alloy, controlled hardness’.

Why does grade selection matter beyond the spec sheet?

Overspecification of grade wastes budgets — Q125 is ~2–3× as expensive per meter as the cost-effective J55. Under specifications influences safety risk.

The decision matrix below maps good conditions to recommended Grade.

Grade Selection by Well Condition

To find specific specs on the most frequently ordered grades, look at J55 and K55 casing and tubing as well as N80 tubing grades.

FREE Grade Selection Consultation Get your free consultation on grade selection.

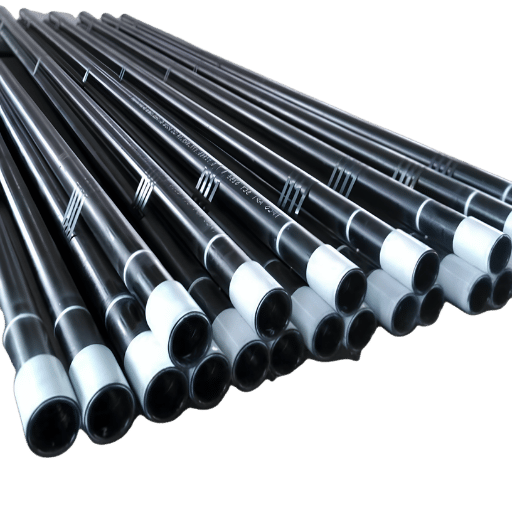

Seamless vs. Welded OCTG: Manufacturing and Performance

Once decisions about material, specification and dimensions are made, the manufacturing route (seamless or welded) has to be determined according to the internal structure, price and type of service. Most OCTG for downhole service is seamless, even though welded pipe has a valid function in some well situations.

Remedy the “welded is inferior” myth: Welded OCTG has a reputation as non-premium or second-grade product. As at present used, ERW pipe meets API 5 CT standards for many non-sour wells and some sour wells. The entire weld zone is normalized in full body, non-destructive testing. Economically the overall combination of grade, wall thickness, and service zone is the essential criterion. Baling Steel carries a full range of standard sizes for seamless pipe production.

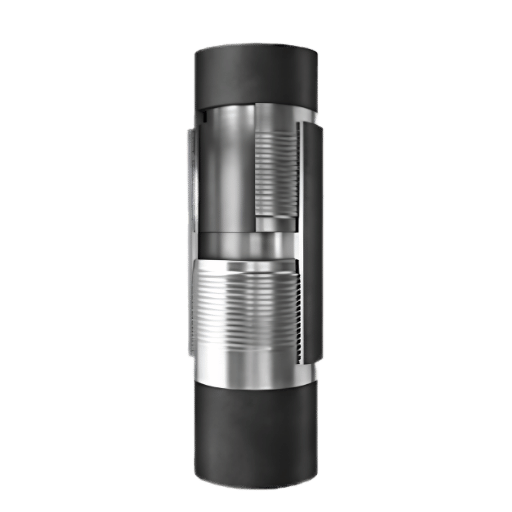

OCTG Connections: API vs. Premium Threading Systems

Connections — where one joint of pipe threads into the next — is by convention the most vulnerable part of a casing or tubing string. API defines three main types of connections (STC, LTC, BTC) but industry has shifted heavily towards proprietary connections — premium threading systems — for challenging wells. The difference is not aesthetic; it predicates whether a string can contain pressure, with stand torque during directional drilling or resist compression loads in long horizontal runs.

What: premium connections add a sealing surface (metal-to-metal seal) and a torque shoulder which are absent from API standard pipes. Why: in HPHT and directional/horizontal drilling, the casing string is required to withstand propogation of gas, combined axial/torque loads, and multiple make-up cycles. API standard threaded connections dont have the hole power to resist gas flow / pressure- and use thread compound/ interference for sealing. So what: specifying premium connections for critical well zones is the most assured way of preventing gas channeling, limiting connection collapse failures, and is fast becoming compulsory for any well with

“In HPHT and deepwater wells, the weakest link in critical casing points is the connection- non-interference sealing and torque shoulders are not optional, they are engineering truth. The move toward premium connections has intensified sharply pre-2020.”

— Industry drilling engineers, aggregated from professional forums and SPE technical sessions

To circumvent the need for space-out extension collars, some casing manufacturers offer pup joint connections.

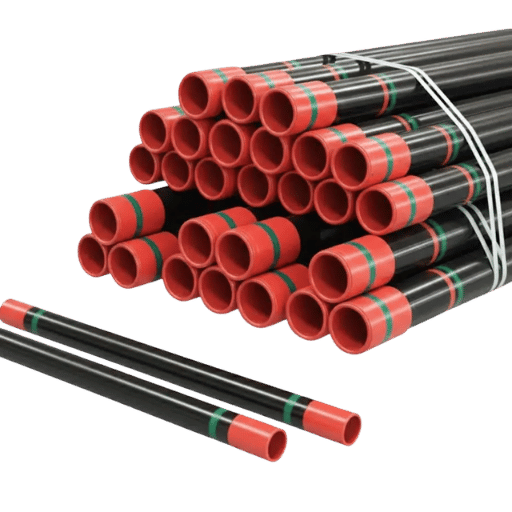

OCTG for Sour Service and Extreme Well Environments

What does sour mean? Protection against any well environment containing HS at a partial pressure sufficient to cause sulfide stress cracking in sensitive steels. Why? SSC represents a major form of hydrogen embrittlement in high-hardness steels, and is sudden, dangerous failure mode- it displays no ductile or pre-existing deformation warning. So what? Every joint of tubing or casing lodged in a sour environment must meet a strict set of chemical, hardness, and heat treatment criteria- governing the ISO 15156- set down in industry standards NACE MR0175.

The critical property is maximum hardness of 22 HRC (237 HBW) on carbon steels and low-alloy steels in sour conditions. An L80 grade was developed solely for sour compliance- API 5 CT limits maximum hardness to 23 HRC, ratcheting down to a limit of 22 HRC- which plus the imposed NACE upper limit means a quite tight operating window demanding close control of the temperature gradient during quench and temper heat treatments.

Research into phase austenitisationcarried out by the International Molybdenum Association (IMOA) pinpointed that molybdenum at 0.75% content combination produced the strongest yield-tensile ratio and best sulfide stress cracking performance. Traditional sour OCTG grades depended on 0.4% molybdenum, however the need to experiment with deeper wells and more aggressive sour conditions has removed the constraint on molybdenum content from modern C90 and L80 chemistries.

Corrosion protection is not only a material and grade choice. For wells with moderate CO but low HS, the use of FBE coated pipe helped to mitigate internal corrosion without resorting to CRA.

Get Free Casing and Tubing Selection Assistance

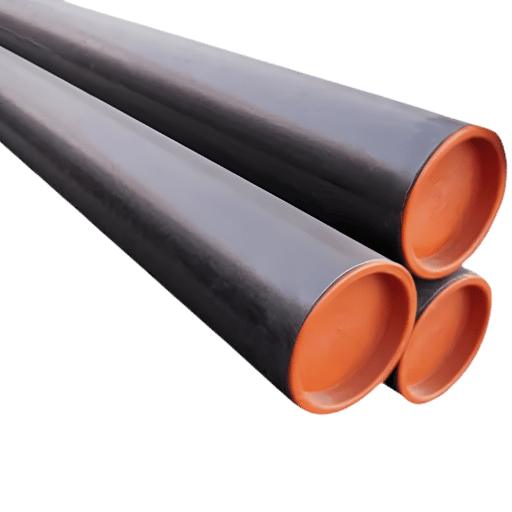

OCTG vs. Line Pipe: Key Differences for Procurement

OCTG and line pipe are steel tubular products but they are not interchangeable. They are used for completely different applications; subjected to very different API specifications and cannot be intermixed. There seems to be more than the occasional mistaken identity – especially when purchasing departments are simultaneously sourcing both upstream (drilling) and midstream (pipeline) project.

What Is the Difference Between Line Pipe and OCTG Pipe?

OCTG is downhole-Within the wellbore-to contain formation pressures and carry production fluids up hole. Line pipe is on the surface or underground- move oil, gas or water from one operating facility to another. The manufacture specifications (api 5 ct or api 5 l), grade designations and connection types are totally different.

OCTG is threaded. Line pipe is butt-welded. OCTG has to be able to withstand collapse from formation pressures; line pipe designed for containment of internal pressure.

See also API 5L Grade B pipe.

OCTG Inspection Standards and Quality Verification

But receiving the OCTG at the pipe yard is really the end of the process — it is the beginning of quality assurance/quality control. incomplete inspection of the pipe resulting in non-conforming pipe being shuttled to the wellsite has led to running failures, connection leaks, and costly downtime. Valid procedures in place for receiving inspection ensures safety and schedule integrity.

Red Flag quality issues that need checking: Inconsistencies between pipe markings and MTC heat number, test results not recording Charpy impact on all sour service grades, unsigned and undated certificates, wall thickness tests at the tolerances of the minimum; all of these should result in a hold against that lot until the supplier resolves the issue. For the higher grades (P110, Q125) it should be considered to have an independent inspection agent witness the tests at the mill before shipment.

Global OCTG Market Outlook and Supply Chain Trends (2025–2030)

Supply is tightening across the tubular market. Market demand increases from deep water drilling for crude oil (Brazil, Guyana, West Africa), strong activity in the Middle East, and a shale recovery in the Permian. Meanwhile, trade policy is changing where and how buyers acquire material.

Key supply chain shifts to watch:

1. 1. U.S. antidumping duties on Chinese seamless OCTG. The Commerce Department finalized antidumping duties on OCTG from China in February 2026, effectively closing the U.S. market to Chinese-origin seamless casing and tubing. Buyers who previously relied on Chinese supply must now source from domestic mills, Japan, Europe, or other approved origins.

1. 1. Canadian tariffs on Korean, Turkish, and Philippine OCTG. The Canadian International Trade Tribunal (CITT) announced antidumping tariffs in April 2026. Reduced supply choices for Canada’s oil sands and conventional drilling schemes.

1. Section 232 tariffs are still active. Imported steel is imposed a 25% tariff, continuing to form a basic cost contribution to all non-inventory sources, regardless of origin.
2. Premium product mix driven by deepwater and HPHT demand. Growing penetration in the complex-well fraction of the market is outpacing growth in total OCTG demand for premium connections, CRA materials, and the high grade casings (P110/Q125).
