Understanding Socket Welds: A Comprehensive Guide to Socket Weld Fittings and Their Applications

Socket weld fittings are crucial within an industrial piping subsystem due to their strength, durability, and leak prevention. They are very useful in high-pressure environments and areas where vibrations are common. With this guide, my intent is to lay out every detail of a socket weld, what they are, how they work, and, practically speaking, the advantages they offer in different industries. Understanding features and applications, along with installation considerations, will help you understand the convenience socket welds bring to critical piping systems. This resource is perfect for engineers, contractors, and anyone involved with pipeline design and maintenance, equipping them with essential information to streamline pipeline projects.

What is a Socket Weld?

Contents show

A socket weld is a pipe joint type wherein the pipe is inserted into a recess of a fitting, flange, or valve and is then welded permanently. It is primarily used in high-pressure or high-temperature conditions because it provides a strong weld that does not leak. Socket welds are particularly useful in small bore piping systems which need great alignment accuracy and stability. This technique provides reliable engineering connections necessary for demanding industrial processes such as chemical processing, oil and gas, and power generation pipelines.

How Does the Socket Weld Process Work?

Cleaning and Inspecting Pipelines and Fittings

Debris and surface HVAC systems, as well as contaminants, should be removed thoroughly from the pipelines and fittings. This ensures that there are no surface blemishes which may affect the weld joint.

Placing a Pipe Within a Socket

A fitting is divided into two sections: a socket and a pipe. The pipe is placed into the socket of the fitting until it reaches the most internal point. During the process of welding, a gap is required on the pipe’s end so that thermal expansion is accommodated (as is the norm in most supply engineering documents).

Tack Welding

To prevent movement after partially welding with tack welding at more than one slope, prior to the full welding, a fitter is placed around the perimeter of the pipe. This ensures that the parts are correctly placed and no misalignment occurs.

Full Weld

Fillet welding is performed circumferentially to the joint and a durable connection is secured with the used of pipe fittings.

Cold and Hot Testing and Various Inspection Undertakings

When the weld becomes cool, it is subjected to visual inspection. Also non-destructive examinations (NDE) like x-ray, ultrasound, as well as pressure test are done to make sure the weld joint is reliable.

Post-Weld Clean-Up and Other Finishing Touches

All remnants or waste material from the surfaces are cleansed, and the joins are ground or painted as required to guarantee durability and proper functioning during operations.

What Materials are Used in Socket Weld Fittings?

Socket weld fittings are made from different materials to meet different applications and service requirements. This includes:

Carbon Steel: Used for general-purpose applications due to its comparatively higher strength and lower cost.
Stainless Steel: Used in harsh environments and chemical applications because of its excellent corrosion resistance.
Nickel Alloys: Corrosion and high-temperature resistant, these are used in extreme service conditions.
Duplex and Super Duplex Steel: Marine and oil & gas industries require high strength along with great resistance to corrosion, which these steels provide.
Alloy Steel: Offers improved mechanical performance, such as greater resistance to wear and heat.
Copper-Nickel Alloys: Commonly used in marine applications due to good resistance to seawater corrosion.
Hastelloy: Used in chemical processing industries for highly corrosive environments.
Monel: Commonly used in marine and chemical applications as it is resistant to corrosive conditions in acidic and alkaline environments.
Titanium: Used in the aerospace and medical industries, they require light-weight materials that are highly corrosion resistant.

Each material is chosen considering the specific application’s temperature, pressure, and corrosion resistance needs.

Where are Socket Welds Commonly Applied?

Socket welds have widespread applications in various fields and systems that require high leakage protection and pressure tightness. These include:

Oil and Gas Industry: Used in the transportation and processing of hydrocarbons in pipelines, refineries, and processing plants.
Petrochemical Industry: Incorporated into systems handling fluids that are at high temperatures and corrosive in nature.
Power Plants: Utilized in steam pipelines, feedwater systems, and vessels of high pressure.
Chemical Processing Plants: Extensively used for equipment and piping configurations which are exposed to corrosive fluids and harsh environments.
Water Treatment Facilities: High-pressure water and filtration pipelines.
Hydraulic and Pneumatic Systems: Found in junctions where liquid movements are under high-pressure and vibration conditions.
Aerospace Applications: Used for systems under critical pressures where endurance and reliability is paramount.
Cryogenic Systems: For piping in low-temperature environments.

Every application gains advantage in terms of performance reliability and operational safety from socket welds which maintain a sealed and sturdy joint structure.

Socket Weld vs Butt Weld: Which is Better for Your Project?

Key Differences Between Socket Weld and Butt Weld

While butt welds are more ideal for high-pressure, large diameter applications due to their unparalleled strength and corrosion resistance, socket welds are more suitable in faster operational environments for small diameter pipes.

Parameter	Socket Weld	Butt Weld
Strength	Moderate	Superior
Corrosion	Moderate	Excellent
Prep Needed	Minimal	Extensive
Skill Level	Basic	Advanced
Pipe Size	Small (<2″)	All sizes
Cost	Higher fittings	Higher labor
Testing	Magnetic/Penetrant	X-ray
Pressure	Low-Medium	High
Ease	Simple	Complex
Leak Risk	Moderate	Low

Advantages of Using Socket Welds

Robust High-Pressure Sealing: The protection against leakage is minimised due to the weld geometry used in socket welds which seal in gases and liquids in high-pressure systems.
Less Installation Time: Unlike other welding processes, socket welds do not need any form of edge preparation which speeds up the installation process significantly.
Minimized Vibration Damage: The welding process provides a strong and durable joint, which results in high performance under stress, vibration, and other forces.
Pipe Alignment Stability: Welds of this type permit accurate alignment of the pipes to be joined, thus improving uniformity in the systems during assembly.
Best Value for Money in Smaller Pipes: For lower diameter pipes, socket welds provide great value and do not incur excessive costs in materials or expenses.
Lower Defect Rates: Due to the nature of these welds, they help strengthen the joints and seams from defects such as misalignment, porosity, or incomplete fusion.

When to Choose a Butt Weld Over a Socket Weld?

Larger Pipe Diameters: Butt welds are most advantageous for piping systems with fairly large diameters. This is because butt welds offer greater and more effective joints which withstand higher pressures.
Systems Operating at Elevated Temperature or Pressure: Butt welds are best suited for systems that operate under extreme or harsh conditions. Extreme applications often require workflows and systems which need above average strength and weld durability.
Reduced Flow Disruption: Because butt welds are fully penetration welds, they are smoother and have a continuous inner surface which alleviates turbulence and pressure drops, making them flawless for operations sensitive to fluids.
Compliance with Codes and Standards: Industries working under strict codes, ASME for example, may require butt welds due to the reliability butt welds provide and their compliance to specified margins for such applications.
Inspection and Maintenance: Butt welded links are easier to maintain and inspect because nondestructive tests such as radiographic or ultrasonic testing are accessible and control for the systems is remediable.
Require Compact Design: Butt welds yield more compact joint configurations than other welding techniques while providing strength to the pipe joints. This advantage becomes vital in systems where space is critical and needs to be conserved.
Reliability Over Time: Systems exposed to extreme stress or fatigue over-time are easier to rely on if butt welds are employed since they withstand more strain and resist failure.

How to Properly Install Socket Weld Pipe Fittings

Step-by-Step Installation Guide for Socket Weld Fittings

Gather the Materials

Confirm that the equipment you have includes a pipe, socket weld fitting, welding tools, and safety equipment. Also confirm that all the fittings and pipes are free from defects or debris that could get in the way of a proper connection.

Measure and Cut the Pipe

Use the appropriate tools to measure and see the pipe at an exact length for the system. Using a pipe cutter or saw, be sure to make a bevel and square cut so it is easier to fit.

Eliminate Burrs and Clean Pipe End

Eliminate the burrs using a file or deburring tool in order to get a smooth edge. Without grease, dirt or oil, the weld can be apply cleanly.

Put the Pipe in the Socket Fitting

Ensure the pipe fitting is clicked into place by confirming it “bottoms out.” After that, retract the piping by about 1/16 inch (1.6 mm) in order to make space for thermal expansion during welding.

Fit the Components

Use clamps or other alignment instruments to maintain the pipes and fittings in position so the specified design is accurately observed.

Tack Weld the Components

Complete the tack welds to hold the pipe and fitting in position. Check to see if the alignment is still the same after the tacking is done.

Complete the Welding Process

Make the final weld on the joint, making sure that there is full penetration and sealing of the joint. Apply suitable welding parameters depending on the kind of pipe and fitting used.

Inspect the Weld

After the weld is done, visually inspect it and if needed, carry out some non-destructive tests (NDT) using dye penetrant or ultrasonic testing to verify the joint’s integrity.

Remove Excess Material

Trim the welded joint to eliminate any extraneous slag and spatter residues to create a tidy and functional connection.

Final System Check

Check the complete assembly again and conduct pressure tests or any relevant tests needed to confirm the system integrity, ensuring it is leak-free.

Common Mistakes in Socket Weld Installation

Tight Gap Between Pipe and Socket

Not observing precise gaps could lead to incomplete fusion and stress fractures during operations.

Joint Excessive Welding

Excessive deposition of weld material can cause dimensional distortion, inconsistencies, or even interference within the piping system.

Components Misalignment

Pipes and fittings that are not aligned properly have the potential to create uneven mechanical strength at the joint, causing excessive stress and weakness.

Pre-Weld Cleansing Neglect

Not cleaning thoroughly the surfaces to above-weld standards risks weakening joints and contamination, leading to failure later.

Inappropriate Material Application Welding Methods

Applying inappropriate material application methods can result in defects like porous structures or cracks forming due to structural weakness.

Not Performing Weld Inspection After the Weld Has Been Done

Not performing tests like non-destructive tests or visual examinations ignores critical issues, as well as unaddressed potential risks.

Filler Material Wrong Use

Weld filler materials differ in application based off of structure and integrity. Selecting inappropriate ones compromises the weld’s chemical compatibility, structural and integrity.

Neglecting Boundless Expansion Consideration

In neglecting expansion caused by heat post installation consideration could lead undue joint stress and weakened joints during operational temperatures.

Socket Installation in Blurred Conditions

Sockets installed during dirty with moist or windy conditions could impede exposure to proper weld lengthy causing weaken welds lifebuoy.

Ensuring a Leak-Free Socket Weld

To maintain a leak-proof socket weld, it is vital to follow these procedures carefully:

Surface Preparation

Ensure that the socket and pipe surfaces are scraped clean of any dirt, grease, or other unwanted materials. Adequate preparation guarantees sufficient penetration during welding and prevents the formation of voids.

Maintaining Alignment

Control the alignment of the pipe with the socket while ensuring there is space for the recommended gap for thermal expansion so as not to incur any stress.

Selection of Filler Metal

Fillers that are not chemically similar to the base metals used may lead to loss of strength at the weld pool during operational conditions of temperature and pressure, hence a compatible filler should be selected. The weld zone should not experience loss of integrity.

Adopt Proper Welding Techniques

Use appropriate and documented welding procedures for the materials and service conditions. Ensure proper heating is provided at each stage of the welding operation for uniform welding.

Post-Weld Inspection

Make initial inspections and apply methods of non-destructive testing such as dye penetrant testing to check for internal leaks and overall quality assurance.

Durable and leak-free socket welds may be achieved by following the practices outlined above.

What Are the Typical Applications of Socket Welds in Piping Systems?

Using Socket Welds in High-Pressure Systems

High-pressure systems often utilize socket welds because of their strong connections that are reliable, leak proof, and easily maintained. This is especially the case with steam, hydraulic fluids, and gases. Socket welds are also suited for steam pipes and of 2 inch diameter or lower, being frequently needed in places with high pressure and stress requiring a failure proof joint. Socket welds greatly reduce the chances of leakage and are thus apt for vital piping structures used in industries and power generation plants.

Role of Socket Welds in Pipe Expansion

Socket welds facilitate pipe expansion by permitting a securely sealed and pliable joint to manage thermal stresses. Their resilience protects against joint failure attributed to changes in temperature and pressure—and therefore makes socket welds ideal for high-stress applications critical to system integrity. Their design also provides dependability in thermally cyclically strained environments.

Why Use Socket Welds in Small Diameter Pipes?

Due to their reliability, ease of installation, strength, and effectiveness for high-pressure and high-temperature conditions, socket welds are ideal for small diameter pipes. In particular, small diameter pipes that are used in critical industries require a dependable solution, and socket welds provide utmost reliability. Socket welds create a strong, leak-proof joint, which is critical for piping systems in these industries. Furthermore, the simple insertion and weld process makes socket welds practical for precise and durable applications. Along with this, socket welds ensure proper alignment of the pipes which helps in stress point reduction, thereby enhancing system integrity.

Choosing the Right Socket Weld Flanges and Fittings

How to Select the Proper Diameter for Socket Weld Flanges

Pipe Size Compatibility

Confirm the flange socket weld diameter aligns with the nominal pipe size to enable efficient operation and functioning.

Pressure Rating Requirements

Ensure that the selected diameter corresponds with the system’s pressure class, as socket weld flanges have pressure rated variants between 150 to 2500 pounds.

Material Specifications

Verify the proper material grade in relation to the operational temperature, pressure, and media which will be conveyed within the system for best compatibility.

Thickness Alignment

Ensure the flange diameter and the wall thickness of the pipe are matched to maintain even load distribution and aid in firm joint fastening.

System Design Standards

Use industrial benchmarks such as ASME and other pertinent technical documents while choosing a diameter that meets the required systemic parameters to maintain trust in industrial quality and safety.

Application-Specific Needs

Examine the operating environment and flow parameters carefully to select the diameter that satisfies your design needs.

Evaluating these factors will help ensure optimal selection while improving the performance and reliability of the piping system.

The Role of Socket Weld Flanges in Leakage Prevention

Socket weld flanges are important in avoiding leakage in piping systems because they provide a connection that is secure and dependable. Their design incorporates a recessed socket, which enhances structural integrity, especially under thermal changes, by securing the pipe within tight gaps. Moreover, the additional fillet weld strengthens the connection around the flange-pipe interface, further decreasing any chances of leakage. These features make socket weld flanges ideal for high-pressure, small-diameter pipelines.

Understanding the Types of Socket Weld Flanges Available

Socket weld flanges have different types that serve for specific purposes:

Raised Face (RF): Widely applied due to their effectiveness in focusing thrust on a minimal surface area. Useful for general pipelines and medium-pressure service.
Flat Face (FF): Best for situations where the abutting surfaces need to be parallel for uniform contact pressure, which is preferable in low pressure systems.
RTJ (Ring Type Joint): Provided with a groove for installation of a metallic ring, which can be compressed to provide a leak-proof joint. Used in high-pressure and high-temperature applications.

Choosing the right type of socket weld flange is determined by the needs of operations like pressure, temperature, and details of the piping system.

Frequently Asked Questions (FAQs)

Q: What are socket weld fittings, and where are they used?

A: Socket weld fittings are classified as SW fittings, and are used to join smaller diameter pipes in high pressure systems. SW fittings ensure a leak proof and secure attachment as the pipe is inserted into the fitting eliminating the need to bevel the pipe ends. SW fittings come as elbows, tees, and couplings and are used in pipe network applications.

Q: How does a socket weld differ from butt weld fittings?

A: In a socket weld fitting, the end of the pipe to be welded is placed into a fitting groove, allowing the fitting to be welded without the presence of beveling. Butt weld fittings lie at the opposite end of the spectrum, as they require both pipe ends to be joined by direct welding after beveling the edges. These are intended for larger diameter pipes and provide a more seamless appendage.

Q: Why is an expansion gap necessary in socket weld fittings?

A:The expansion gap is permission space between the pipe and the socket shoulder that thermal strain due to the heat to be emitted by the pipe is fully accommodated. The stress on the weld joint due to expansion with thermal lift is relieved which helps preserve the integrity of the silicone while evenly spreading the internal stresses without damaging the fitting.

Q: What role does a welder play in installing socket weld fittings?

A: The responsibility of a welder includes mounting the socket fitting and the pipe together by means of weld metal at the section. They ensure that a smooth finish is filed so that there will be no leakage of fluid that will be carried by the pipe and examined for the strength of the segment of the pipe that will be incorporated into the system by the network.

Q: What are socket weld reducing tees used for?

A: Socket weld reducing tees are employed for the purpose of joining together three sections of pipe with differing diameters and guiding flow of the fluid passage within the system. This fitting is particularly advantageous when there is a need to lower the pipe diameter so that the smaller pipes can be added or to merge different lines.

Q: Are socket weld fittings applicable for high-pressure systems?

A: Socket weld fittings are capable of handling high pressure systems as they are designed to withstand high-pressure systems. Their weld pipe fitting construction provides a break-proof seal at the zone where the pipe is inserted which meets the psi demands of rugged utilization such as industrial piping systems.

Q: What piping materials can be used with SW pipe fittings?

A: SW pipe fittings are made of steel as well as stainless steel, thus compatible with both. These materials are often used in environments that require a strong and reliable connection which is suitable for fluid and gas transport systems.

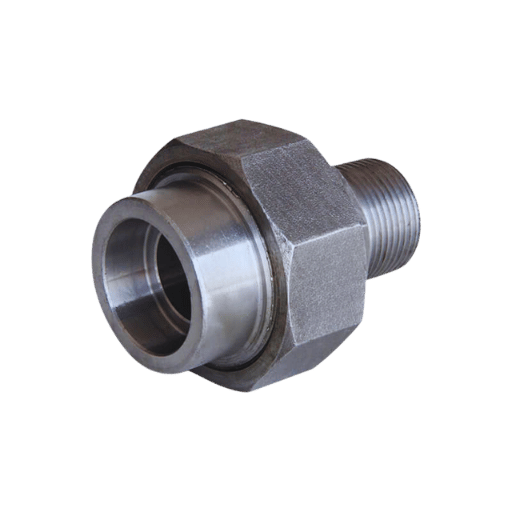

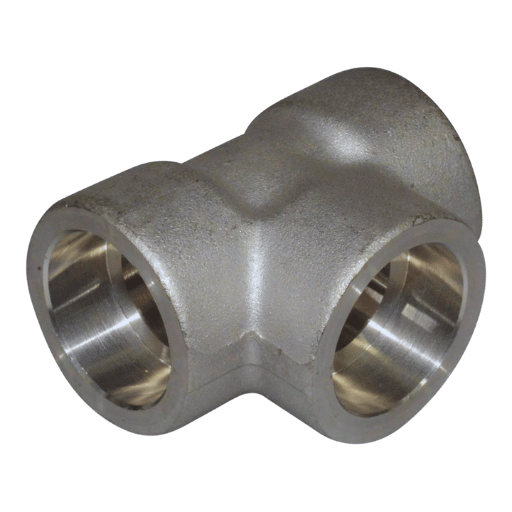

Q: What are the advantages of using socket weld tees in pipe systems?

A: The use of socket weld tees in pipe systems is advantageous since they join three pipe lines at the 90-degree angles. This configuration enhances fluid distribution, and both regular and reducing tees can be used to facilitate various flow requirements and pipe diameter transitions.

Q: What are the common types of SW pipe fittings?

A: It consists of elbows, tees, couplings, reducers, and caps. These fittings come in configurations in multiple varieties of shapes and sizes to fulfill different application requirements, such as joining, redirecting flow, or terminating sections of pipe within a network.

Q: Can all systems use socket weld fittings?

A: They would be most useful in smaller pipes and high-pressure confined systems, as they offer solid versatility and security. Larger diameter pipe systems are better fitted with butt weld fittings due to their more seamless connection and strength.
