Professionals in construction, manufacturing, and engineering must know the dimensions and characteristics of industrial materials. This article discusses 6-inch Schedule 40 steel pipes, a widely used pipe because of its availability for different project requirements and durability. Considering the features of the pipe and its many characteristics will come in handy whenever issues regarding fluid transportation, construction, and so forth are taken into consideration. The article will contain product measurements, product characteristics, and performance standards, all listed in an easy-to-comprehend manner. With this information, all interested persons will be able to make an informed guess as to the selection and uses of 6-inch Schedule 40 pipe.

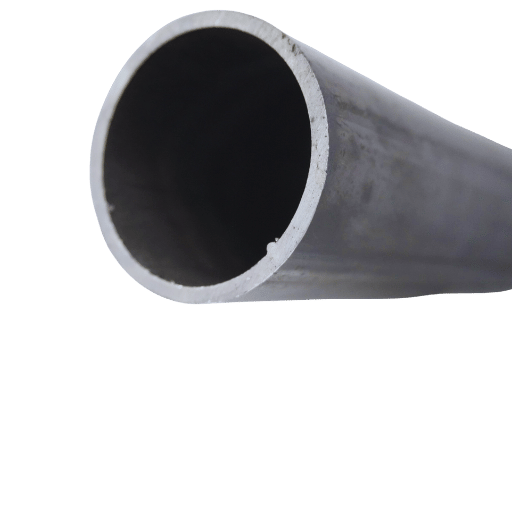

What is a 6 Inch Schedule 40 Steel Pipe?
A 6-inch schedule 40 pipe is typical, which comprises a radius of 6 inner inches and lining standard requirements called schedule 40, which defines the wall thickness. The schedule takes into account the strength and endurance of the pipe, making it applicable in a wide range of sectors, including fluid transport, construction, and mechanical tasks. Its dimensions, coupled with the thickness of the walls, allow it to withstand much pressure without inappropriate invasiveness in the space and requirements of installation, along with corrosion with standard accessories. One very popular and widely used standard is Schedule 40 because of its universal application and reliable quality.
Definition and Characteristics of Schedule 40 Steel Pipe
Steel pipes with schedule 40 specifications and other specifications are typical of those that have a wall thickness sufficient for a number of applications. These pipes have a medium wall thickness and, as such, they offer a compromise of strength and weight. Due to the fact that for many users they are durable and can fit well with most fittings, these pipes can be used in plumbing, construction, as well as industrial works. The schedule 40 steel pipes can withstand a certain pressure that is within their working range and hence are used in many sectors.
Applications and Common Uses of 6 Inch Schedule 40 Pipe
- Plumbing Networks:
The thickness of schedule 40 pipe presents dynamism under high durability and resistance to pressure, thus it finds its constant application in both dwelling and industrial potable water supply and sewerage systems. - Load Bearing Frames:
These are frequently used in building for the purpose of creating robust wooden or metal structures designed to carry the load.
- Water Irrigation:
These systems are applied in agriculture to supply water to places that are far away from the source.
- Industrial Piping Systems:
These systems are mainly centered on the transportation of chemicals, gases, oils within the industrial applications that require moderate pressures.
- Bespoke Metal Works:
Whereas this can be freely welded and cut, this is one of the tools in custom metal fabrication and assembly.
Comparison with Other Pipe Sizes and Schedules
Various nominal pipe sizes (NPSs) along with their multiple thickness walls may require various pressure and wall thickness ratings that are in schedule 5, 10, 20, 40, 80, 120, and inland 160 for their various applications.
| Parameter | 6″ Sch 40 | Sch 80 | Sch 10 | Sch 160 |
|---|---|---|---|---|
| NPS (in) | 6 | 6 | 6 | 6 |
| OD (in) | 6.625 | 6.625 | 6.625 | 6.625 |
| Wall (in) | 0.280 | 0.432 | 0.134 | 0.719 |
| ID (in) | 6.065 | 5.761 | 6.357 | 5.187 |
| Weight (lb/ft) | 18.97 | 28.55 | 12.73 | 45.39 |
| Pressure (psi) | 2071 | 3375 | 1000 | 5000 |
Understanding the Dimensions of 6 Inch Schedule 40 Steel Pipe
How to Determine the Nominal Pipe Size and OD
To find the nominal pipe size (NPS) and outer diameter (OD) of a 6” Schedule 40 Steel pipe, first we need:
- Nominal Pipe Size (NPS): This is the standard size used to describe the approximate pipe diameter. The Nominal pipe size for the steel pipe with 6 inches of Schedule 40 pipe is 6 inches.
- Outside Diameter (OD): This is the actual size of any pipe outside or the thickness of the wall of its circumference. The outer or external diameter of this particular pipe with a schedule 40 of 6 inches is 6.625 inches (168.28 mm).
These dimensions have been specified in patterns (ANSI) that are applicable in any selection or design of pipe systems. Depending on the wall thickness, which is higher in SCH 80 as compared to SCH 40 pipes, one can use a schedule 80 or a schedule 40 pipe.

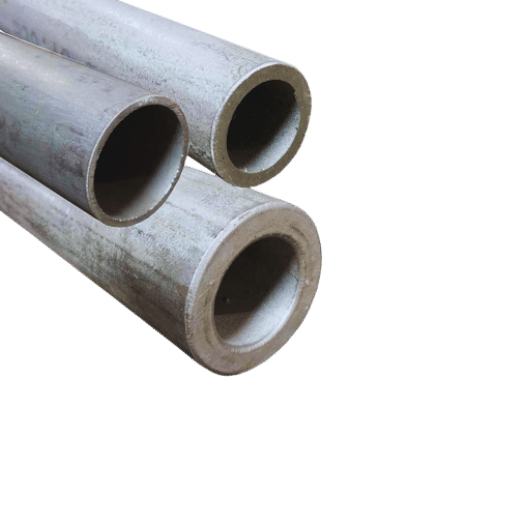

Exploring Wall Thickness and Its Importance
It should be emphasized that Pipe strength, durability, and the ability to withstand pressure are strongly influenced by the wall thickness. Such pressure can be internal and external, depending on the service of the pipe under consideration. For example, as the thickness is increased, the pressure it can withstand also rises, so being a solution for cases where a small bore pipe has to deal with very high pressure, especially during width and height comparisons of this pipe with the application. On the other hand, when dealing with low pressure, trying to remain thinner is inevitable to save material expense of the system.
There are standards, including the American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME), which stipulate the thickness of the walls to be used in regard to the application, type of fluid, temperature, and the pressure that will be used. The choice of wall thickness is an important consideration in the design of the system, as it eliminates the possibility of failure and makes the system efficient.
Using a Pipe Size Chart for Accurate Measurements
Generally, a pipe size chart is an efficient tool in understanding which pipe size is used for a particular task. In relying on a pipe size chart, one has first gotten to find out about the nominal pipe size (NPS) along with the schedule; this defines the diameter and thickness of the pipe wall. The chart should cross-reference these numbers to give the outer diameter (OD), inner diameter (ID), and all other reference measurements. Make sure that the measured dimensions go to flow capacities and pressure requirements of the system. Having a standard chart by ANSI and ASME gives a repeatable and reliable method for producing fittings.
Technical Specifications and Standards for Schedule 40 Pipes
Understanding ASTM and ASME B36.10 Standards
B36.10 standard of the ASME states the sizes of a nominal steel pipe, determining its wall and outside diameter. ASTM standard states the maximum length of pipe section and provides the testing methodology for assessing the mechanical, chemical resistance, and other physical properties of the pipe section. Pipe sizing as well as the inspection, installation, and performance of Schedule 40 pipes, while keeping them in line with best practice as well as safety assurance, offers all iron and steel pipes recommended to the user.
What is the Specification for Schedule 40 Carbon Steel Pipe?
The specifications of the Carbon Steel schedule 40 pipes are in relation to their dimensions, wall thickness, weight, the material grade, chemical composition, mechanical properties, and the many uses. The major properties have been compactly presented in a table as seen below;
| Key Point | Details |
|---|---|
| Material | ASTM A53, A106 |
| Wall | Nominal thickness |
| Diameter | Varies by size |
| Weight | Per foot varies |
| Carbon | Max 0.25% |
| Manganese | Max 0.95% |
| Phosphorus | Max 0.05% |
| Sulfur | Max 0.045% |
| Tensile | 60,000 PSI min |
| Yield | 35,000 PSI min |
| Applications | Structural, gas |
| Pressure | Moderate |
The Role of ANSI in Pipe Specifications
The American National Standards Institute (ANSI) performs a significant function in pipe technical specifications by making dimensions, designations, and terminologies generally accepted across industries. According to the partnership, the nominal size, wall thickness, and outer diameter of the schedule 40 carbon steel pipes are defined by ANSI. Standards ensure that components are manufactured consistently, which helps build systems efficiently without compromising on safety and operational parameters.
Weight and Pressure Considerations for 6 Inch Schedule 40 Pipe
How to Calculate the Weight of Schedule 40 Pipe
Weighting of 6-inch Schedule 40 pipes is based on nominal size, wall thickness, and density of the material. A conventional formula used for approximate pipe weight estimation is:
Weight per foot (lbs/ft) = (Pipe Outer Diameter – Wall Thickness) × Wall Thickness × 10.69
For a 6-inch nominal size pipe, Schedule 40 has an outer diameter of 6.625″ and the wall thickness is 0.280″. Being these actual parameters:
Weight per Foot = (6.625 – 0.280) × 0.280 × 10.69
Weight per Foot ≈ 17.62 lbs/ft
This value is a mere estimate per foot, meaning that if one wants to know the total weight of pipes, they had to multiply this estimate by the length of pipes present in feet. Manufacturer’s weight data should always be referred to for exact pipe weights, as there may be minor variations.
Exploring Schedule 40 Pipe Pressure Ratings
There are five standard pressure ratios for Schedule 40 pipes, all dependent upon material and pipe sizes:
- PVC Schedule 40 Pipe
Most of these common polyoils in smaller castings of such a pipe have a pressure limitation of 450 psi at a temperature of 73 degrees Fahrenheit. As the size of the pipe becomes larger, the pressure supported would consecutively lessen.
- Steel Schedule 40 Pipe
Given its size, its grade, and the temperature of operation, it may usually accommodate pressures up to 2,000. - Stainless Steel Schedule 40 Pipe
Small sizes offer maximum pressure ratings to about 2,300 psi, depending upon temperature and use.
- Copper Schedule 40 Pipe
Normally rated up to 400 psi, but variations are influenced by temperature and methods of fitting.
- CPVC Schedule 40 Pipe
Maximum pressure rating is 400 psi at 73°F, but can be reduced at elevated temperatures due to the limits of material thermal.
Important Note: Always consult specific pressure capacities as per the equipment manufacturer to suit accurate applications.
Factors Influencing Pipe Weight and Pressure Capacity
Material Composition
The material for the pipes is proportional to pipe weight and pressure capacity and, so to say, its opposing counterpart: PVC, CPVC, copper, or steel. Materials have different densities and structural properties; hence, they allow performance.
Wall Thickness
Thickness in the cross-sectional area of the pipe wall is a direct factor contributing to its pressure capacity. The thicker the wall, the higher pressure it can endure, but at the expense of increased weight of the pipe.
Temperature Conditions
Materials can lose some strength capacity to sustain pressure at elevated temperature-related operating conditions. As a matter of example, plastics like PVC and CPVC lose their strength at elevated temperatures.
Pipe Diameter
Larger-diameter pipes tend to have decreased pressure capacity and increased weight because size increases both the force applied over the area and the volume of material present.
Where to Find Schedule 40 Steel Pipe Suppliers
Top Suppliers of Schedule 40 Steel Pipe
If you are looking for reliable suppliers of Schedule 40 steel pipe, then I advise you to check out Balingsteel. They carry a wide assortment of fine steel pipes for different applications, premium services, and good prices.
What to Look for in a Supplier of Schedule 40
The following are the key factors to consider in any supplier selection when buying Schedule 40 steel pipes:
✓ Quality Assurance
Ensure that the supplier offers certified materials recognized as high-grade by industry standards. Spy for certifications such as ISO standard or ASTM standards for materials that conform to A53 Grade B specifications.
✓ Inventory and Availability
Verify that the supplier has adequate inventory of the Schedule 40 steel pipes in different sizes so that they do not delay during your project requirements.
✓ Customer Support
Opt for a supplier that gives technical support and can answer inquiries with regard to scheduling and the thickness of pipe.
✓ Pricing Transparency
Go for suppliers who promote pricing that is reasonabl,e with a clear, detailed breakdown of costs to prevent any hidden charges.
✓ Delivery Capabilities
Examine their shipping and logistics competence so that one can hold them to account when it comes to secure delivery on time to your doorstep.
Pro Tip: Give higher preference to suppliers who enjoy a good market reputation, from positive customer reviews to reliable service rate records, all matter.
How to Ensure Quality and Specification Compliance
- Define Clear Requirements: In writing, establish detailed specifications and quality standards so that all parties involved may understand the expectations placed on them.
- Validate Suppliers: Check suppliers from time to time to make sure they conform in their processes to your quality standards.
- Demand Certifications: Get certificates, such as ISO standards, in an attempt to make sure the suppliers have conformed to industry-specific standards.
- Inspect Deliveries: Quality checks must be carried out upon receipt of goods so that any deviation may be immediately detected and resolved, as per API 5L.
- Feedback Loops: Keep an open line of communication with suppliers regarding quality issues and improvements.
