The Ultimate Guide to Welded Neck Flange

Weld neck flanges serve as a valuable component within the piping and engineering industries due to their true and lasting nature when placed in high-pressure environments. Regardless of whether you are an experienced mechanical engineers or just beginning, these fundamental pipe elements are a necessity to enhance productivity and ameliorating plant safety in various industries. This post extensively clears up all the uncertainties one might have concerning weld neck flanges—starting from what they are and their functional usage and down to what other pipe-flange connections leave out as opposed to these weld neck type of connections. Hopefully by the end of this blog, you will have the necessary competence that is needed in designing any complex systems because of the new wrench you have been given.

What is a weld neck flange?

Contents show
What is a weld neck flange

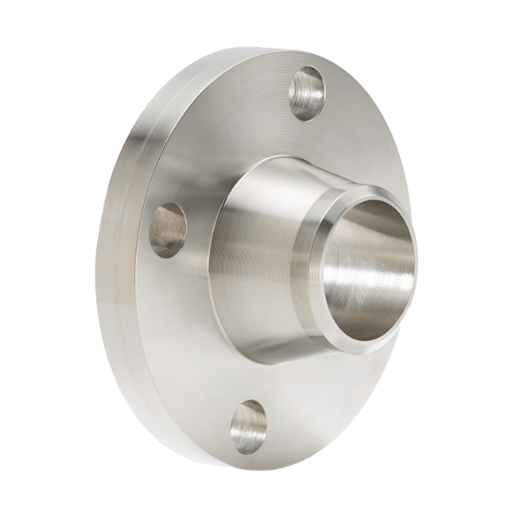

What is a weld neck flange

A weld neck flange is a specialized flange typically utilized in severe-service and high-pressure applications. The flange has a long beveled hub serving to provide additional reinforcement to the piping thereby reducing the load on the base of the flange. This feature gives them tight joint connections that are a good fit for temperature extremes, pressure cut-offs and even hazardous gases. Since weld neck flanges have great strength, they can very easily be attached to the pipe and help in supporting the structure. Owing to the factors of capacity and robustness, they are consumed the most not only in oil & gas but in chemicals as well as power generation.

Understanding the weld neck design

The weld neck flange is engineered to withstand challenging conditions across diverse industries by offering exceptional strength and durability. Its distinguishing feature, the long tapered hub, redistributes mechanical stress and minimizes the risk of fatigue failure, especially under high-pressure or high-temperature scenarios. This structural advantage is further accentuated by its full penetration weld to the pipe, which creates a robust, leak-proof seal.

According to recent data, weld neck flanges are most effective in systems that deal with pressures exceeding 400 psi and temperatures as high as 1,000°F, underlining their resilience in extreme environments. The precise bore of the flange aligns perfectly with the pipe, ensuring smooth fluid or gas flow and virtually eliminating turbulence, which could otherwise erode the pipeline over time. Materials such as stainless steel, carbon steel, and alloy steel are commonly used for manufacturing weld neck flanges, meeting specific requirements like corrosion resistance or thermal expansion.

Utilized extensively in critical systems such as oil refineries, offshore platforms, power plants, and chemical facilities, weld neck flanges are often subject to stringent industry standards, including ASME B16.5 and API specifications. Such regulations ensure their compatibility and safety across applications, delivering long-term reliability for infrastructure that cannot afford failure.

Comparing weld neck flanges with other flange types

When comparing weld neck flanges to other types of flanges, their unique design and application advantages stand out. Weld neck flanges are characterized by their long tapered hub, which provides a smooth transition from the thickness of the flange to the pipe. This design minimizes stress concentration, making them particularly suitable for high-pressure and high-temperature applications. For example, in systems involving corrosive materials or extreme thermal conditions, weld neck flanges outperform slip-on or socket weld flanges due to their robust integrity and ability to resist fatigue and cracking over time.

Slip-on flanges, by comparison, are cost-effective and easier to install due to their simpler design. However, they lack the structural strength needed for severe service conditions. They are typically used in lower-pressure systems or non-critical applications where durability is not a prime concern. Socket weld flanges, often used in small-diameter pipelines, provide excellent strength but can have limitations in terms of inspection and cleaning, making them less ideal for processes requiring frequent maintenance.

Blind flanges are another commonly used type, primarily for sealing off a pipe’s end. While blind flanges are versatile and often utilized in testing and maintenance scenarios, they do not offer the flow alignment benefits seen with weld neck flanges.

Data from industry studies frequently highlight the reliability of weld neck flanges in systems encountering extreme operational stress. For instance, in oil and gas pipelines where pressure ratings exceed 5,000 psi or temperatures reach upwards of 1,000°F (537°C), weld neck flanges are often the preferred choice. This contrasts with slip-on or lap joint flanges, which generally operate efficiently within lower pressure and temperature thresholds.

Overall, the decision to use a particular flange type depends on the application’s operational requirements. For critical environments involving high pressure, high temperature, and corrosive materials, weld neck flanges offer unmatched reliability and long-term cost-effectiveness. Other flange types, while advantageous for certain conditions, do not provide the same level of performance under demanding circumstances.

Applications of weld neck flanges in pipe systems

Weld neck flanges are essential in a wide range of heavy-duty applications, as they can withstand harsh working conditions. These types of flanges are commonly used in the oil and gas, petrochemical, power generation, and water treatment industries, among others. Their geometry, which comprises a flange and a long conical hub without any sharp edges, prevents excessive deformation of the weld bead area; the ability of weld neck flanges to prevent any dislocations makes them applicable in high pressure and high temperature conditions.

It should be noted that in aggressive working conditions, weld neck flanges are particularly important in the oil and gas sector. This is especially so since higher pressures are involved, as may be the case in offshore drilling where pipe systems used for drilling activities can go up to 15,000 psi. In such applications, the most reliable option is the flange-welded connection of the flanges to the pipe. Weld neck flanges are also an excellent choice for applications including acid systems, which are primarily chemical systems, and chemical transport systems, such as but not limited to acid systems.

The next category in which weld neck flanges are significant is in power plants, where pipes, mainly steam lines, have a temperature of 750°F and above. Not only can such an almost seamless configuration accommodate high operating pressures, but the baffle also provides a means for the system to handle the excess. Similarly style welding fittings are applied in water treatment plants as well. They connect pipelines which have a large bore diameter in order to enable adjustment of water pressure in the system.

The application is not confined to the heavy industry rated, while flange types are often preferred in also air handling or coolant systems, construction weighing and safe transport of products, automotive chassis design etc. When considering all of these factors, weld neck flanges appear as a perfect solution for numerous pipework systems where very strong and tight connections are necessary.

How does a weld neck flange fitting work?

How does a weld neck flange fitting work

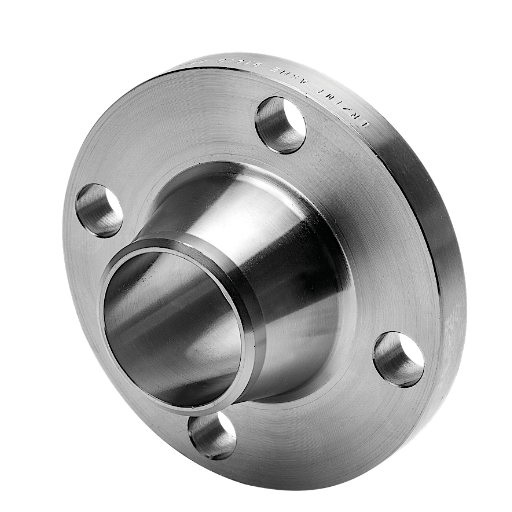

How does a weld neck flange fitting work

A weld neck flange fitting works by being welded directly to the pipe, creating a sturdy and leak-proof connection. The flange is designed with a long tapered neck that transitions smoothly into the pipe, distributing stress evenly across the joint. This ensures enhanced strength and durability, particularly in systems operating under high pressure or extreme temperatures. The precise welding process provides a secure seal, minimizing the risk of leaks or failures in the system.

The role of butt welds in weld neck connections

Butt welds are extremely critical in the construction and functional reliability of weld neck connections. They play a crucial role in creating a tight connection without any material compromises. This connection permits the pipe and the flange act as one piece of construction. It requires the beveled pipe ends and the chamfered neck of the flange to be welded which results in a smooth internal surface. The most important consideration is that the relative change in cross sectional area is to be performed without a part angle while inner and outer diameter changes remain the same. This helps to cut down on the eddies prevailing in the high fluid flow efficiency systems.

An exceptional aspect of weld neck connections is that they can be installed and operated in high load and high temperature conditions. Reports on the field have noted the applicability of butt weld joints for weld neck connections specifically, almost always all the way there the working pressure is more than 1500 PSI and up to temperatures of -50°F to 1200°F. Such connections are common in some sectors such as oil and gas, petrochemicals and also power plants among others whereby the aspect of reliability and safety is of great concern.

Not only that, further studies provide that butt welds are also good at increasing resistance to fatigue and vibration which is particularly important for applications experiencing dynamic loadings. These techniques also come with extra tests such as non-destructive examination (NDE), for example, radiographic, ultrasonic, magnetic particle, etc., to not only check the geometry but also quality of the weld. Such a weld would support the tubing without leaking, bending under pressure, or breaking even after those prolonged stresses were applied.

In such scenarios, while the first installation may call for highly skilled workers and perfection in their job, the prolonged life and no or less upkeep needed for buttweld joints in weld neck connections tend to make them the most economic for application in comprehensive piping systems. This has stood out by optimization as there is demand for these kinds of joints from the customer for not only the safety of machines, but also for the economy of project running.

Benefits of raised face weld neck flanges

Raised face weld neck flanges offer several distinct advantages that make them essential in demanding applications across various industries. Studies indicate that their design allows for excellent pressure containment and load distribution, which is critical in high-pressure systems. The raised face feature ensures a higher level of gasket compression, minimizing the chances of leaks, even under fluctuating temperatures and pressure variations.

Recent data highlights that raised face weld neck flanges are commonly employed in petrochemical plants, power generation setups, and rigorous offshore operations due to their reliability under extreme conditions. For instance, they can handle pressure ratings up to 2500 psi, significantly higher than many alternative flange types, making them ideal for projects where safety is a top priority.

Additionally, industry experts have noted that using raised face weld neck flanges in modern systems can streamline maintenance schedules. Their robustness means fewer replacements are required, and the tight sealing provides prolonged operational efficiency, reducing the total cost of ownership over the lifecycle of the equipment. These features continue to position raised face weld neck flanges as a preferred choice in high-stakes environments where performance and durability are non-negotiable.

Installation tips for weld neck flange fittings

Proper installation of weld neck flange fittings is essential to ensure a secure and leak-proof connection, especially in high-pressure or critical environments. Below are detailed tips to guide you through the installation process effectively:

  1. Surface Preparation

Begin by ensuring the mating surfaces of both the flange and the pipe are clean, free from dirt, debris, or any corrosion. Imperfections on the sealing faces can compromise the integrity of the connection and lead to leaks.

  1. Alignment

Proper alignment between the pipe and the flange is crucial to avoid stress on the flange and connected equipment. Misalignment can lead to uneven load distribution and eventual failure of the system. Use alignment tools or precision measurement devices if needed.

  1. Gasket Selection

Choose the appropriate gasket material based on the operating conditions, such as pressure, temperature, and fluid type. For example, spiral wound gaskets are often recommended for high-pressure applications due to their excellent sealing properties and flexibility.

  1. Torquing Bolts

Torque flange bolts evenly and in a crisscross pattern to achieve uniform pressure on the gasket. Uneven bolt tension can lead to gasket distortion and inadequate sealing. Utilize calibrated torque wrenches to achieve the manufacturer-recommended torque values.

  1. Welding Guidelines

For weld neck flanges, the welding process is critical. Employ high-quality welders and follow standard welding procedures to ensure a strong, reliable joint. Post-weld heat treatment may also be required for materials subjected to high stresses or extreme working conditions.

  1. Leak Testing

Perform hydrostatic or pneumatic testing to verify the integrity of the connection after installation. These tests help identify potential issues before the system is put into full operation.

  1. Routine Inspections

Regularly inspect flange connections for signs of wear, corrosion, or leaks. Early detection of issues can save costs and prevent failure in critical systems.

What materials are used for weld neck pipe flanges?

What materials are used for weld neck pipe flanges

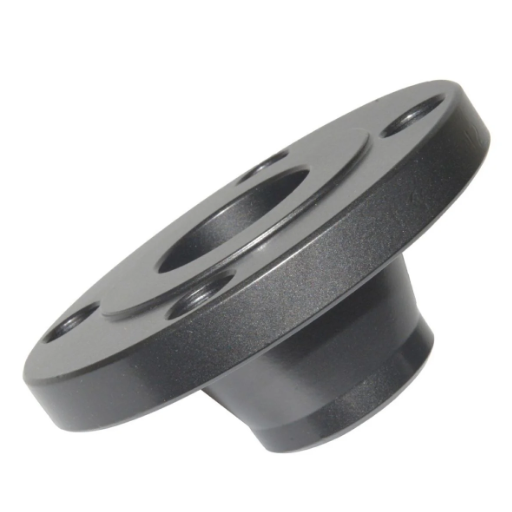

What materials are used for weld neck pipe flanges

Weld neck pipe flanges are commonly made from durable materials that can withstand high pressure and temperature conditions. The most widely used materials include:

  1. Carbon Steel – Known for its strength and affordability, suitable for various industrial applications.
  2. Stainless Steel – Provides excellent corrosion resistance, ideal for environments exposed to moisture or chemicals.
  3. Alloy Steel – Offers enhanced strength and resistance to extreme temperatures and pressures.
  4. Nickel Alloys – Used in highly corrosive environments due to their superior durability.
  5. Duplex Stainless Steel – Combines corrosion resistance with high mechanical strength, commonly used in marine and chemical industries.

The choice of material typically depends on the specific requirements of the application, including environmental conditions and system pressure ratings.

Properties of carbon steel weld neck flanges

Carbon steel weld neck flanges are recognized for their reliability and robust characteristics, making them a popular choice for various industrial applications. They are designed to withstand high pressures and extreme temperatures while ensuring a secure and leak-proof connection in piping systems. Here are the key properties and advantages:

  1. High Tensile Strength

Carbon steel has an impressive tensile strength range, typically varying from 485 MPa (70,000 psi) to over 965 MPa (140,000 psi), depending on the grade of steel used in the flange. This property ensures the flanges can handle substantial mechanical loads without the risk of deformation or failure.

  1. Corrosion Resistance (With Coatings)

While carbon steel lacks inherent corrosion resistance compared to alloys, it can be coated with protective layers like epoxy, galvanization, or suitable chemical treatments. These coatings enhance durability in mildly corrosive environments.

  1. Temperature Tolerance

Carbon steel weld neck flanges maintain their structural integrity even under extreme conditions, tolerating temperatures ranging from -20°F (-29°C) to 1,000°F (538°C), depending on the specific alloy grade and treatment.

  1. Weldability and Connection Strength

The weld neck design allows these flanges to be seamlessly welded to pipes, creating a robust, stress-distributing connection. This structural efficiency makes them ideal for high-pressure applications, where safety and reliability are paramount.

  1. Wide Pressure Ratings

Carbon steel weld neck flanges are classified into various pressure classes (e.g., 150#, 300#, 600#, etc.), with Class 600 flanges supporting pressures up to approximately 1,480 psi at 300°F (149°C). Higher-rated classes can handle significantly greater pressures, depending on temperature conditions.

  1. Cost-Effectiveness

Compared to stainless steel or nickel-based alloys, carbon steel flanges provide an economical solution without compromising on essential strength and performance metrics, making them a cost-effective choice for bulk industrial applications.

  1. Compliance with Industry Standards

These flanges typically adhere to stringent international standards such as ASME B16.5 (Pipe Flanges and Flanged Fittings) and ASTM A105/A105M, ensuring reliability and uniformity in application.

Due to their combination of strength, customizability, and cost-efficiency, carbon steel weld neck flanges remain a go-to solution in oil and gas, power generation, chemical processing, and automotive industries. Proper material selection, maintenance, and usage significantly extend their lifespan and performance in demanding environments.

Advantages of using stainless steel for weld neck flanges

Weld neck flanges made of stainless steel are known to offer resilience and resistance to various elements that may affect their integrity and this makes them a product that cuts across largely all sectors including but not limited to those in the petroleum, water, and medical industries. The first key point is that of the high anti-corrosive nature generally present in stainless steel and in harsh environmental conditions particularly in wet conditions, chemicals besides the high content of salt such as those in the marine sector.

How is stainless steel is also another key component of its manufactureling Is that it has very strong Steel’s lightness enough strength compared to volume of material used. Both comes to the stainless steel of 304 and 316 which are very popular due to the fact that they are corrosion resistant and very temperature stable, where 316 stainless steel excellently performs in circumstances where the environment has chemical substances in excessive quantities. For instance, the use of even molybdenum, an alloying element has been concentrated on 316 stainless steel to further help in prevention of piting and crevice corrosion while working in chlorinated and salty environments.

Furthermore, the use of stainless steel in place of other materials with equally durable life and load carrying capacities results in long-term overall cost savings. Although the initial costs are high, but these are more than set off by the low maintenance costs and extended the flows of operations. Additionally, they assuredly maintain their strength when temperatures fluctuate, which makes them very dependable in the applications with thermal changes being expected. On the basis of the most recent surveys in the particular industry, stainless steel portions are usually functional past twenty years if kept and maintained appropriately, hence lowering the certain economic effects such as renewals and failures behaviours.

It is also worth noting that these structures can be made in almost any dimensions as the flanges are provided with high customization capabilities. Modern stainless steels have high machinability enhancement as inclusions like sulphur and selenium are inserted even in the higher grades. Continuous inflow of accurate market data considerably improves useful attributes like environmental friendliness, technical advances of flange design, and compliance with statutory emission norms.

Lastly, these flanges aid in green practices as stainless steel is very environmentally friendly, contributes significantly to recycling, and ensures minimum manufacturing waste. For this range of applications, the use of stainless steel is advanced coverage, flexible design, and long-term useful features and for these reasons the preference to weld neck flanges is preeminent in the extended use of these types of flanges.

Why choose a weld neck flange over a slip-on flange?

Why choose a weld neck flange over a slip-on flange

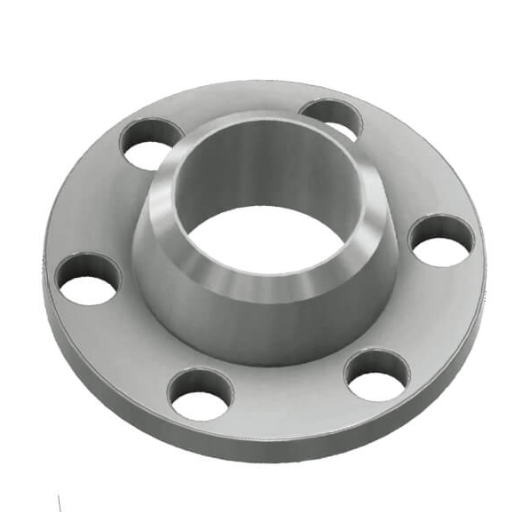

Why choose a weld neck flange over a slip-on flange

Compared to slip on flanges, weld neck flanges are more durable and have the least weakness. The extended taper of a weld neck flange exerts an even stress action on both the flange and the pipe which makes it quite a unique tenant for high pressure or high temperature systems against the fatigue failure. What is more, weld neck flanges even provide a hermetically sealed pipe connection, that is, there are very little to no leakages in the critical areas such as the oil and gas or chemical industry. However, the slip-on flanges are easier to fit and costs less at the beginning, but the weld neck flange is better for severe applications because it is real and does not require maintenance or problems of leak renovation.

Comparing pressure handling capabilities

When considering the differences between weld neck flanges and slip-on flanges, they both vary with respect to pressure services offered and are thus preferred in different cases. Weld neck flanges are mainly used for high pressure services as the construction of a weld neck flange has a tapered improvised pipe that extends into the bore of the flange. This construction helps in the prevention of stress concentration and resulting failures and is thus suitable for pressures above 5000 psi and temperatures beyond 400°F as commonly occurs in most chemical and oil industries.

However, some such as slip-on flanges are more ideal for applications of lower internal pressures. Although the latter are cheaper and easier to install than the former, they do not have the rich construction as that of the weld neck flange. It can be noted that slip-on flanges usually provided in tolerance to withstand internal pressure below approximately 1500 psi only. As these are not of butfusion design, where stress is the cause of failure, buttwelded slip on flanges are not suitable for mission critical purposes from a coding and welding point of view.

According to uk labs weld neck flanges were considered more reliable and served for a longer span when subjected to extreme operating conditions as compared to slip on flange. Over time, the economic benefits are even greater considering the safety and reliability of the system. The use of this or that type of flange, of course would depend with the pressure level, the working environment and how long the flange should serve the steel stands.

Understanding stress concentration in different flange types

Stress distribution is, in essence, different in every kind of flanges with primary regard to their design and operating conditions. The primary concern, for me, is that the weld neck flanges might prove most value added when distributing stress more homogeneously. That is to say, these are the prime candidates for high pressure applications. While the slip on flanges can do the same, the stress concentration would be much more at the hub because of their basic structure which is why they might only be used in simpler applications. As with so many things in engineering, so much comes down to the right flange choice, if only one can take due consideration of the particular system constraints and objectives that direct our inherent satisfaction.

Cost analysis: weld neck vs slip-on flanges

Weld neck flanges are costlier upfront but offer durability and strength for high-pressure systems, while slip-on flanges are cheaper initially but may incur higher maintenance costs over time.

Key Point

Weld Neck

Slip-On

Cost

Higher upfront

Lower upfront

Strength

High

Moderate

Pressure

High tolerance

Low to medium

Installation

Complex

Simple

Durability

Long-lasting

Shorter lifespan

How to ensure weld neck flanges meet ASME B16.5 standards?

How to ensure weld neck flanges meet ASME B16.5 standards

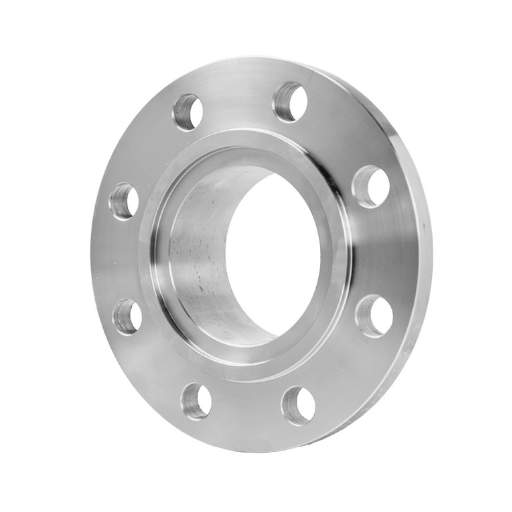

How to ensure weld neck flanges meet ASME B16.5 standards

To ensure weld neck flanges meet ASME B16.5 standards:

  1. Verify Material Certification: Confirm that the flange material complies with the specified grade and class in ASME B16.5, ensuring it is suitable for the intended pressure and temperature conditions.
  2. Inspect Dimensions: Check the flange dimensions, including bolt hole spacing, flange thickness, and raised face height, to confirm they align with ASME B16.5 requirements.
  3. Examine Markings: Ensure each flange is permanently marked with the manufacturer’s name, material grade, pressure class, and standard compliance (e.g., “ASME B16.5”).
  4. Conduct Quality Testing: Perform necessary tests, such as hydrostatic and non-destructive examinations, to verify structural integrity and conformity.
  5. Review Manufacturer Certification: Obtain and review the manufacturer’s certification documents, which validate compliance with ASME B16.5.
  6. Engage Qualified Suppliers: Purchase flanges exclusively from reputable manufacturers or suppliers experienced with ASME standards to minimize non-compliance risks.

By following these steps, you can ensure weld neck flanges meet ASME B16.5 standards and maintain system reliability and safety.

Key specifications and inspection requirements

To ensure weld neck flanges comply with ASME B16.5 standards and maintain system integrity, it is vital to focus on specific technical specifications and thorough inspection protocols. Below are key considerations:

  1. Material Composition

Verify the material composition of the flange. Common materials conforming to ASME standards include carbon steel, stainless steel, and alloy steel. For example, ASTM A105 is a popular specification for carbon steel flanges, ensuring strength and durability in pressure-containing applications. Always verify material certifications for traceability and conformity.

  1. Pressure Class Ratings

ASME B16.5 covers seven pressure class ratings, ranging from Class 150 to Class 2500. This ensures compatibility with varying operational pressures and temperature conditions. Be sure to select a pressure class that aligns with your system’s operational requirements to avoid over-pressurization risks.

  1. Dimensional Tolerances

Dimensional checks include measurements of flange diameter, thickness, bolt hole size, and facing type. For instance, raised face (RF) flanges have precise height and surface finish requirements for effective gasket sealing. Any deviation beyond defined tolerances can compromise sealing and lead to leakage.

  1. Surface Finish

The surface finish of mating flanges, particularly the gasket-sealing surface, is critical. ASME standards specify finish types such as serrated concentric or spiral finishes for superior gasket grip. This typically involves a roughness between 125-500 μinches (microinches) for optimal sealing.

  1. Non-Destructive Testing (NDT)

All weld neck flanges should undergo rigorous NDT techniques, including radiography or ultrasonic testing, to detect internal or surface defects. Magnetic Particle Testing (MPT) and Liquid Penetrant Testing (LPT) are additional methods recommended for identifying cracks or irregularities on the flange’s surface.

  1. Hydrostatic and Pneumatic Testing

Hydrostatic testing involves applying water pressure to assess the flange’s ability to withstand operational stress, whereas pneumatic testing uses compressed air under specific conditions. These tests confirm the flange’s reliability under pressure.

  1. Marking and Traceability

Proper marking is essential for traceability and compliance. The flange should have visible markings that include material grade, size, pressure class, heat number, and manufacturer details.

By adhering to these specifications and inspection requirements, you enhance the reliability, safety, and longevity of your systems. Always follow certified procedures and engage qualified personnel when inspecting and installing weld neck flanges.

Common flange face options and their applications

Choosing the right flange face is of paramount importance to the maintenance of a proper sealing for the system as well as system integrity. The flange face which one selects largely depends on factors such as the fluid that one is dealing with, design of the flange as well as the working pressure, etc. The hub and flange gearing becomes one of the most important aspects of flange design at this juncture. The following is a breakdown of some common flange face types along with their typical uses:

1.Raised Face

Raised face is the flange type widely used in process plants. The raised area is machined as a part of the flange and provides an upper face surface for the seat of the bolted joint. This in turn increases the strength of the seal. Such flanges are appropriate for low and moderate pressure and temperature systems (say up to 2,500 psi, 150-600 degrees F) and are especially preferred in the petrochemical process industry and water treatment plants.

2.Flat Face

The flat face flange has a flat surface which is mostly used on full faced gaskets. They are used in low pressure and low temperature systems like water works or utility applications. The advantage of this design is that it reduces unnecessary load at the flange joints, specifically in systems where cast iron is widely used.

3.Ring Joint Face

In RTJ flanges, the flange grooves are precision-machined to take a metal ring gasket. These kinds of flanges are used for very high pressure and high temp systems where size of the flanges is larger than 2mm. In industries such as oil and gas exploration and offshore drilling, these flanges are purposely cut for effectively lining system pipes. This mode of construction ensures no leakages even in very demanding conditions by creating a metal-to-metal seal.

4.Tongue and Groove Face (TG)

This is a gasket retainer flange: it has ridged and grooved surfaces in which gaskets fit. One common application is in pipelines carrying very hazardous or toxic substances for controlling leakage. This removes the risk of flange providing upon if pressure is contained.

5.Male and Female Face (MF)

This configuration is overused in the riveted connection of the steel for cylindrical shells and a male groove of the one flange slides into an outwardly opening shape, with a female ply one called as female. M&F provides an improvement in ease of fit providing naturally higher accuracy of fitment. They generally landscapes where leakages are to be avoided and which include structures such as heat exchangers and pressure vessels.

6.Lap Joint Face

There are welding flanges with lap joint only, in the case of to which, a rubber ring or full fac gasket can be inserted inside to protect the flange face, while another flange of the pipe has a standard or any other type of joint. These flanges are frequently used in items where the equipment is regularly removed for maintenance, such as in the food processing and drug manufacturing equipment.

Reference Sources

  1. Stress Corrosion Cracking Behavior of Welded Joints in 304 Stainless Steel Flange Neck on a Tandem Mixer
    • Authors: Yongcun Li et al.
    • Publication Date: April 17, 2024
    • Summary: This study investigates the stress corrosion cracking behavior of welded joints in 304 stainless steel flange necks used in tandem mixers. The research emphasizes the importance of understanding the mechanical properties and corrosion resistance of welded joints in industrial applications. The methodology includes experimental testing to assess the cracking behavior under various stress conditions, providing insights into the durability and reliability of welded neck flanges in practical scenarios(Li et al., 2024).
  2. Review Paper on the Failure Analysis of Weld: Neck Flanges
    • Authors: D. Noble et al.
    • Publication Date: October 8, 2014 (not within the last 5 years but relevant)
    • Summary: This review paper discusses various failure mechanisms associated with welded neck flanges, focusing on the analysis of weld integrity and the factors leading to failures. It compiles findings from multiple studies to provide a comprehensive overview of the challenges faced in maintaining the structural integrity of welded neck flanges(Noble et al., 2014).
  3. Stress Distribution Prediction of Circular Hollow Section Tube in Flexible High-Neck Flange Joints Based on the Hybrid Machine Learning Model
    • Authors: K. Dai et al.
    • Publication Date: October 1, 2023
    • Summary: This study employs hybrid machine learning models to predict stress distribution in circular hollow section tubes connected to flexible high-neck flanges. The research utilizes finite element analysis (FEA) to simulate the mechanical behavior of the joints under various loading conditions. The findings highlight the effectiveness of machine learning in enhancing predictive accuracy for stress distribution, which is crucial for the design and safety assessment of welded joints(Dai et al., 2023).

Frequently Asked Questions (FAQs)

Q: What is a Weld Neck Flange?

A: A weld neck flange is a type of flange with a long tapered hub that is used to connect pipes and other components to ensure a smooth transition of flow between different sections. It is designed for high-stress applications and is commonly used in high-pressure and elevated temperature environments.

Q: How does a Weld Neck Flange differ from a Slip On Flange?

A: A weld neck flange is welded to the pipe with a full penetration weld to provide structural integrity, making it suitable for high-pressure and high-stress applications. In contrast, a slip on flange is simply slipped over the pipe and then welded with fillet welds, making it less expensive and easier to install but less suitable for high-stress conditions.

Q: What are the advantages of using Weld Neck Flanges?

A: Weld neck flanges offer several advantages, such as their ability to handle high-pressure and elevated temperature applications, reduced risk of erosion and leaks, and compatibility with various pipe sizes and wall thicknesses. They also provide a smooth bore, reducing turbulence and minimizing erosion inside the pipe.

Q: What materials are used for Weld Neck Flanges?

A: Weld neck flanges are typically made from materials that can withstand high-pressure and high-temperature conditions, such as carbon steel, stainless steel, and alloy steel. The material choice depends on the specific application and the type of fluid or gas being transported.

Q: How does the inside diameter of a Weld Neck Flange affect its performance?

A: The inside diameter of a weld neck flange is designed to match the inside diameter of the steel pipe it connects to, ensuring a smooth flow of fluid or gas and minimizing turbulence and erosion. Accurate matching of diameters is crucial for maintaining system efficiency and preventing wear.

Q: What standards are followed for Weld Neck Flanges?

A: Weld neck flanges are manufactured according to various international standards, with ANSI (American National Standards Institute) being one of the most common. These standards ensure consistency in dimensions, materials, and performance, facilitating compatibility and interchangeability in piping systems.

Q: Are there any specific applications where Weld Neck Flanges are preferred?

A: Weld neck flanges are preferred in applications that involve high-pressure, high-temperature, or high-stress conditions, such as in oil and gas, petrochemical, and power generation industries. They are also used in situations where minimizing erosion and ensuring structural integrity are critical.

Q: Can Weld Neck Flanges be used with valves?

A: Yes, weld neck flanges can be used to connect valves to piping systems. The flange provides a secure and stable connection that can handle the operational pressures and temperatures typically encountered in such systems.

Q: How does the wall thickness of a pipe influence the choice of Weld Neck Flange?

A: The wall thickness of the pipe influences the design and selection of the weld neck flange. The flange must be compatible with the pipe’s wall thickness to ensure a secure connection and to withstand the operational pressures and stresses of the system.
