With regard to pipeline infrastructure, mitigating risk, maintaining durability, and ensuring performance call for 3LPE (Three-Layer Polyethylene) coated pipes, which are progressively becoming the cornerstone of industries such as oil and gas or water transportation due to their unrivaled protective coating 3LPE provides against corrosion and additional damages. Why exactly have these coated pipes soared in popularity? What characteristics make them zero ideal for harsh environments? Everything there is to know about 3LPE coated pipes, including their composition, benefits, and application across diverse industrial sectors, will be explained in this guide. After reading, you will understand how 3LPE technology is revolutionizing pipeline systems and how it can be leveraged to improve the value of your projects.

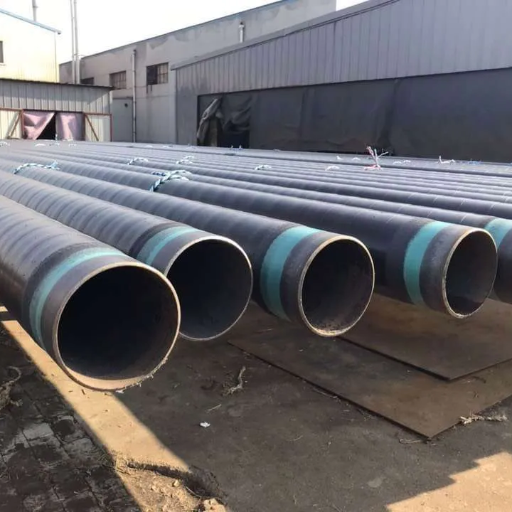

What is 3LPE Coating and How Does it Work?
3LPE coating, or Three Layer Polyethylene coating, is a protective system used for steel pipes. It comprises three layers which consist of: Fusion-bonded Epoxy (FBE) which acts as a base layer for corrosion protection, an adhesive layer, and finally, Polyethylene (PE) top layer which mechanically protects the pipes. This enables strong adhesion, excellent resistance to corrosion, and durability even in harsh environments which is ideal for pipelines.

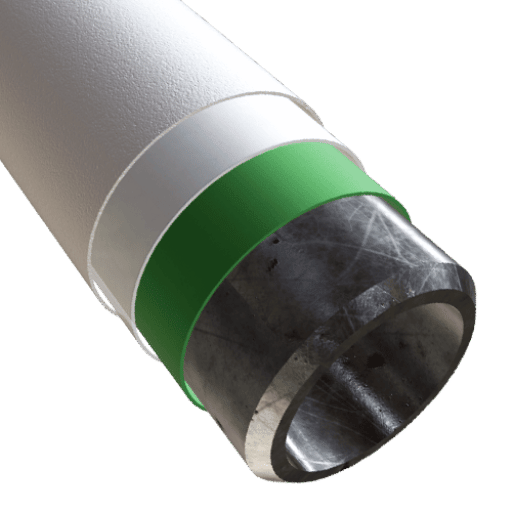

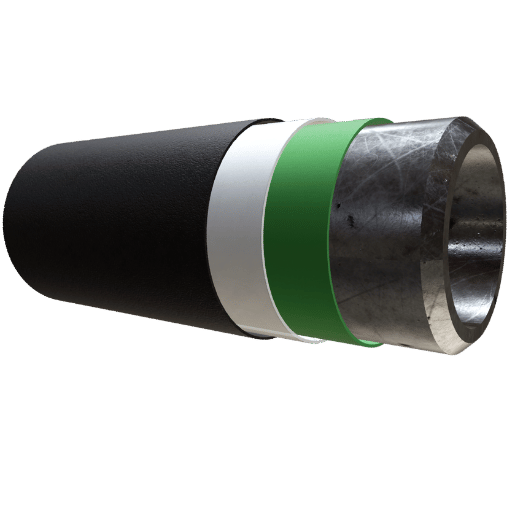

Three-Layer Structure of 3LPE
Understanding the three-layer structure of 3LPE coating is essential as it is created with steel pipelines in mind. Every layer is distinct yet integrally interconnected:
- Fusion-Bonded Epoxy (FBE) Layer: This is the lowest layer designated for interface with the steel pipe. It provides excellent corrosion resistance by acting as a barrier against water and harsh chemicals. Steel’s strong contact with FBE guarantees harsh and unpredictable circumstances will have no impact on the coating.
- Adhesive Layer: The adhesive layer sits above FBE under the PE layer. This layer’s purpose is very clear: ensure the layers are put together and cannot fall apart. So long as the adhesive layer does its job, the 3LPE system does not compromise which means this layer expands the strength and firmness of the entire system.
- Polyethylene (PE) Layer: The outer polyethylene layer provides strong mechanical protection. It prevents physical damage such as scratches and impacts. It also mitigates UV radiation and other weathering, which increases the durability of the pipeline.
The combination of the three layers creates an efficient and exceptionally durable coating which is extensively applied for pipelines in the oil, gas, and water transportation industries.
The Function of Polyethylene in 3LPE Coated Pipe
With regard to the 3LPE coating system, polyethylene is important because it acts as the outer layer, therefore, providing the protective durability needed with said critical durability. Recent studies and industry datapoints suggest that polyethylene increases a pipeline’s durability against harsh environmental factors such as extreme temperatures of -40°C to 85°C. Its flexibility reduces material strain even in highly dynamic conditions such as offshore or in seismically active zones.
Importantly, polyethylene offers outstanding protection against corrosion. According to leading industry publications on pipelines, the 3LPE coating could increase the service life of pipelines by 40 to 50 years with some publications stating even more when maintenance and operating procedures are taken into account. Peapod’s low moisture absorption rate coupled with adhesion are almost unrivaled having both measures less than 0.01% and strong shear forces creates a seamless barrier against the permeation of moisture or corrosive agents.
Moreover, polyethylene exhibits notable mechanical strength. Tests have shown that tensile strengths for polyethylene average between 20 and 30 MPa and elongation at break of 600% making it incredibly resilient to stress. Because of these remarkable properties, these 3LPE coated pipes not just become compliant with international standards but maintain compliance and the reliability issued by DIN 30670 and ISO 21809-1 making them some of the most dependable materials for use in the oil, gas, and water transport industries.
Comparison with Other Coating Techniques
Common coating techniques include 3LPE, FBE (Fusion Bonded Epoxy), PP (Polypropylene), PE (Polyethylene), and Liquid Epoxy.
| Parameter | 3LPE | FBE | PP | PE | Liquid Epoxy |
|---|---|---|---|---|---|
| Durability | High | Moderate | High | Moderate | Low |
| Temp. Range | Up to 140°C | Up to 110°C | Up to 150°C | Up to 50°C | Low |
| Flexibility | High | Low | Moderate | Moderate | High |
| Corrosion Res. | Excellent | Excellent | Excellent | Good | Good |
| Cost | Moderate | Low | High | Moderate | Low |
| Adhesion | Strong | Very Strong | Strong | Strong | Moderate |
| Application | Wide | Limited | Specialized | General | Specific |
Why Choose 3LPE Coated Pipe for Your Project?
3LPE coated pipes are beneficial for your projects because of their durability, high resistance to corrosion, and strong adhesion. They can maintain effectiveness within a wide temperature range of up to 140°C and their flexibility makes them easy to work with for diverse applications. Most importantly, 3LPE pipes provide a lower cost solution compared to other industrial grade pipes that ensures long-term reliability for multiuse in numerous infrastructure undertakings.
Benefits of Using 3LPE Coating on Steel Pipes
3LPE (Three-Layer Polyethylene) coating is an advanced industrial grade protective covering that steel pipes require for infrastructure projects. With 3LPE coatings, pipelines are now protected against moisture, chemicals, and harsh soil conditions. The use of 3LPE provides several benefits including extended age life for pipes. Research indicates that these protective coatings allow pipes to last for over 50 years without extensive maintenance, greatly reducing replacement and servicing costs.
Moreover, the 3LPE coating’s impact resistance features enable it to endure mechanical stress that occurs during handling and installation. For example, tests show that pipes 3LPE coated can withstand impact up to 15 Joules. Equally impressive is the thermal resistance of 3LPE, which permits operating temperatures up to -40°C to 90°C, with certain variants enduring up to 140°C in exceptional conditions.
In comparison to other methods, the coating ensures minimal emissions, aligning with sustainability goals for reduced leaching, making it environmentally friendly. Flexibility comes from the ability to be fitted on pipes of different diameters which can adapt to various projects including water, gas, and oil transportation. In addition, its low cost combined with reliable adhesion properties that minimizes installation time makes it favorable across the world.
The advancement provided by 3LPE enables industries to build critical infrastructures that are safer and more durable for the applications.
Durability and Mechanical Protection Features
As modern technological enhancements, 3LPE coatings have remarkable durability and mechanical protection, which safeguards pipelines from damage even under intense conditions. Recent industry reports show that 3LPE coatings are effective at both hot and cold temperatures, enduring between -40°C to 80°C. Moreover, the coating’s abrasion resistance helps pipelines to withstand harsh and rugged terrain, such as rocky and mountainous regions.
The combination of the polyethylene layer and epoxy primer mitigates damages while increasing impact resistance, making it easier for the pipelines to withstand rough handling during transport or installation. According to research, 3LPE systems are designed to withstand abrasion up to fifty times better than traditional coatings. These coatings also maintain exceptional corrosion resistance in saltwater, chemical, or acidic soil environments, further protecting pipelines and increasing their expected lifespans by over three decades.
Industries now working with 3LPE technology are able to trust them to endure more rigorous operational and environmental conditions, all due to the constant improvements being made to the technology. This dual reliability and cost-effectiveness makes 3LPE coatings an imperative asset for modern pipeline infrastructure.

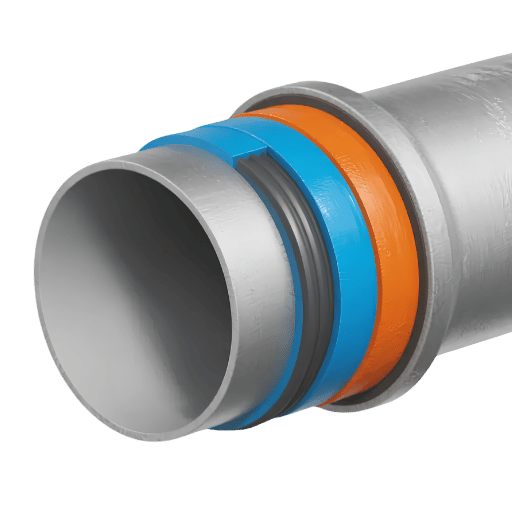

Long-Term Corrosion Resistance
I consider long-term corrosion resistance to be important in maintaining the durability and reliability of pipeline infrastructures. With the implementation of sophisticated coating technologies such as 3LPE, the possibility of corrosion is greatly mitigated, even under severe environmental conditions. This not only improves the longevity of the operational life of the pipelines but also reduces the maintenance expenditures and improves safety.

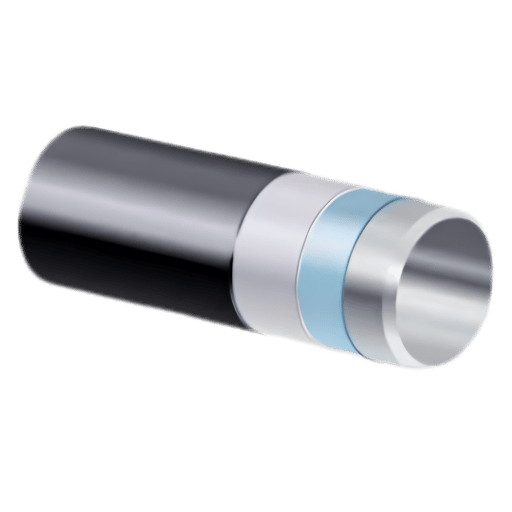

How to Apply 3LPE on Steel Pipe?
- Surface Preparation: Remove any contaminants, rust, and mill scale from the steel pipe. Achieving a satisfactory surface profile is done through abrasive blasting.
- Application of Epoxy Primer: Apply a liquid epoxy primer to the stained surface. The epoxy primer guarantees strong adhesion to the steel, while also acting as a base layer for corrosion protection.
- Bonding Layer Application: A copolymer adhesive is applied on top of the cured epoxy primer. This ensures strong adhesion between the polyethylene layer and the primer layer.
- Polyethylene Layer Application: The outer protective layer is then extruded polyethylene which is applied as the outer layer. This also gives mechanical strength and protection from external impacts.
Key Equipment and Materials Needed
- Epoxy Primers: These primers serve the important function of protecting against corrosion. There is a range of epoxy primers available, with new offerings having a tensile adhesion strength higher than 4,000 psi and providing effective durability.
- Adhesive Promoters (Copolymer Adhesives): Research indicates copolymer adhesives have up to thirty percent greater bonding efficacy than conventional adhesives, which helps mitigate delamination in layered structuressubjected to high stress or temperature differentials
- Polyethylene Material: The chemical and UV radiation protective properties alongside the robust mechanical traits of polyethylene (HDPE) make it a sought after material. Furthermore, the global market for HDPE is expected to expand with a 5.5% CAGR from the years of 2023 to 2030, owing to its growing usage in protective coatings.
- Extrusion Equipment: Fulfilling this need are the new extrusion systems, which address the problem of speed by producing multi-layer coatings in excess of 100 meters per minute, improving efficiency and reducing process downtime.
- Surface Preparation Tools: Steel surface preparation for primer adhesion requiring pre-blasting cleanliness (Sa 2.5 or Sa 3 standards) ensures thorough cleanliness has been achieved is aided by abrasive blasting tools featuring defined grit sizes.
The latest coating systems eliminate many of the operational challenges damaging steel components in offshore installations and industrial pipelines to prolong component life. This is achieved through the application of precise materials and technologies.

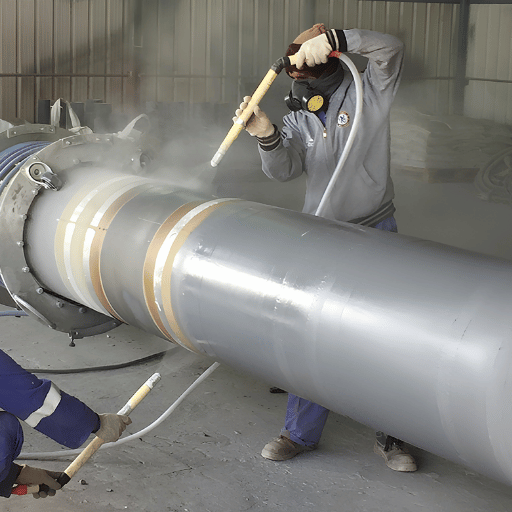

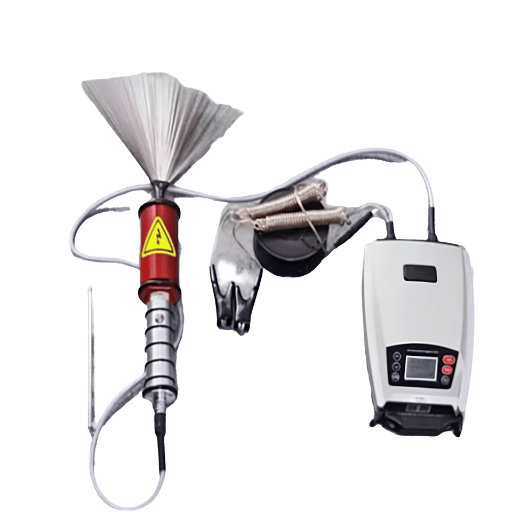

Quality Control and Testing Methods
Control and steel coating testing methods do not only help administer the required steel coating quality, but also aid in maintaining optimum performance in extreme working conditions. These methods technologically advanced assessment for adhesion, coating thickness, and environmental stressors mitigation.
- Adhesion Testing: Employing pull-off adhesion testers allow cross section adhesion of coating and steel interface to be measured which is termed adhesion testing. Industry standards (ASTM D4541) suggest that adhesion values for most applications is between 3 MPa to 5 MPa, suggesting pull off adhesion testingields positive results.
- Coating Thickness Measurement: Insufficient dry film thickness (DFT) can compromise protection which makes DFT critical. Portable DFT gauges based on electromagnetic principles are commonly used for non-destructive testing. Corrosion resistant coatings are typically designed with a target DFT of 200 to 500 microns. Depending upon exposure to specific environmental challenges, thick additional protective layers may be warranted.
- Salt Spray Testing: This test simulates severe industrial or maritime environments by subjecting coated steel to saline mist, in line with provisions of ASTM B117. Advanced coatings can endure over 2,000 hours of salt spray exposure with minimal damage.
- Environmental Resistance Testing: Other tests like cyclic weathering and UV exposure (ASTM D5894 and G154 respectively) are also performed to evaluate a coating’s effectiveness when subjected to extreme temperatures, humidity, and ultraviolet light for extended periods.
These quality control techniques aid manufacturers in ensuring that performance standards for coating systems have been met, thereby enhancing the durability of steel components while minimizing the cost of maintenance. Real-time monitoring and optimization of testing processes are made possible through AI-powered inspection and predictive analytics, greatly improving reliability.

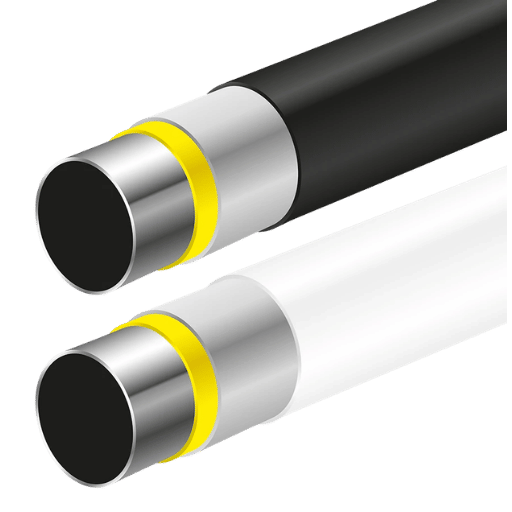

Common Applications of 3LPE Coated Pipes
- Oil and Gas Transportation: Safeguarding against corrosion whilst transporting oil, gas, and other hydrocarbons over long distances.
- Water Supply Systems: Guaranteeing the integrity and prevention of corrosion for the infrastructure that transports drinking and industrial water.
- Infrastructure Projects: Facilitating critical construction works, for example, bridges or pipelines that go underground.
- Chemical Processing: Protecting the valves and pipelines in the transportation of chemicals and corrosive agents.
Applications within Oil and Gas Pipeline
The use of pipelines and their coating technologies are fundamental to ensuring the preservation and energy efficiency in the oil and gas industry. Latest statistics indicate that pipelines are used to transport roughly 70% of the world’s crude oil and natural gas. Environmental and operational challenges require advanced pipeline coatings which include fusion-bonded epoxy (FBE) and three-layer polyethylene (3LPE) which provide excellent resistance against moisture, soil pressure, and chemical exposure.
Recent studies show that corrosion is responsible for almost a quarter of all pipeline failures globally, resulting in enormous economic and ecological damage. However, coated pipelines can be amortized over decades, thereby greatly decreasing the cost of upkeep. Polyurethane coatings, for instance, are ideal for demanding conditions since they are incapable of suffering significant mechanical injury and function between -40°F to 176°F.
Moreover, coatings reduce the frictional resistance of the working fluid to, greatly enhancing fluid flow and reducing energy expenditures in pumping by as much as 15%. The development of new coating technologies continues to drive innovation, further promoting sustainable development by using green chemicals and improved methods of construction and application. These developments minimize the environmental damages offsetting the gas and oil industry’s ability to meet the rising global energy requirements.
Application in Water Systems and Infrastructure
With regard to infrastructure and water systems, advanced coating technologies are critical in protecting the structural integrity of pipelines, storage tanks, and treatment plants. These coatings accurately mitigate corrosion, preserve asset integrity, and lower maintenance expenditures. Recent studies indicate that damages due to corrosion cost the water industry billions of dollars each year. Moreover, over $2.5 trillion is spent globally on corrosion protection and repair. Epoxy and polyurethanes which are considered advanced coatings, serve as impermeable protective barriers against water, chemicals, and severe weather, offering sustainable and economical options for water system operators.
Recent innovations also target biofouling reduction and maintenance of hygienic features for potable water systems. Anti-biofouling coatings can mitigate the risk of cross-contamination and provide cleaner water which is vital for public health. Furthermore, graphene-enhanced coatings are propsed as new solutions because of their durability, thermal resistance, and environmental friendliness. Adoption of these innovative materials reinforce reliability and safety for water infrastructure. These innovations are crucial as the demand for water rises due to population growth and climate change. These innovations stress the need to modern investments protective technologies to ensure the integrity of critical water systems.
Advantages of Carbon Steel Pipes in Different Sectors
Due to their durability, adaptability, and affordability, carbon steel pipes are of paramount importance to almost all industries. They are trusted by the oil and gas industry, water supply sector, construction industry, and manufacturing firms. Recent studies suggest that carbon steel pipes constitute almost 70% of the world’s pipeline infrastructure, which indicates their significance for contemporary economies.
One of the most important benefits is their use in high-pressure oil and gas transport applications in the energy industry. A market analysis conducted in 2023 predicts an annual increase of 5.4% in the demand for carbon steel pipes until 2028, due to energy needs and infrastructural advancements. Moreover, new protective coatings like fusion bonded epoxy (FBE) and polyethylene have improved their corrosion resistance and lifespan by 25 to 30 years in extremely harsh conditions.
Moreover, in water conveyance systems, carbon steel pipes are valued for their ability to retain tensile strength, facilitating long-distance transportation of water with minimal risk of leaking or rupturing. This makes them more environmentally sustainable by lowering maintenance expenditures, as well as resource expenditure. Coupled with new emerging technologies in the manufacturing and protective coating processes of the pipes, these attributes highlight the industrial continuous need and adaptability for carbon steel pipes.

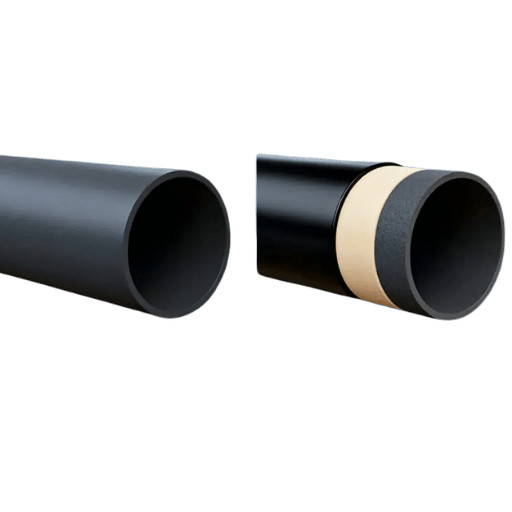

Comparing 3LPE with Other Coating Methods
Three-Layer Polyethylene or 3LPE coating is among the most modern techniques used to safeguard pipes, especially in difficult settings. 3LPE is moisture and abrasion resistant which is advantageous for submerged and underground applications. In contrast to single-layer coatings, 3LPE is multifaceted as it provides adhesion, corrosion resistance, and mechanical protective strength due to its three layers: fusion-bonded epoxy, adhesive, and polyethylene. 3LPE outperforms other coatings like FBE Fusion Bonded Epoxy, which is beneficial only in high-temperature environments, by offering sustained endurance across various temperatures and conditions. The exceptional protection, flexibility, and durability of 3LPE make it the no brainer for pipeline projects with high performance expectations.
3LPE vs. Fusion Bonded Epoxy (FBE)
3LPE surpasses FBE in long-term durability, flexibility, and resistance to corrosion, while FBE is more effective in high-temperature scenarios and has simpler application requirements.
| Parameter | 3LPE | FBE |
|---|---|---|
| Durability | High | Moderate |
| Flexibility | High | Low |
| Corrosion Resist. | Excellent | High |
| Temperature Resist. | Moderate | High |
| Application | Complex | Simple |
| Longevity | Long | Moderate |
| Layers | 3 | 1 |
| Abrasion Resist. | High | Moderate |
| Usage Conditions | Versatile | Specific |
| Cost | Higher | Lower |
Difference Between 3LPE and 3LPP Coating
3LPE and 3LPP coatings differ in their temperature resistance, flexibility, durability, and cost, with 3LPP suited for higher temperatures and slightly more specific applications.
| Parameter | 3LPE | 3LPP |
|---|---|---|
| Temp. Resist. | Moderate | High |
| Flexibility | High | Moderate |
| Durability | High | High |
| Corrosion Resist. | Excellent | Excellent |
| Abrasion Resist. | High | High |
| Layers | 3 | 3 |
| Application | Complex | Complex |
| Cost | Higher | Moderate |
| Usage Temp. | <80°C | Up to 110°C |
Selecting The Proper Coating Based On Your Pipeline’s Demands
In the case of selecting between 3LPE and 3LPP for your pipeline coating, be mindful of the operating temperature and flexibility criteria for your application. 3LPE performs best in cases where high flexibility and temperatures lower than 80°C are present. Conversely, 3LPP performs better in conditions above 80°C all the way to 110°C while being slightly less flexible. Both coatings have great durability, providing a high level of protection from corrosive and abrasive forces even in complex applications. Consider the balance of cost-effectiveness alongside temperature and flexibility requirements during your decision.
Reference sources
- Integrity Assessment of 3LPE Coated Pipes Stored in Open Environment – Discusses the integrity of 3LPE coated pipes stored in open environments over several years.
- Pipe Line Coating Systems – Explores various pipeline coating systems, including 3LPE, and their corrosion resistance and flexibility.
- 3LPE Coated Pipe Supplier In China
Frequently Asked Questions (FAQs)
Q: What is 3LPE coated pipe?
A: A 3LPE coated pipe or a three layer polyethylene coated steel pipe is a type of steel pipe which is protected against corrosion by the application of three layers of material. The epoxy coating, adhesive layer, and outer layer of polyethylene comprise the three layers.
Q: What are the advantages provided by 3LPE coated steel pipes?
A: 3LPE coated steel pipes provide significant advantages such as excellent anti-corrosion properties, enhanced service life of the pipeline, increased durability against extreme weather conditions, and intense external pressure. The three-layer coating provides a very high level of protection against water, moisture, and aggressive soils as well as chemicals, which is extremely beneficial for pipelines located in hostile marine environments.
Q: What is the process of 3LPE coating application?
A: The process of 3LPE coating includes use of high-performance fusion bonded epoxy (FBE) as the first layer, followed by copolymer adhesive as the second layer, and lastly an extruded polyethylene layer as the final outer layer. Such combination guarantees effective adhesion, protection and resilience against external abrasive forces.
Q: What function does the epoxy coating serve in 3LPE pipes?
A: In 3LPE pipes, the epoxy coating is their first antifouling layer and protects steel surfaces from fathoms of cathodic disbondment as well as entirely detaching (disbonding), ensuring the pipe’s enduring service amidst corrosive elements.
Q: Which sizes of pipes are offered to have 3LPE coatings?
A: The offered 3LPE coated pipes have a variety of 3LPE diameter sizes to cater diverse industrial needs. The pipes can be produced in seamless as well as welded configurations to meet specific pipeline standards and needs.
Q: Are International Standards Prescribed for 3LPE Coated Pipes Observed?
A: 3LPE coated pipes are produced per API (American Petroleum Institute) and CSA Z245.21, so yes, 3LPE coated pipes are manufactured to international standards. These standards are indispensable for the quality and reliability required from pipes installed in critical infrastructure.
Q: What differentiates 3LPE from 3PE coating steel pipes?
A: The difference is purely lexical for 3LPE and 3PE coating steel pipes; they coexist interchangeably because both phrases describe pipes with a three-layer polyethylene coating. The diversity in terminology is oftentimes attributed to geographical differences or particular sector preferences.
Q: Are 3LPE coated pipes applicable for both onshore and offshore use?
A: Both onshore and offshore uses of 3LPE coated pipes are acceptable because the anti-corrosion coatings and environmental protections such as seawater, soil, and ultraviolet radiation make them durable.
Q: What benefits does the outer layer of polyethylene provide?
A: Polyethylene coats the pipes with a layer that is weather tight and blocks physical abrasions as well as ultraviolet radiation. This addition supplements the performance and longevity of the three-layer polyethylene coated pipes.
Q: Why is cathodic disbondment resistance important in 3LPE pipes?
A: Cathodic disbondment resistance matters because it helps protect the coating of the pipe especially in regulated cathodic systems. Without it, the epoxy resin layer wouldn’t stay glued to the pipe surface and would allow for corrosion undercutting which minimizes the effective operational life of the pipe.
