Stud bolts represent the backbone of industrial connections that assure the strength and reliability of flange assemblies. Stud bolts are designed to hold immense forces in oil and gas pipeline systems and in high-pressure equipment in chemical processing and still maintain the seal. But what exactly makes stud bolts so important, and why are they the best option used in critical flange applications? This article will review the special features of stud bolts and their contribution to industrial flange assemblies with respect to safety, durability, and efficiency. This article will be rewarding whether you are a seasoned professional or completely new to this engineering field as it gives deep insight into why these connecters continue as a trustworthy solution in the hard industries.
What is a Stud Bolt and How Does it Function?
Stud bolts are mechanical fasteners that join two parts, typically flanges. Stud bolts are threaded rods with no heads and have threadings at both ends for nuts to be attached onto them. Being said, the stud ensures a good, even clamping force, thus providing the most suitable fastening for high pressure and high-temperature applications. They are used in industries that demand utmost reliability and safety, such as those of oil and gas, the petrochemical industries, and construction. These stud bolts help in ensuring that flange assemblies are placed perfectly, achieving a functional seal while preventing leaks.
Understanding the Stud Bolt Design
Stud bolts are engineered to meet stringent requirements of strength, durability, and reliability. Typically, these bolts are threaded at both ends with an unthreaded shank in between so that they can be precisely aligned and ensure even load distribution. The threading features shall comply with standards like ASTM or ISO as applicable to a standard of that region or industry. For instance, stud bolts come in materials ranging from carbon steel to stainless steel and alloys; each is selected based on the resistance attribute of concern, be it corrosion or heat tolerance.
One of the chief advantages with stud bolts is tensile strength “to the limit,” which itself is vital in many high-pressure-tiered applications like pipeline flanges or heavy machinery assembly. Industry data claim that Grade B7 stud bolts- most efficient between 450°F temperature ranges-have a minimum tensile strength of 125,000 psi, thus sold for the telling use in demanding applications. Different coatings are applied to further enhance resistance to environmental factors like saltwater corrosion or chemical attack, thereby improving their lifespan and reliability.
By producing well-distributed clamping forces and retaining tight connections in unforgiving operating environments, stud bolts find their place in the front line of features in high-stakes industrial environments.
The Role of Threads in Stud Bolts
Threads play an essential role in the functioning and effectiveness of stud bolts, thus making them reliable applications in industrial settings. Stud bolts are intricately designed, with threads ensuring clamping withhold, while resisting looseness under stress or vibratory circumstances. Threads could be one of many types, such as Unified National Coarse (UNC) or Unified National Fine (UNF), with each serving seemingly different purposes according to the requirements of application. For instance, UNC threads are usually applicable to soft materials or generic scenarios requiring speedy assembly, while on the other hand, UNF threads are well-suited for precise and high-strength applications due to their denser thread pitch.
Data reveals that the accuracy of the thread is important in the clamping force generated. Normally, if the stud bolt threads are made to conform as per ANSI/ASME B1.1 standards, proper load distribution is achieved with a resultant reduction in stress concentration on the materials being fitted and in deformation. Other manufacturing processes also support high productivity of thread conformity with tolerances as strict as ±0.005 inches to maintain consistency.
Also, with improvements in coating technology, threads are improved upon for corrosion resistance and wear resistance. Final coatings, such as cadmium plating or an application of Xylan provide a thin layer of defense against environmental factors such as moisture, chemicals, and extreme temperatures. Research has shown that coated threads can survive 30-50% longer in adverse conditions than non-coated threads. Thus, these coatings are highly recommended for uses in oil and gas applications, where the equipment is almost routinely exposed to solar or corrosive conditions.
Hence, well-made threads on stud bolts allow for even torque application, reliable joining, and long-term performance in very high-pressure and high-temperature applications. The refinement and technology have allowed stud bolts to sustain their critical importance in industrial operations worldwide.
Applications of Stud Bolts in Industry
Stud bolts are indispensable across numerous industrial sectors due to their strength, durability, and efficiency in maintaining secure connections under demanding conditions. Below are some of the key applications of stud bolts in various industries:
- Oil and Gas Industry
Stud bolts are widely used in the oil and gas sector, specifically in flanges, pipelines, and pressure vessels. Their ability to withstand high-pressure and high-temperature environments makes them ideal for offshore drilling rigs and refinery operations. According to recent industry insights, the corrosion-resistant properties of materials like alloy steel and stainless steel enhance the longevity of stud bolts in this sector, reducing maintenance costs significantly.
- Petrochemical Industry
High-performance stud bolts play a pivotal role in the petrochemical sector, particularly in applications involving heat exchangers, boilers, and reactors. These environments demand fasteners that can endure constant exposure to extreme temperatures and reactive chemicals. Advanced coatings, such as PTFE, are increasingly used to improve chemical resistance and reduce galling.
- Power Generation
Power plants, especially those reliant on thermal energy, deploy stud bolts in turbines, generators, and other critical equipment. Stud bolts are essential for assembling components where secure and precise fastening is paramount to prevent failures that could disrupt energy production. Many modern power plants now favor stud bolts with improved tensile strength to enhance operational safety and efficiency.
- Construction and Infrastructure
Stud bolts are used extensively in construction projects for assembling steel structures, bridges, and heavy machinery. Their ability to distribute load evenly and provide structural stability makes them vital for projects requiring high safety standards. Applications in seismic zones also see the use of specially engineered stud bolts designed to absorb and dissipate energy during earthquakes.
- Marine and Shipbuilding Industry
The marine sector relies on corrosion-resistant stud bolts for securing ship components and offshore platforms. Materials such as duplex stainless steel and titanium offer superior resistance to saltwater corrosion, ensuring operational reliability in harsh sea environments. Studies highlight enhanced lifespans of stud bolts with specialized coatings, which reduce the impact of marine environmental stressors.
- Aerospace Industry
Lightweight yet high-strength stud bolts are integral to aerospace applications, where precision is non-negotiable. Aerospace-grade alloys, coupled with strict manufacturing standards, ensure the reliability of these components in aircraft assembly, engines, and auxiliary systems. Innovations in materials and manufacturing have led to stud bolts that meet the stringent demands for weight reduction without compromising on performance.
How to Choose the Right Stud Bolt for Your Needs?
- Understand Application Requirements
Identify the specific application where the stud bolt will be used. Consider factors like load, temperature, and environmental conditions to determine the necessary material and strength.
- Select the Proper Material
Choose materials that match the demands of your application. For example, aerospace applications often require lightweight and corrosion-resistant alloys, such as titanium or nickel-based materials.
- Check Industry Standards
Ensure the stud bolts meet relevant industry standards for safety and reliability, such as ASTM or ISO certifications, which guarantee quality and performance.
- Verify Size and Dimensions
Confirm the stud bolt’s size, thread type, and length align with your specifications to ensure a secure fit and optimal performance.
- Consider Manufacturer Reliability
Source stud bolts from reputable manufacturers with a proven track record of durability and adherence to quality standards. Reliable suppliers often provide documentation for material certification and testing.
By following these steps, you can confidently select the stud bolt that best meets your needs, ensuring safety and efficiency in your application.

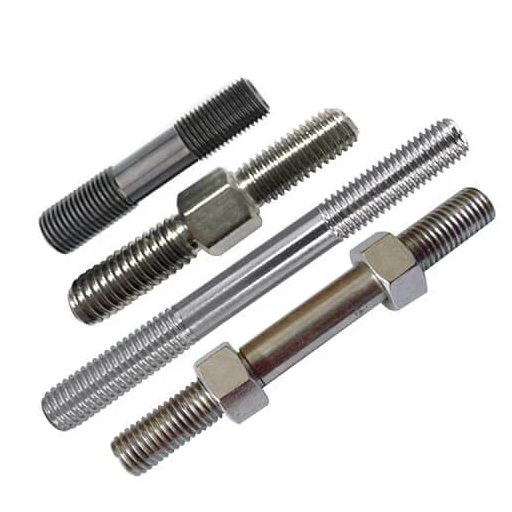

Different Types of Stud Bolts and Their Uses
Stud bolts are critical in various industries, and their diverse types serve specific applications tailored to different operational needs. Here are the main types of stud bolts and their commonly associated uses:

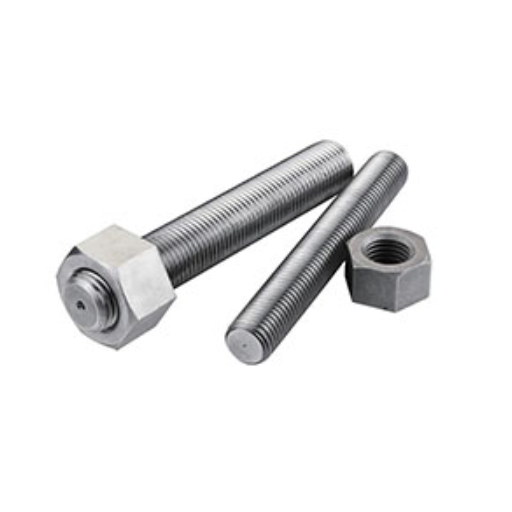

- Fully Threaded Stud Bolts
Fully threaded stud bolts, with threads running along their entire length, are primarily used in flanged connections where secure fastening is essential. These bolts are popular in petrochemical, oil, and gas industries due to their high tensile strength and ability to withstand high-pressure environments. They are commonly manufactured from carbon steel or stainless steel, providing corrosion resistance for applications in harsh conditions.

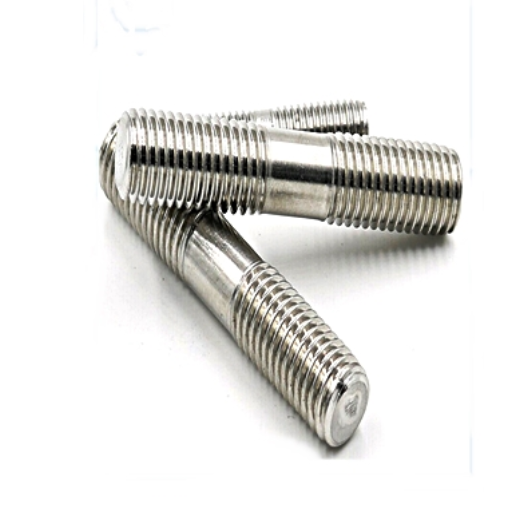

- Tap-End Stud Bolts
Tap-end stud bolts feature threads on both ends but with differing thread lengths. One end is tightly screwed into tapped holes, and the other is fastened with a nut. These bolts are widely utilized in engine blocks, turbine housing, and large machinery where precise alignment is critical, offering excellent load-bearing and vibration resistance.

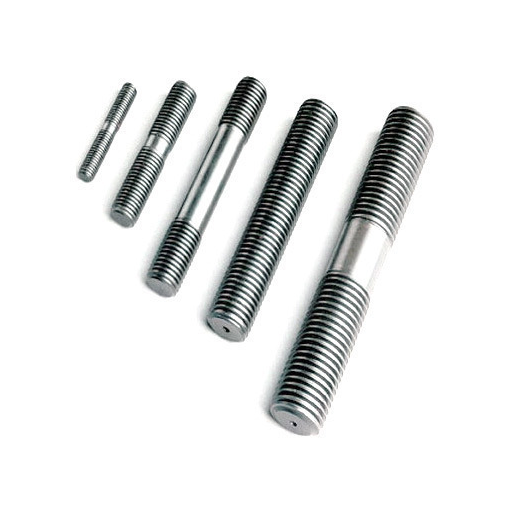

- Double-End Stud Bolts
Double-end stud bolts have equal thread lengths on both ends and are often employed in structural and industrial assemblies. Their balanced design ensures even load distribution in applications such as securing heavy equipment or large piping systems. When paired with suitable coatings like zinc plating, they provide enhanced durability against rust.

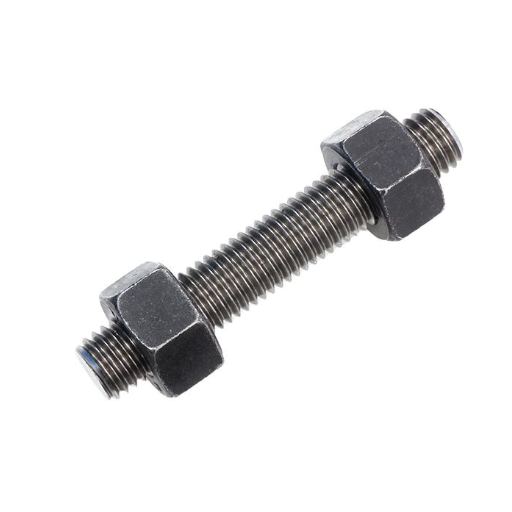

- Flange Stud Bolts
Designed for flange connections, these bolts adhere to ASME and API standards to ensure compatibility in industries like chemical processing and power generation. Flange stud bolts are crucial for maintaining leak-proof seals in pipelines under extreme temperatures and pressures. Materials such as alloy steel or Monel are frequently used for these bolts to meet demanding operational requirements.
- Heat-Resistant Stud Bolts
Constructed from materials like Inconel or Hastelloy, heat-resistant stud bolts are engineered to operate under extreme thermal conditions without compromising structural integrity. These bolts are indispensable in applications such as furnaces, jet engines, and heat exchangers, demonstrating excellent resistance to oxidation and thermal fatigue.
- Custom-Coated Stud Bolts
Coatings such as PTFE (polytetrafluoroethylene) or cadmium plating are applied to certain stud bolts to enhance their properties such as corrosion resistance, lubrication, and thermal stability. These are often found in marine environments, offshore platforms, or chemical facilities where exposure to corrosive substances is high.
Material Considerations: Alloy and Stainless Steel
Alloy steel is cost-effective and strong, ideal for high-stress applications, while stainless steel offers superior corrosion resistance and aesthetic appeal for harsh environments.
|
Key Point |
Alloy Steel |
Stainless Steel |
|---|---|---|
|
Cost |
Lower |
Higher |
|
Corrosion |
Moderate |
High resistance |
|
Strength |
High |
Moderate |
|
Hardness |
Higher |
Lower |
|
Applications |
Structural, tools |
Medical, marine |
|
Maintenance |
Higher |
Lower |
|
Aesthetics |
Basic |
Shiny, modern |
Key Specifications and Standards to Follow
When selecting and deploying stud bolts, adhering to established industry specifications and standards is critical to ensuring reliability, safety, and performance in various operating conditions. Below are some of the key standards and their significance:
- ASTM A193/A193M
This standard specifies the requirements for alloy-steel and stainless steel bolting materials used in high-temperature or high-pressure environments. Common grades like B7 (chromium-molybdenum steel) and B16 are widely deployed in petrochemical industries due to their excellent tensile strength and resistance to thermal fatigue.
- ASTM A320/A320M
Focused on low-temperature service, this specification covers bolting materials designed for sub-zero applications. Stainless steel grades such as L7 and L7M offer high toughness and reliability in cryogenic systems, making them ideal for LNG facilities and other cold environments.
- DIN and ISO Standards
For applications requiring strict dimensional accuracy and global compatibility, DIN (German Institute for Standardization) and ISO (International Organization for Standardization) provide essential guidelines for stud bolt dimensions, thread tolerances, and material grades.
ISO 898-1 specifically outlines mechanical and physical properties of fasteners made of carbon steel and alloy steel, detailing performance classes for different tensile strengths.
DIN EN 10269 is frequently referenced for the selection of materials suitable for elevated temperatures and pressures.
- NACE MR0175/ISO 15156
A crucial standard for environments containing hydrogen sulfide (H2S), typically found in oil and gas operations. Compliance ensures stud bolt materials can resist sulfide stress cracking (SSC), protecting both equipment and personnel from hazardous failures.
- ASME B16.5 and ASME B18.2.1
These standards address flange dimensions and bolting requirements, ensuring compatibility across pipe flanges and pressure vessel connections.
- API 6A
Covering wellhead and Christmas tree equipment, this standard identifies stud bolt materials capable of withstanding extreme pressures during oilfield drilling and production.
How Do Stud Bolts Compare to Other Fasteners?
Stud bolts excel where strong, reliable connections are vital-working in high-pressure or high-temperature situations. Unlike a standard bolt or screw, stud bolts pass through the component and are threaded into a nut at either end, ensuring equal tension and stability. Hence their use in the oil and gas, power generation, and chemical processing industries. They are additionally favored because they keep flanged connections tight, enabling safety and operational efficiency in extreme conditions. Although other fasteners may be more appropriate for lightweight or less demanding applications, stud bolts stand the best chance for those applications that stress durability and precision.
Differences Between Stud Bolts and Threaded Rods
Stud bolts are shorter with threads on both ends, ideal for precise bolting, while threaded rods are longer with continuous threads, suitable for extended connections.
|
Key Point |
Stud Bolts |
Threaded Rods |
|---|---|---|
|
Length |
Shorter (<12″) |
Longer (>12″) |
|
Threads |
Both ends |
Continuous |
|
Strength |
High tensile |
Moderate |
|
Applications |
Precise bolting |
Long connections |
|
Material |
Steel, alloys |
Steel, stainless |
|
Installation |
Requires nuts |
Flexible fastening |
Benefits of Using Fully Threaded Stud Bolts
In all technical fields of industry, fully threaded stud bolts offer such great versatility as well as reliability. Perhaps the most prominent advantage of fully threaded stud bolts is their ability to provide an even clamping force on flanged connections, which further enhances their stability and integrity. Such uniformity becomes crucial in high-pressure situations like pipelines in the oil and gas industry or chemical plants, where any small leakage could cause costly downtimes or pose safety hazards.
Other benefits include their ability to be paired with a wide array of materials and coatings, such as stainless steel, zinc plating, or Teflon coatings. For instance, stainless steel stud bolts exhibit corrosion resistance and are considered to be of great performance in harsh environments, including saltwater exposure in marine industries. Some studies have claimed that stainless steel fasteners could last up to 10 years longer, diverting fastener replacements and maintaining operational efficiency.
Fully threaded stud bolting systems guarantee ease of installation and maintenance. A fully threaded stud bolt bears threads along its entire length, unlike partially threaded fasteners, allowing it to accommodate a larger range of nut sizes and, hence, increasing adaptability and reducing the necessity for special tools. Moreover, tough construction prevents deformation under loads, which is paramount for preserving load integrity when the maximum mechanical or thermal pressure is applied.
Other industries heavily dependent on heavy-duty machinery benefit considerably from the precision and load distribution offered by stud bolts. Engineering reports indicate that the use of fully threaded stud bolts could cut flange maintenance time by up to 25%, allowing for quicker assembly and disassembly. This alleviation of time plus the eminent durability makes fully threaded stud bolts a worthy investment from a long-term perspective.
When to Use Double-End Stud Bolts
Double-end stud bolts are very common in applications where precision, strength, and ease of assembly become paramount. These bolts have threads on both ends and are therefore used to fasten flanges, valves, and other critical infrastructure components in oil and gas, petrochemical, and power plant industries.
Modern advancement in engineering has brought the double-end stud bolts as a great choice for conditions involving frequent temperature changes or extreme pressure. It has been found that design alignment problems during installation are reduced by a factor of 30%, effectively reducing downtime in maintenance-intensive industries. They are also versatile enough to be used in applications in which the preload distribution has to be controlled to ensure uniform stress on the joining parts.
Industry case studies show their importance under settings characterized by high vibrations such as in turbine systems or heavy-duty engines. The application of double-end stud bolts in these conditions brings very observable improvement in component stability thus extending the machinery’s lifetime while reducing the overall maintenance cost. Given their reliability and flexibility, double-end stud bolts ought to be the first choice whenever demands for structural integrity combine with issues of operational efficiency.
What are the Installation Procedures for Stud Bolts?
- Preparation
- Clean the threads on both the stud bolt and the installation holes to remove dirt, debris, or corrosion.
- Inspect the stud bolts for damage or defects before proceeding.
- Alignment
- Position the stud bolt into the threaded hole, ensuring proper alignment to avoid cross-threading.
- Hand Tightening
- Begin by hand-tightening the stud bolt until it is snug, ensuring it is correctly seated in the hole.
- Torque Application
- Use a calibrated torque wrench to tighten the stud bolt to the recommended torque value specified by the manufacturer or project guidelines.
- Apply torque evenly in small increments, avoiding overtightening.
- Double-Checking
- Verify that all stud bolts are installed to the correct torque specifications. Recheck alignment and ensure no thread damage has occurred during tightening.
Preparing Flange Connections and Hex Nuts
The flanges must be free of anything that could contaminate or damage them before assembling flange connections and hex nuts. Flange faces are checked for any nicks or imperfections, ensuring proper alignment prior to assembly. As far as the hex nuts application goes, first check that the threads are clean and free from damage. Apply an anti-seize or lubricant where appropriate to reduce friction during tightening. This will assure that a tight and accurate connection is formed.
Ensuring Proper Thread Engagement
To ensure proper threading engagement, I always check whether both bolt and nut threads are clean, undamaged, and obstructed in any way. The nut is hand-tightened first to ensure that it engaged smoothly and the use of any tool to tighten it further is avoided-so they will not be cross-threaded. Such care taken equally ensures a secure and reliable connection.
Common Mistakes and How to Avoid Them
It is common to overtighten, which may damage threads or snap the bolt. I usually use a torque wrench and torque bolts exactly as specified by the manufacturer when tightening. Another common issue is that people do not clean the threads properly before assembly, which can give rise to cross-threading. I never forget to clean and inspect threads before assembly. Different tools may cause stripping of components or other damage, so I ensure to use tools made for the job. With a patient and systematic approach, I minimize errors and attain solid fastening with every job.
How Does the B7 Specification Impact Stud Bolt Selection?
In the case of the B7 specification, stud bolt selection is guided by the declaration of material properties, such as tensile strength, hardness, and temperature limits. Stud bolts conforming to the B7 Standard are manufactured from alloy steel, with heat treatment processes carried out to provide wear resistance suitable to environments of high pressure and high temperature. Hence, these bolts are indeed interested and critical for applications in the fields of oil and gas, chemical processing, and power generation. Safe and effective application requires that the selection for this type of stud bolt from the B7 specification be evaluated against operational requirements, including temperature ranges and pressure conditions.
Understanding B7 Material Properties
B7 material is a heat-treated chromium-molybdenum alloy steel known for its high tensile strength, excellent heat resistance, and suitability for high-pressure applications.
| Key Point | Details |
|---|---|
|
Material |
Chromium-molybdenum |
|
Tensile |
125 ksi (min) |
|
Yield |
105 ksi (min) |
|
Hardness |
Max 35 HRC |
|
Heat Treat. |
Quenched & tempered |
|
Applications |
High-temp, high-pressure |
|
Standards |
ASTM A193 |
Suitability for High Temperature and High Pressure Applications
B7 stud bolts are essentially made to handle more severe operating conditions and offer reliability in high-temperature and high-pressure applications. With chromium-molybdenum steel-like raw materials, these fasteners impart excellent tensile strength and heat resistance. From a temperature range of -29°C to 427°C (-20°F to 800°F), these B7 bolts retain mechanical properties, which is very important in power plants, petrochemical plants, and refineries. High yield strength and creep resistance stand in favor of the bolts that may sustain these situations.
As the data indicates, B7 bolts conform to the ASTM A193 standard requirements that aspect their use for pressure vessel and valve applications under critical stresses. For example, their tensile strength is generally 125 ksi (862 MPa), and their yield strength is set at 105 ksi (724 MPa), thus offering a good window for performance. Also, B7 bolts are sometimes subjected to further heat treatments to improve their metallurgical properties for very demanding applications.
On the other hand, installation of grade 2H heavy hex nuts with good corrosion resistance at higher temperature would further enhance the efficiency and safety of bolted joint under severe conditions. Therefore, they can serve as proven components under such severe conditions, which makes it also very difficult to prosecute acceptance criteria for industrial processes at high pressure and temperature.
Compliance with ASME B16.5 Standards
The standard plays an important role in the safety assurance, reliability, and standardization of flanges and flanged fittings used in industrial piping systems. It deals with the design, dimensions, tolerances, pressure-temperature ratings, and materials of flanges made out of iron, steel, nickel alloys, and other sound materials having industrial uses. It deals with pressure classes from 150 to 2500 to allow use through refineries, power generation, oil, and gas industries.
One such important aspect of ASME B16.5 deals with pressure-temperature ratings. For instance, flanges made from ASTM A182 F316 stainless-steel-Class 150 rate are fit for 275 psi pressure at 100°F and 200 psi at 400°F because of temperature affecting material strength. If not for such detailed practices, it would have been difficult to ascertain safety, and engineers would have felt hard selecting components for given working conditions.
Also, the standard requires flanges to be correctly-marked so as to allow for proper quality control processes and certification. It includes the need for testing-flange dimensional checks, hydrostatic testing, and material composition checks to ascertain that the components meet the very limits of tolerance specified for their capability. Adhering to these strict means ensures that manufacturers and engineers create durable and safe-component systems for critical environments.
ASME B16.5 works together with these parameters and proper final installation inspection to provide a greatly simplified system that, if followed, reduces failures occurring in systems operating under severe high-pressure and temperature conditions-defining safety standards and industry benchmarks.
Reference Sources
- Experimental Investigation on the Shear Behaviour of Stud-Bolt Connectors of Steel-Concrete-Steel Fibre-Reinforced Recycled Aggregates Sandwich Panels
- Authors: A. Karimipour, M. Ghalehnovi, M. Golmohammadi, J. Brito de
- Publication Date: September 1, 2021
- Summary: This study investigates the shear behavior of stud-bolt connectors in steel-concrete-steel (SCS) sandwich panels. The research involved producing 24 specimens with varying stud-bolt diameters and concrete core thicknesses, which were subjected to concentrated loads. The failure modes observed included concrete core cracking and stud bolt separation. The results indicated that the use of stud-bolt connectors significantly improved the performance of the sandwich panels compared to traditional connectors. A theoretical model was also developed to predict the bending strength of the slabs, showing consistency with experimental results(Golmohammadi et al., 2019, pp. 93–106).
- Study of a Stud Bolt Wrench Failure Due to an Inadequate Heat Treatment
- Authors: S. L. Rodriguez-Reyna, F. Pérez-Gutiérrez, J. Hernández-Rivera, Jorge Zaragoza-Siqueiros, Christian J. Garcia-Lopez
- Publication Date: October 25, 2017 (not within the last 5 years but relevant)
- Summary: This paper examines the failure of a stud bolt wrench attributed to inadequate heat treatment. The study involved analyzing the mechanical properties and microstructure of the failed bolts, identifying the root causes of the failure, and providing recommendations for improving manufacturing processes to prevent similar issues in the future(Rodriguez-Reyna et al., 2017, pp. 113–121).
- IDENTIFIKASI DEFECT STUD BOLT T/A MENGGUNAKAN METODE PENGENDALIAN KUALITAS PT. ASTRA DAIHATSU MOTOR
- Authors: M.Cs Iqbal
- Publication Date: February 10, 2020
- Summary: This study focuses on identifying defects in stud bolts used in automotive applications through quality control methods. The research emphasizes the importance of maintaining high standards in manufacturing processes to ensure the reliability and safety of automotive components(Iqbal, 2020).
Frequently Asked Questions (FAQs)
Q: What are stud bolts and how are they used in flange assemblies?
A: Stud bolts are a type of fastener commonly used to connect flanges. They are essentially a threaded rod with two heavy threaded ends, typically used with two nuts to secure the connection. This provides a strong and reliable joint.
Q: How is the stud bolt length determined?
A: The stud bolt length is dependent on the flange type and pressure class. It is essential to consider the number of bolt holes and the bolt length specified by the American Society of Mechanical Engineers (ASME) standards.
Q: What standards define the threads of stud bolts?
A: The threads of stud bolts are defined in ASME B1.1, which specifies unified inch screw threads. This standard ensures consistency in the number of threads per inch, which is critical for proper fastening.
Q: Are metric stud bolts commonly used in flange assemblies?
A: Yes, metric stud bolts are commonly used in various applications, especially in regions where the metric system is standard. However, unified inch screw threads are also popular, particularly in the United States.
Q: Can stud bolts be used with all flange types?
A: Stud bolts are versatile and can be used with most flange types; however, the specific flange type and pressure class must be considered to ensure the correct bolt length and strength are selected.
Q: What role does the number of bolt holes play in selecting stud bolts?
A: The number of bolt holes in the flange determines how many stud bolts are needed. This is crucial for ensuring even distribution of pressure and a secure fastening.
Q: Why is the first thread of a stud bolt important?
A: The first thread is critical for starting the engagement with the nut. Properly designed threads ensure smooth application of the nut and prevent cross-threading, which can compromise the fastening.
Q: Are stud bolts available with different types of nuts?
A: Yes, stud bolts are available to be used with different types of nuts, including one nut or two nuts, depending on the application requirements and the pressure class of the flange.
Q: How does pressure class of a flange affect stud bolt selection?
A: The pressure class of a flange determines the strength requirements of the stud bolts. Higher pressure classes require stronger, more durable bolts to withstand the increased forces.
Q: What is the difference between a stud bolt and a weld in flange assemblies?
A: A stud bolt provides a removable and adjustable fastening solution using nuts, while a weld creates a permanent connection. The choice between them depends on the application requirements and whether future disassembly is anticipated.
