Mild steel pipes have various applications across the construction and manufacturing industries. They need to be selected with precision as one wrong choice can turn out to be costly. Even with having the best product in the market, the wide variety of options available can be truly overwhelming. It can be helpful to have all the information in one place which is why this guide is focusing on providing everything there is to know about mild steel pipes. Whether you’re in need of a long lasting grade, usability, or low-cost solution, this article will provide the best possible answer to all your queries. Keep reading in order to have a seamless and successful experience on your next project.

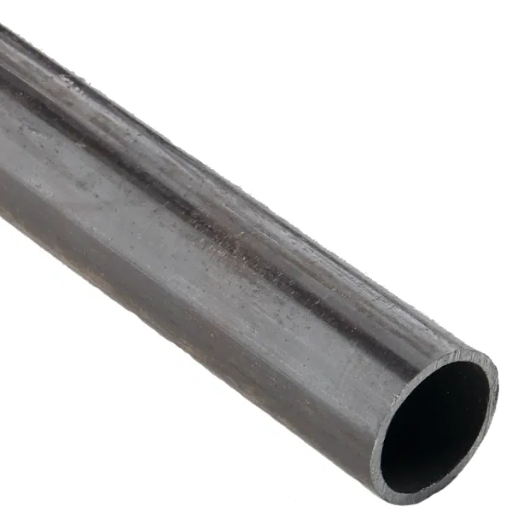

What is Mild Steel and Why is it Used for Pipes?
Mild steel is a category of carbon steel. It constitutes a lower percentage of carbon, between 0.05% and 0.25%. The alloy is greatly used for pipes as it is inexpensive, easy to work with, and highly malleable. It is also used in plumbing, construction and industrial systems owing to its strength and durability. In addition to this, mild steel pipes have great breakage resistance, can be welded or shaped easily, and therefore are practical for numerous projects.
Understanding the Composition of Mild Steel
Mild steel or low-carbon steel is primarily iron (Fe) with low carbon content within the range of 0.05% to 0.25%. This is why mild steel possesses distinct features such as significant ductility, malleability and easy workability. In addition to carbon, mild steel usually has trace amounts of sulfur and phosphorus, as well as other elements such as manganese (up to 1.65%) and silicon (up to 0.60%). These elements facilitate the ease of fabrication of the steel while improving the material’s mechanical strength and durability.
In enhancing wear resistance and toughness, manganese serves its purpose, and in manufacturing processes, silicon is added as a deoxidizer. Compared to higher carbon steels, the relativley low carbon content in mild steel makes it softer and more vulnerable to corrosion if proper treatments are not employed. This composition allows mild steel to be used in structural frameworks, automotive body panels, pipelines and similar structures where flexibility and low cost are the main priorities.
Due to recent improvements in jometallurgy, other elements such as weldability and tensile strength can now be added with precision to tailor mild steel’s characteristics for specific industrial purposes. Despite precision resulting in added elements, mild steel’s simplicity in combination will always remain a dependable resource across multiple industries.
Advantages of Employing Mild Steel Pipe
The working sectors of construction, infrastructure and industry all source mild steel pipes due to the advantages they offer. To start, their malleability ensures that they can be bent, shaped or even welded without any loss of strength. These pipes can also be used as part of a custom structure or installed in areas with intricate structural needs. Moreover, compared to ally steels or even stainless steels, mild steel pipes have a better cost to performance ratio which is beneficial in large scale projects.
The latest figures reveal that the world’s steel pipe consumption in 2023 will be around 159 million tons while mild steel pipes will continue to lead due to their low cost and usefulness across various industries. They find application in the oil and gas industry, water supply systems, and scaffolding for construction buildings. In addition, new advancements in galvanization and coating methods have improved the performance of mild steel against corrosion, enabling effective functioning in harsh environments.
Of particular note is their environmental friendliness because mild steel pipes are fully recyclable and support the global initiative of reducing carbon footprints in the manufacturing sector. As an illustration, advanced economies like the United States and Europe have maintained over 70% recycling rate for steel materials which indicates the great importance of steel towards sustainability in industrial ecologies. All of these factors bolster the appeal and significance of mild steel pipes for catering industrial requirements alongside modern day sustainability drives.
Comparing Mild Steel with Other Types of Steel
Mild steel can be compared with other types of steel like carbon steel, stainless steel, alloy steel, and tool steel.
| Type of Steel | Strength | Corrosion | Machinability | Cost | Ductility | Hardness |
|---|---|---|---|---|---|---|
| Mild Steel | Low | Low | High | Low | High | Low |
| Carbon Steel | Medium | Low | Medium | Medium | Medium | Medium |
| Stainless Steel | Medium | High | Medium | High | Medium | Medium |
| Alloy Steel | High | Medium | Low | High | Low | High |
How to Choose the Right Steel Pipe for Your Project?
- Application Criteria: Identify the function of the pipe, whether it is for support, transport, or for aesthetics. For structural strength, alloy steel is ideal, while stainless steel is recommended for corrosion resistant applications.
- Environmental Considerations: Evaluate risks of exposure to moisture, chemicals, or extreme temperatures. Stainless steel is superior in corrosive environments and mild steel is best in dry indoor conditions.
- Project Constraints: Analyze the funding limitations of your project. Mild steel is the cheapest option, while stainless and alloy steels are more expensive but provide better advantages where required.
- Mechanical Characteristics: Focus on the strength, ductility, or wear resistance of the components based on the requirements of the project. Alloy steel is the best among for strength and hardness, but mild steel offers great ductility.
Differentiating Steel Pipes and Their Uses
Steel pipes are usually classified by the methods they are made from, their materials, and how they will be used. Steel pipes can be divided into two categories: Mild steel pipes and stainless steel pipes. Both types differ in their properties as follows.
- Mild Steel Pipes: Mild steel pipes have iron and carbon as their main components. These pipes are relatively cheaper and easy to weld compared to other pipes while still providing reasonable strength for moderate workloads. Mild Steel Pipes are best used in dry non-corrosive atmosphere, which is the reason why they are used in plumbing construction and other infrastructural projects.
- Stainless Steel Pipes: Stainless Steel pipes are made from an alloy of iron, chromium and nickel which makes them highly rust resistant. Stainless Steel Pipes are widely used in corrosive and humid environments or areas with great mechanical stress due to their durability, for example: chemical plants, marine environments and food processing facilities.
Project requirements define which steel pipe to choose from exposure to environmental factors, project costs, and service life expectations. Make sure to consider all of them for optimal accuracy and reliability.
Making Your Choice: Seamless or Welded Steel Pipes?
When making a choice between welded and seamless steel pipes, it is crucial to know the both’s manufacturing process and applications. More rugged and resistant to high температуры and pressures, seamless pipes have no weld and thus are created without a welded seam. This makes them more durable. Industries such as oil and gas, power generation, and chemical processing value the reliability and strength of seamless steel pipes. Recent market analysis show an increasing interest in seamless pipes. Driven by demand in the energy and construction sectors, this market is projected to grow at a compounded annual growth rate (CAGR) of 6% between 2023 and 2030.
The other kind of steel pipes, welded, are not only easier to manufacture but also much cheaper. Formed by rolling and welding steel plates together, welded pipes are more affordable than their seamless counterparts, especially in higher diameters. Although recently, these pipes have been considered low pressure, their area of application has expanded to include water distribution, fencing, and even construction. Industry trends argue there is an increasing quality along with the durability of welded steel pipes due to recent advances in welding technologies.
While choosing between the two options, it is essential to take into account things like pressure limits, resistance to corrosive elements, and even the budget. Also, the standards set by American Society For Testing Materials (ASTM) can help in evaluating particular needs for a project. For example, ASTM A53 provides specification guidelines for seamless and welded pipes used in mechanical and pressure functions. With a combination of project requirements and the information provided, the most fitting option will be obtained.
What are the Mechanical Properties of Mild Steel Pipes?
- Tensile Strength: With a tensile strength of between 370 and 700 MPa, mild steel pipes possess the ability to endure significant stress without succumbing to breaking.
- Ductility: Mild steel pipes can effortlessly undergo severe ductility process, permitting complex design fabrication without any fractures.
- Hardness: Mild steel is regarded as softer relative to other metals. However, it is hard enough for most structural and mechanical applications.
- Weldability: Fabrication of structures involving mild steel pipes is simple as they can be easily welded.
Tensile Strength and Durability of Mild Steel
Depending on the chemical makeup and manufacturing processes employed, mild steel’s tensile strength is generally within the range of 400 MPa to 550 MPa. For structural components, this is an ideal material since moderate strength is desired. Its structural integrity in enduring considerable amounts of stress before any deformation occurs is one of the reasons why mild steel is popular for use in bridges, buildings and pipelines construction.
Mild steel’s impact and vibration resistance are additional factors that enhance its durability. Structures made from mild steel are best suited for industrial settings because they undergo high dynamic loading, such as shifting machine forces. Its machinability and formability also allow for easy and quick alterations, further prolonging the material’s life.
Recent studies also emphasize that coating techniques, particularly galvanization, significantly improve mild steel’s corrosion resistance, even in harsh environments. With its easy accessibility, low price, and reliable performance, mild steel remains one of the most popular and trusted materials in construction and engineering across the world.
Effect of Carbon Percentage on the Properties of Steel
Carbon percentage in steel dictates its hardness, strength, ductility, and weldability. Mild steel’s carbon content is around 0.05% to 0.25%, giving it good weldability and ductility as compared to higher carbon steels. Medium carbon steels have a carbon range of 0.3% to 0.6%, increasing strength and hardness at the cost of ductility and weldability. High Carbon Steels possess a carbon content greater than 0.6%, providing superior strength and wear resistance, making them useful for cutting tools, blades, and springs. However, brittle nature and poor weldability make high carbon steels less desirable for many applications.
Metallurgical research shows that even small changes in carbon content can have drastic changes on the steel properties. For example, carbon concentration increasing by 0.1% can increase tensile strength by up to 10%, but decrease elongation by 2-5%. This emphasizes how critical accurate carbon percentage should be managed during steel production to achieve intended mechanical properties.
In addition, modern treatments like quenching and tempering have allowed manufacturers to refine steel of different carbon contents. These treatments change the material’s microstructure, improving its hardness, toughness, and strength, which increases the usefulness of steel alloys across more industries.
Understanding Thickness and Wall Specifications
Thickness and wall specifications are particularly critical in the steel and metal sector as these focus directly on the integrity of a structure’s steel and metal wall outline as well as the material’s strength, durability, and utility for a range of applications. Take, for example, the construction of a pipeline; the wall thickness of steel tubes directly correlates with the pressure the tubes can safely endure. As per industry policies, such as ASTM and ASME, the carbon steel pipes are entitled to a minimum wall thickness of 2.11 mm up to more than 25 mm based on the nominal pipe size (NPS) and intended usage.
Improvements in fabrication technologies has enabled producers to manufacture steel with very high uniformity in thickness. Such improvements are important in sectors like construction and automotive where every inch matters. For instance, the tolerances for hot-rolled steel plates according to EN 10029 or ASTM A6 are quite generous, ranging from ±2mm to ±6mm depending on the plates’ classification and grade.
Moreover, in cost-sensitive applications, the wall specification is often related to the weight. Engineers are able to minimize the material used by optimizing wall thickness while still upholding structural strength, thus minimizing costs and environmental damage. A deep understanding of these specifications improves product efficiency, safety, durability, and performance in myriad applications.

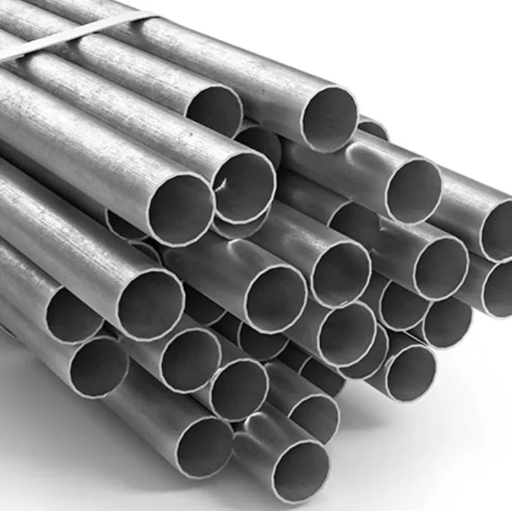

How are Steel Pipes Manufactured?
- Seamless Pipes: These types of pipes are created by heating a solid steel billet so that it becomes hollow, and then piercing it. The hollowed tube is then rolled and stretched to achieve a specific size and thickness.
- Welded Pipes: These pipes are made by rolling a flat sheet of steel, usually referred to as a plate or coil, into a cylindrical form. Afterward, the edges are welded to each other so that the pipe is complete. Welded Pipes are more economical compared to seamless pipes, but they have less precision and strength, and are therefore, not ideal for critical applications.
Overview of Seamless and Welded Pipe Production
In the context of seamless and welded pipes, the former begins with heating a solid steel billet which is then pierced. A hollow cylinder is formed afterwards which undergoes sophisticated rolling processes. Seamless pipes are preferred for critical applications because they have a higher uniformity and strength due to the nature of their production.
As for welded pipes, they take shape from steel plates or coils that are cut and rolled into a cylinder shape. The edges are then fused using different methods of welding, for instance electric resistance or submerged arc welding based on its purpose. These pipes are more economical and best suited for applications where lower strength is acceptable. In general, the manufacturing method used will vary based on the performance needs and budget parameters of a given project.
The Role of Welding in Pipe Manufacturing
In my opinion, welding stands out as one of the most important parts of the manufacturing process of pipes, as it provides strength and ensures proper joints during the fabrication process saving time and resources. In addition, it streamlines industrial processes by making pipes of different sizes and shapes. Electric resistance and submerged arc welding are useful in providing the needed performance without heavy costs, therefore it is a staple in modern pipe manufacturing processes.
Explaining Differences In Manufacturing Seamless And Welded Pipes
Slight differences are noticeable between seamless and welded pipes as a result of refinement in their different manufacturing processes. Seamless pipe production requires the solid steel billet to be extruded into a hollow shape to avoid a welded joint. Because of their structure, seamless pipes are greatly strong and resistant to pressure which makes them advantageous in critical applications such as oil and gas pipelines. In contrast, welded pipes are made by rolling a steel plate or strip into a cylindrical form and welding the edges. Even though welded pipes might have lower pressure tolerances compared to seamless pipes, they are cheaper and more versatile in size and thickness which makes them easier to use in various industries.
How to Ensure Corrosion Resistance in Steel Pipes?
- Select Corrosion Resistant Materials: Choose pipes made from stainless steel or specific alloys that resist corrosion for better performance.
- Apply Protective Coatings: Protective epoxies, polyethylene, or zinc coatings can be used to prevent corrosive substances from coming in contact with the surface of the pipe.
- Implement Cathodic Protection: Apply electrochemical methods of corrosion control for the pipe, especially when it is buried or underwater.
- Regular Maintenance and Inspections: Proactive cleaning and examination processes can identify and mitigate corrosion in its incipient stages, ensuring persistent system integrity.
- Control Environmental Factors: Reduce humidity, corrosive chemicals, and saline environments where possible.
Significance of Galvanized Steel Relating to Corrosion Resistance
Galvanized steel is among the most useful materials to mitigate corrosion in numerous situations because of the resilient zinc coating applied to it. There is a protective barrier zinc layer which prevents steel from being damaged by water, air, and other corrosive elements. Using industry data from 2023, galvanized steel had an impressive lifespan of over fifty years in temperate rural areas, reducing to twenty to twenty five years in heavily urbanized or coastal regions, indicating sharp long term value.
Recent research indicates that galvanized steel possesses lower cost maintenance over time. In one case study, for example, the use of galvanized steel in some infrastructure projects resulted in 40% fewer repairs due to corrosion in comparison to other methods. Further, new advancements in girth weld galvanization, complex alloying, and high performance coating methods have increased the sustainability of the galvanized steel even in highly corrosive marine or industrial environments. This weathering and degrading resiliency underscores the importance of galvanized steel in construction, automotive, and infrastructural industries.
The incorporation of galvanized steel contributes to sustaining structural equipment, and further, it protects the environment. Reduction of energy consumption and easier recycling galvanization provides aids in promoting eco-friendliness. These attributes make galvanized steel a strategic, environmentally friendly, and economical solution for corrosion in multiple applications.
Corrosion Resistance of Stainless Steel vs Mild Steel
Stainless steel corrosion resistance and mild steel corrosion resistance differ due to the different alloys used in each material. Stainless steel 304 and 316 grade stainless steel have chromium, which forms an oxide layer that is passive on the surface, which protects the steel from rust and corrosion. For example, 316 stainless steel is used in marine applications because it has a molybdenum content of 2-3% which is good for chloride environments. Studies show stainless steel can last decades while enduring saltwater corrosion, assuming proper maintenance.
Mild steel, on the other hand, lacks chromium and thus has a stronger susceptibility for rust when there is moisture and oxygen. This makes treatments like galvanization or painting necessary. However, these coverings may need maintenance because they can degrade with time. According to studies, untreated mild steel shows visible signs of corrosion within a couple of weeks in humid or wet environments. However, galvanized mild steel fades less quickly in those conditions lasting up to 50 years depending on the thickness of the coating and environmental conditions.
An evaluation focused on the durability aspects brings additional cost efficiency differences to light as well. Although stainless steel might require a greater initial investment, its maintenance needs and longevity provide significant savings in harsh corrosive settings. Comparatively, mild steel’s economy priced buy comes at a cost in similar settings due to constant maintenance and repair expenses.
Stainless steel and mild steel differ fundamentally in their composition, and therefore, the decision comes down to the specific requirements of the application including all considerations of upfront cost, lifespan, exposure to the environmental conditions of the materials.
Steel Pipes Maintenance Tips For Extending The Life Of Pipes
- Regular Cleaning – Routine removal of water, dirt and other debris is critical to maintaining a pipe’s structural integrity and preventing corrosion.
- Apply Protective Coatings – Apply specially formulated paints or coatings designed to protect the pipes steel from moisture and corrosive elements.
- Inspect Frequently – Schedule and conduct routine inspections to catch rust, wear and other damages early.
- Control Environmental Exposure – Limit exposure to harsh chemicals or other strong conditions like extreme weather that speed up deterioration.
- Use Corrosion Inhibitors – Utilize appropriate chemical treatments that slow or prevent the reactions that lead to rust formation.
Reference sources
-
WLD224 GTAW: (Mild Steel) Pipe I – Portland Community College – Provides educational insights into welding mild steel pipes using the gas tungsten arc welding (GTAW) process.
-
Improving Anti-Corrosion and Mechanical Properties of Mild Steel – A study discussing methods to enhance the anti-corrosion and mechanical properties of mild steel, relevant to pipe applications.
- Mild Steel Pipe Supplier In China
Frequently Asked Questions (FAQs)
Q: What is the welded pipe and seamless pipe difference?
A: Recognized by their cost effectiveness, welded pipes are produced through welding the edges of plates made from steel. They can be used in environments with low pressure, but not high. Seamless pipes are stronger than seamless ones and are designed to take high pressure and therefore are best for high pressure environment.
Q: How would one determine the right steel pipe for their project and what are the factors that need consideration?
A: Choosing the appropriate steel pipe involves checking the application’s expected pressure and temperature, pipe wall thickness, and steel grade. There is a thorough guide available that will help to understand what these factors require.
Q: What benefits does one gain from opting for steel pipes instead of PVC pipe?
A: Compared to PVC pipes, steel pipes especially mild steel pipes have much greater tensile strength and can endure greater pressure and temperature. They also have increased durability and are beneficial for numerous applications which makes them a preferred choice in most industries.
Q: Why is the grade of steel so important when choosing pipes and tubes?
A: The grade of steel will dictate the mechanical characteristics of the pipe, especially the tensile strength and its ability to withstand pressure and high temperature. Opting for the correct grade of steel by the application will make sure that the design requirements are met and that it functions under the desired conditions.
Q: What is the usage of mild steel pipes?
A: With the passage of time and technological development, mild steel pipes have acquired a wide acceptance in different sectors. The construction industry and plumbing sector makes use of oil and gas pipelines as well as structural projects. They are preferred because they manage extreme conditions of temperature and pressure.
Q: In what ways does pipe surface affect performance?
A: The surface of a pipe can affect its performance for factors like maintenance and corrosion. To enhance performance in harsh settings, high-quality ms pipes have surfaces that are treated.
