For industrial applications, ASTM A335 P22 alloy steel seamless pipes are truly the best choice. They are characterized by their strength, versatility, and capability to withstand extreme conditions, thus becoming must-have materials in power generation, petrochemical processing, and high-temperature services industries. This comprehensive guide discusses the main characteristics of ASTM A335 P22 that ensure its trustworthiness as a material, its broad use in different industries, and the critical specifications needed to confirm that it complies with both performance and safety standards. Whether you’re an engineer, project manager, or procurement specialist, this article will provide you with valuable insights on how to comprehend and utilize this outstanding alloy steel according to your particular requirements.
Understanding ASTM A335 P22 Specifications
ASTM A335 P22 is a high-temperature capable chrome-moly alloy steel. The most important specifications of P22 include:
1. Chemical Composition
P22 is composed of a specific mixture of chromium (1.90-2.60%) and molybdenum (0.87-1.13%), which not only increases the strength but also gives the steel a high resistance to corrosion and creep in elevated temperatures.
2. Mechanical Properties
- Tensile Strength: Minimum of 415 MPa (60,200 psi)
- Yield Strength: Minimum of 205 MPa (29,700 psi)
- Elongation: Minimum elongation of 30% in 2 inches, thus providing flexibility under stress
3. Temperature Resistance
The material is able to operate in environments with temperatures over 1000°F (538°C) so that it can be used in industrial boilers, heat exchangers, and power plants.
4. Manufacturing Standards
It meets ASTM A335/A335M requirements, providing the same quality of seamless ferritic alloy-steel pipes each time.
Key Takeaway: The specifications state that the alloy is highly durable, efficient, and compatible with harsh environments, which is why P22 has become the preferred material in the industry for critical applications.
Overview of ASTM A335 Standard
The ASTM A335 specification gives detailed information about the requirements of seamless ferritic alloy-steel pipes used for high-temperature service. Among the different steel grades, P22 is also mentioned, and the specification provides the details of chemical composition, mechanical properties, and manufacturing processes to ensure that the pipe meets the desired quality and performance standards. The specification is recognized and applied in industries like power generation, petroleum refining, and petrochemical where durability and heat resistance are of utmost importance.
Key Specifications of P22 Pipe
The P22 pipe, which is designated by ASTM A335, is well-known for its ability to resist heat and last long, so it is the pipe used in high-temperature applications. The most important features include:
The specifications not only highlight the P22 pipe’s reliability but also that it can meet the lofty demands of industrial environments.
Comparison with Other Grades
P22 pipes, as compared to other grades, provide an even mix of tensile strength, thermal resistance, and corrosion resistance, making them perfect for high-temperature applications.
P11 vs P22
P11 pipes have almost the same characteristics, but P22 has more strength as a result of its bigger amount of chromium and molybdenum.
P91 vs P22
P91 is stronger than P22 and withstands thermal fatigue better, but its higher price makes P22 the ideal choice for those who want to balance performance and cost-efficiency.
Industry Insight: Such characteristics make P22 a favored option all over the industrial fields.

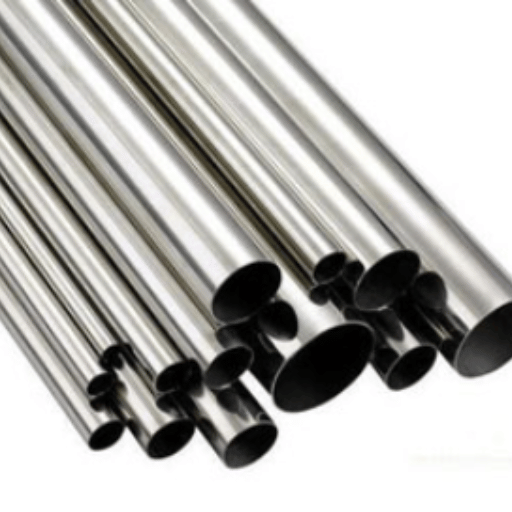

Metallurgical Properties of P22 Alloy Steel
P22 alloy steel is a low-alloy steel material with chromium (2.0-2.5%) and molybdenum (0.9-1.1%) as the main alloying elements and carbon, manganese, phosphorus, sulfur and silicon in small quantities. The combination of these elements gives the steel very high-temperature strength, superb resistance to corrosion, and better resistance to oxidation. The steel is very weldable and is designed for operation under very extreme conditions, such as high temperature and pressure. Metallurgical composition allows for use of the material in areas where thermal stability and mechanical integrity are of the utmost importance.
Composition of P22 Alloy Steel
Iron (Fe) is the major component of P22 alloy steel besides the elements that are added:
The combined effect of these contributions increases the material’s strength, corrosion resistance, and thermal stability, thus making it suitable for high-temperature and high-pressure applications.
Mechanical Properties and Tensile Strength
P22 alloy steel is a perfect choice for tough conditions because of its extraordinary mechanical properties:
- ✓ Tensile Strength: 415-585 MPa range
- ✓ Yield Strength: Minimum of 205 MPa
- ✓ Toughness: Great resistance to deformation under high stress and temperature
- ✓ Creep Resistance: Effective withstanding of chronic heating without significant degradation
These properties give the steel the ability to remain reliable and powerful in critical industrial areas during high-pressure applications.
High-Temperature Performance
P22 alloy steel displays superb performance in high-temperature areas because it can still have strong and won’t get burnt up in very harsh conditions. It is made for high-pressure and high-temperature conditions and thus, it can be used in power plants, boilers, and piping systems. The mixture of metals used in the alloy gives it the quality of thermal stability and creep resistance that are the main factors for reliable operation and long life even when the operation is done at high temperatures for a long time.

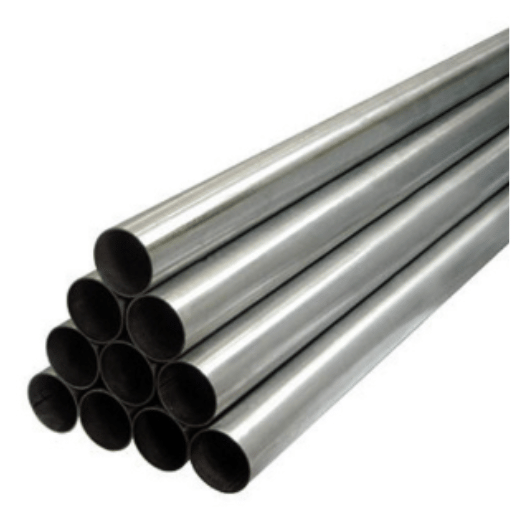

Applications of P22 Seamless Pipe
P22 seamless pipes have become a staple in industries that require strong materials with the ability to withstand very high temperatures and pressures. Their main end uses are:
1. Power Plants
Pipes are used in high pressure boilers, superheaters, and thermal exchangers mainly owing to their heat resistance and toughness.
2. Petrochemical Industry
P22 materials are preferred in both refineries and chemical plants, particularly where environments are corrosive.
3. Oil and Gas Sector
Used in the pipeline and pressure vessel installations, as well as in upstream activities—the operations are critical and hence, require P22 pipes.
4. Automotive and Machinery
Involved in the production of parts that will be subject to mechanical stress but still need to have integrity.
Industry Note: These pipes are considered the most reliable and longest-lived under extreme operating conditions.
Usage in Power Generation
Seamless pipes, due to their ability to withstand very high temperatures and pressures, are the backbone of power generation. They are employed in the manufacturing of the strongest and most reliable components for the most extreme situations, such as boilers, heat exchangers, and turbines, all thanks to their outstanding characteristics of strength, corrosion resistance, and ability to endure under such conditions. With this, energy production is assured to be very efficient and the associated risks of failures or outages are greatly reduced.
Role in Oil and Gas Industry
Seamless pipes are a must-have in oil and gas sector due to their application in transporting crude oil, natural gas, and refined products. Their excellent properties like high strength, resistance to corrosion, and capacity to endure very high temperatures and pressures make them suitable for vital applications like drilling, extraction, and pipeline systems. Seamless pipes, by providing reliable performance in extremely harsh conditions, help the oil and gas industry to be more efficient and safe.
Applications in Chemical Processing
Seamless pipes are indispensable in chemical processing due to their toughness, leak-proof design, and capability of enduring extreme temperatures and pressures. Their applications are not limited to the transport of reactive or corrosive chemicals only, but also, they are used in heat exchangers, reactors, and process piping. The resistance of seamless pipes to both stress and corrosion guarantees maximum safety and efficiency in the handling of volatile substances, so they are considered as one of the most important materials in the chemical industry.
Benefits of Using ASTM A335 P22 Seamless Pipe
✓ High-Temperature Resistance
The pipes are made to endure the hottest conditions and this is why they are highly suited for boiler and heat exchanger applications.
✓ Durability and Strength
The pipes can easily bear the highest stressed and are made from alloy steel, thus providing excellent mechanical strength.
✓ Corrosion Resistance
The combined properties of the material yield resistance to oxidation and wear in extreme environments.
✓ Versatility
Applicable to various industries, such as power generation, oil and gas, and chemical processing, among others.
✓ Cost-Effectiveness
The great lifespan and minimal maintenance of the pipes translate to lower overall costs.
Advantages of Seamless Design
Corrosion Resistance and Durability
Seamless designs provide excellent protection against corrosion owing to their even architecture, which does not include weld seams that can be the location of aging and weakening over time. This increased durability guarantees the long-term effectivity even in the toughest places, thus, they are an ideal option for the sectors that demand dependability and low maintenance.
Cost-Effectiveness in High-Temperature Applications
The uses of seamless design in high-temperature applications are best practices as they are able to endure thermal stress flawlessly without sacrificing their structural integrity. Their toughness results in repair or replacement intervals being less frequent, which in turn, lowers the overall operational costs in the long run. Moreover, the constant performance in exceedingly harsh conditions increases the total efficiency, thus giving a monetary saving solution for industries that are managing high temperatures.
Reference Sources
1. Octal Steel – ASTM A335 P22 Pipe Specification
Gives thorough specifications together with the different areas of application of the A335 P22 pipes, and emphasizes their being able to withstand very high temperatures and pressures.
Source: Octal Steel
2. U. S. Metals – ASTM A335 Grade P22 Alloy Steel Seamless Pipe
Reviews the characteristics and sectors using A335 P22 pipes as well as those belonging to the pharmaceutical, chemical, and power plant industries.
Source: U. S. Metals
3. Piyush Steel – All You Need to Know About ASTM A335 P22 Seamless Pipes
Presents the specifications, characteristics, and applications of A335 P22 seamless pipes meant for high-temperature services.
Source: Piyush Steel
Frequently Asked Questions (FAQs)
What is A335 P22 material pipe?
A335 P22 is a type of seamless ferritic alloy steel pipe that is suitable for extremely high-pressure and high-temperature mechanical processes.
What are the common uses of A335 P22 pipes?
Such pipes find their application mainly in power generation, oil refining, chemical manufacturing, and petrochemical industries.
What are the major attributes of A335 P22 material?
It possesses great tensile strength, good resistance to oxidation and chemical attack, as well as high-temperature and high-pressure endurance.
What industries mainly use A335 P22 pipes?
The power sector, plant, gas, and chemicals industries are the main ones that A335 P22 pipes are supplied to.
What standards apply to A335 P22 pipes?
Pipes made from A335 P22 comply with the requirements of ASTM A335 and ASME SA335 regulations.
Conclusion
ASTM A335 P22 alloy steel seamless pipes represent an excellent balance of performance, durability, and cost-effectiveness for high-temperature and high-pressure industrial applications. Their superior mechanical properties, corrosion resistance, and versatility across multiple industries make them an indispensable choice for engineers and project managers. Whether you’re working in power generation, petrochemical processing, oil and gas, or chemical manufacturing, P22 seamless pipes deliver the reliability and longevity your critical applications demand. Understanding the specifications, properties, and applications outlined in this guide will help you make informed decisions for your next project.
